HTM1602-10-11W-A5P | 16X2 Character MONO LCD | STN+ Gray Display with Side White Backlight 5.0V-Arduino

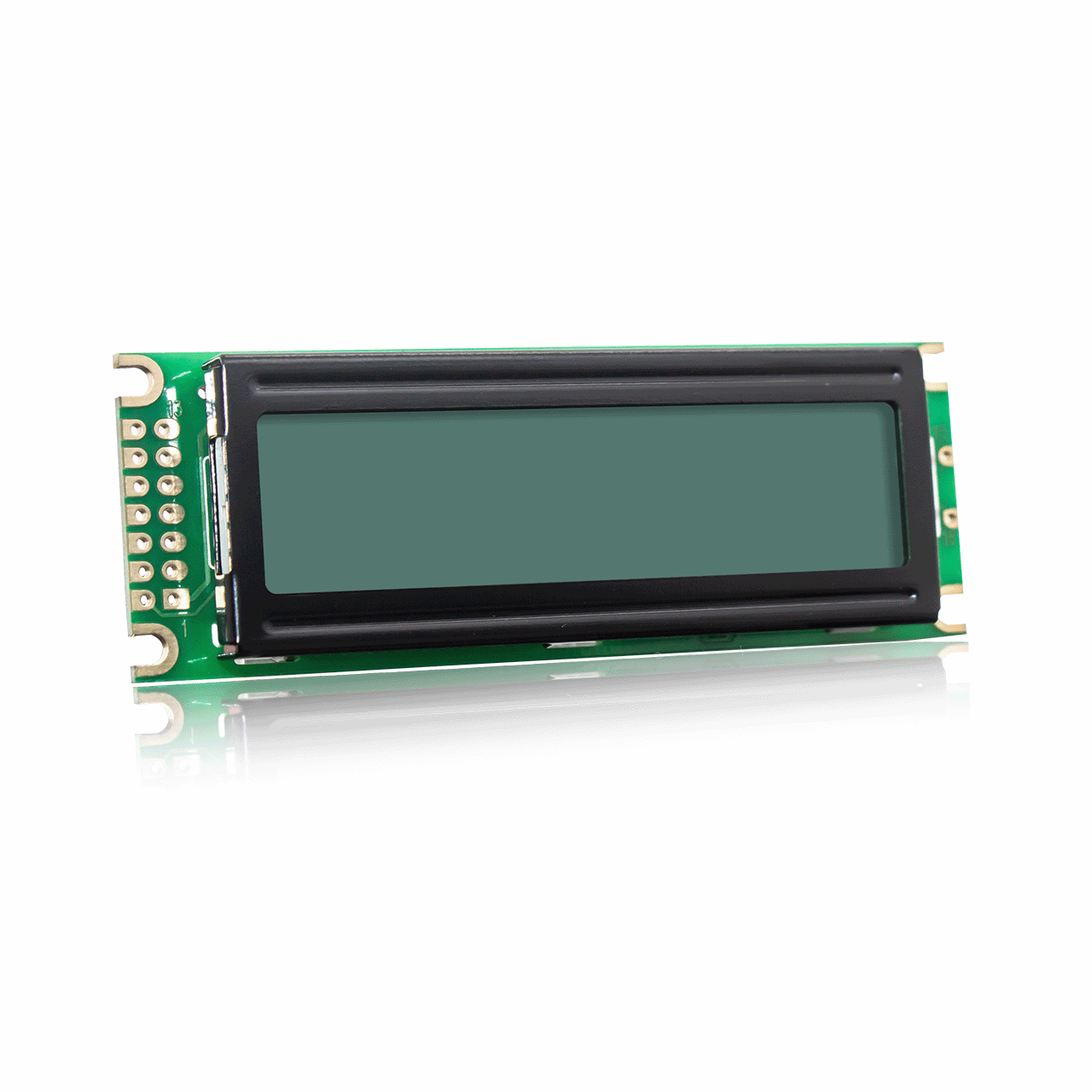

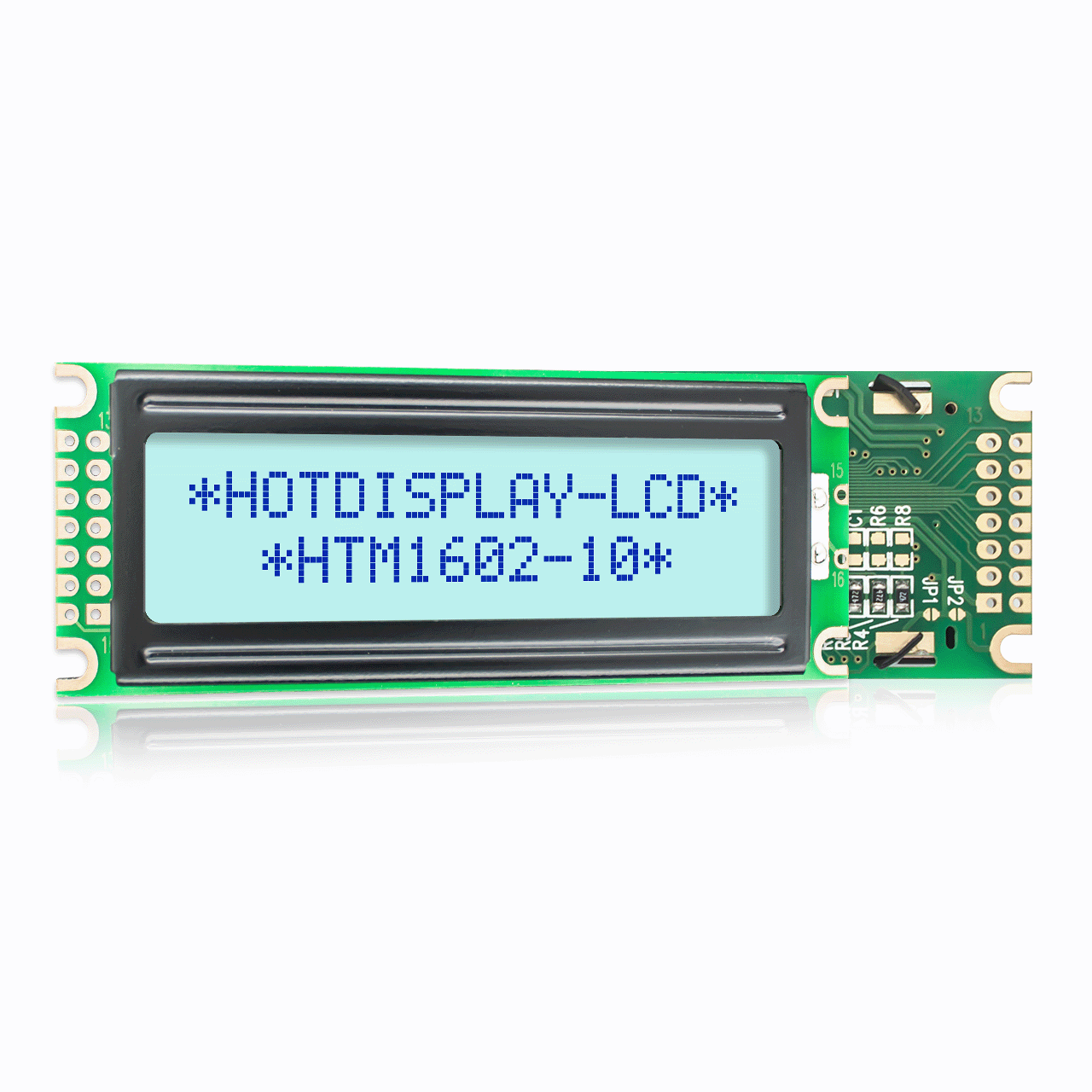

HTM1602-10-11W-A5P is a 2x16 character glass chip LCD with side white backlight. This monitor is very suitable for applications where visibility is crucial, such as industrial environments or low light conditions. The STN positive gray display screen is visible in ambient light or backlight, and the best viewing angle at 6:00 ensures that the display screen can be easily read from all angles. This product meets ROHS standards and has undergone multiple quality tests, meeting or exceeding quality standards. 8-bit parallel data communication enables this LCD to have high performance and low power consumption, as it only requires a 5V power supply voltage. The 2-line, 16 character display has a built-in font table, making it easy to start. This monitor is compatible with many development boards, including Arduino.
Connector Customization: Easily modify any connectors on your display to meet your application’s requirements. Our engineers are able to perform soldering for pin headers, boxed headers, right angle headers, and any other connectors your display may require. |

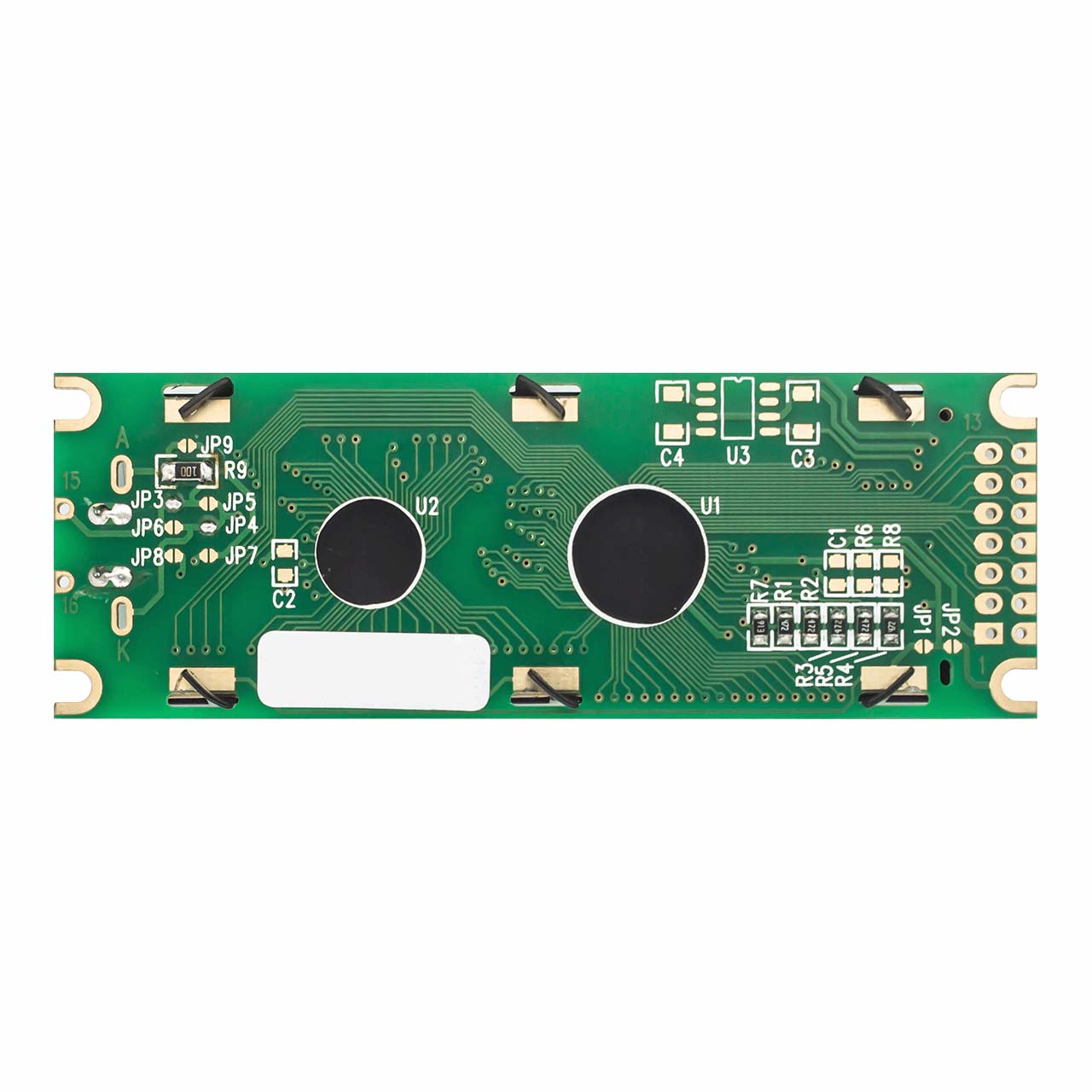

PCB Modifications: Choose from a variety of changes to the PCB's shape, size, pinout, and component layout to make it perfect for your application. |
Backlight color customization: The module backlight has a variety of combinations to choose from, without backlight or with yellow-green/blue/white/amber/red/RGB backlight options. There are 48 effects. You can click on the customization page for reference. |
Font library customization: Provides a variety of font libraries, including English/Japanese, Western Europe, Eastern Europe, Scandinavian Europe, Cyrillic (Russian), Hebrew/Arabic, etc. |
Cable Customization: Adjust the length, position, and pinout of your cables or add additional connectors. Get a cable solution that’s precisely designed to make your connections streamlined and secure. |
