  • HTM-0802B-31W-T5P-V03 | 8X2 character display | Transmissive LCD display | Side white backlight | FSTN (-) Gray LCD display Arduino display

    HOTDISPLAY HTM r0802B, 31W, T5P, V03 is an 8-character, 2-character LCD that displays black characters on a gray background. Most single-wire transmissions operate on a supply voltage of 5.0V. This is a compact LCD screen that offers you a variety of viewing experiences, best viewed at 6:00. It has a wide operating temperature range from h20°C to up to 70°C. Features a unique white backlight that improves visibility and readability in low-light environments. The LCD is specifically designed to control the ST7066U, making it compatible with various interfaces and blocks, including Arduino.


    Connector Customization:

    Easily modify any connectors on your display to meet your application’s requirements. Our engineers are able to perform soldering for pin headers, boxed headers, right angle headers, and any other connectors your display may require.

    PCB Modifications:

    Choose from a variety of changes to the PCB's shape, size, pinout, and component layout to make it perfect for your application.

    Backlight color customization:

    The module backlight has a variety of combinations to choose from, without backlight or with yellow-green/blue/white/amber/red/RGB backlight options. There are 48 effects. You can click on the customization page for reference.

    Font library customization:

    Provides a variety of font libraries, including English/Japanese, Western Europe, Eastern Europe, Scandinavian Europe, Cyrillic (Russian), Hebrew/Arabic, etc.

    Cable Customization:

    Adjust the length, position, and pinout of your cables or add additional connectors. Get a cable solution that’s precisely designed to make your connections streamlined and secure.

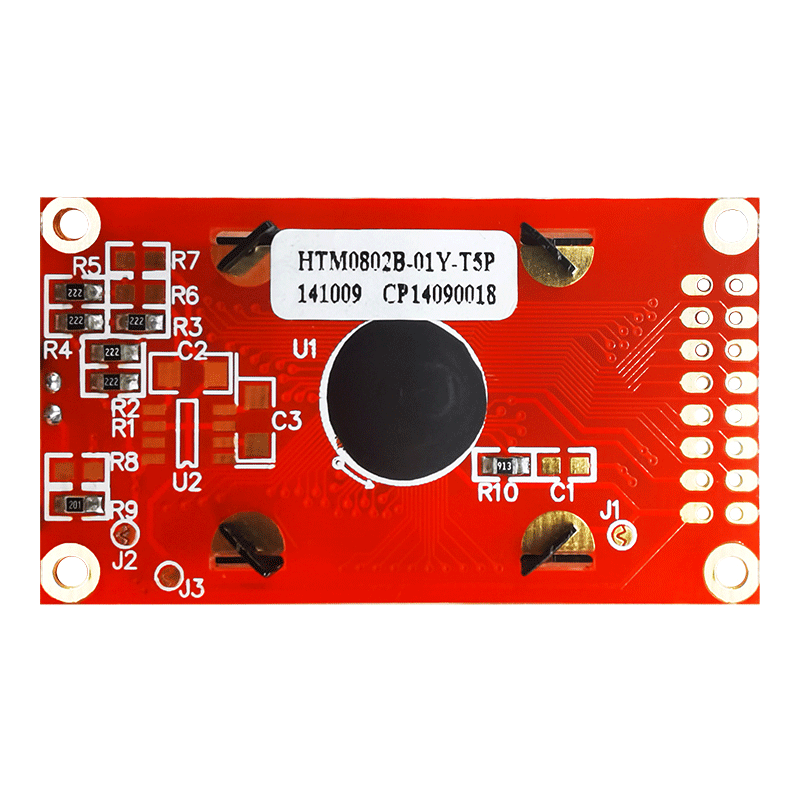

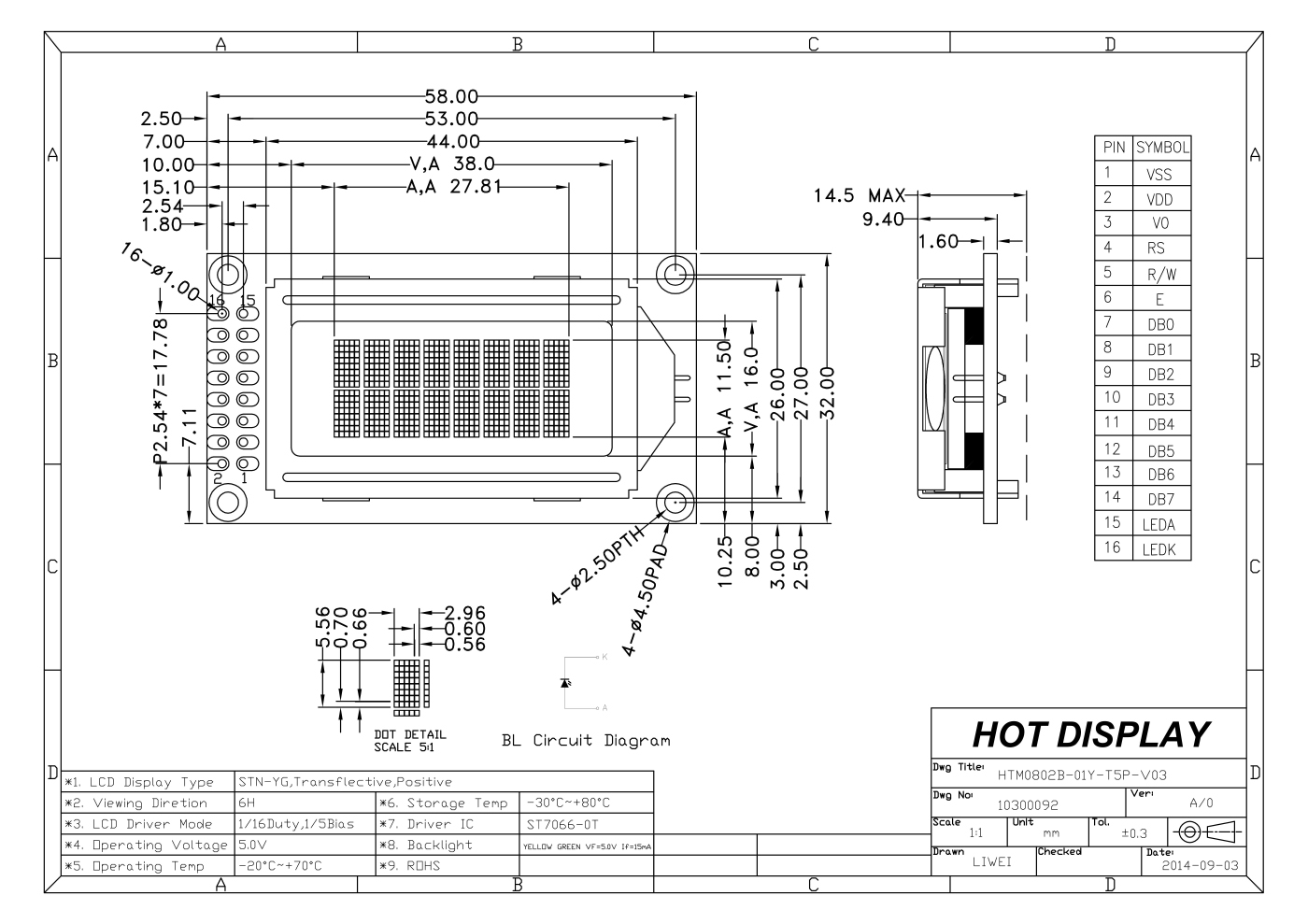

  • HTM0802B-01Y-T5P-V01_00(1).jpg

  • Item

    Parameter Description

    Unit

    name

    HTM0802-31W-A5P


    Number of dots

    8x2 Character

    dots

    Module size

    58.0 × 32.0 × 13.2 (MAX)

    mm

    VA size

    38.0W × 16.0H

    mm

    AA size

    27.81W × 11.5H

    mm

    Pixel pitch

    0.60 × 0.70

    mm

    IC

    ST7066


    voltage

    5.0V

    V

    backlight

    White


    display mode

    FSTN+


    Drive mode (Duty)

    1/16 duty cycle


    type

    Chracter Module


    characteristic

    Transflective polarizer
