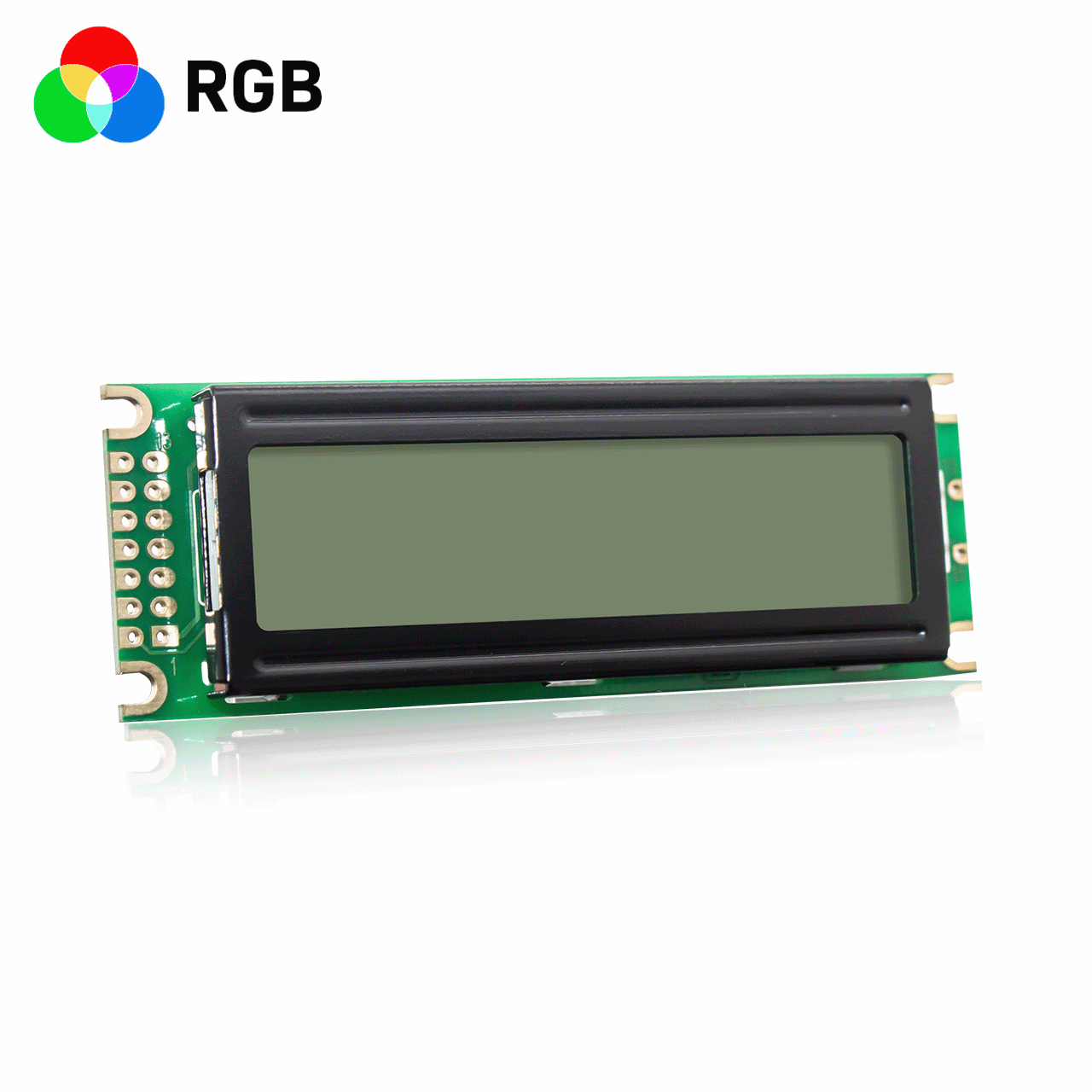

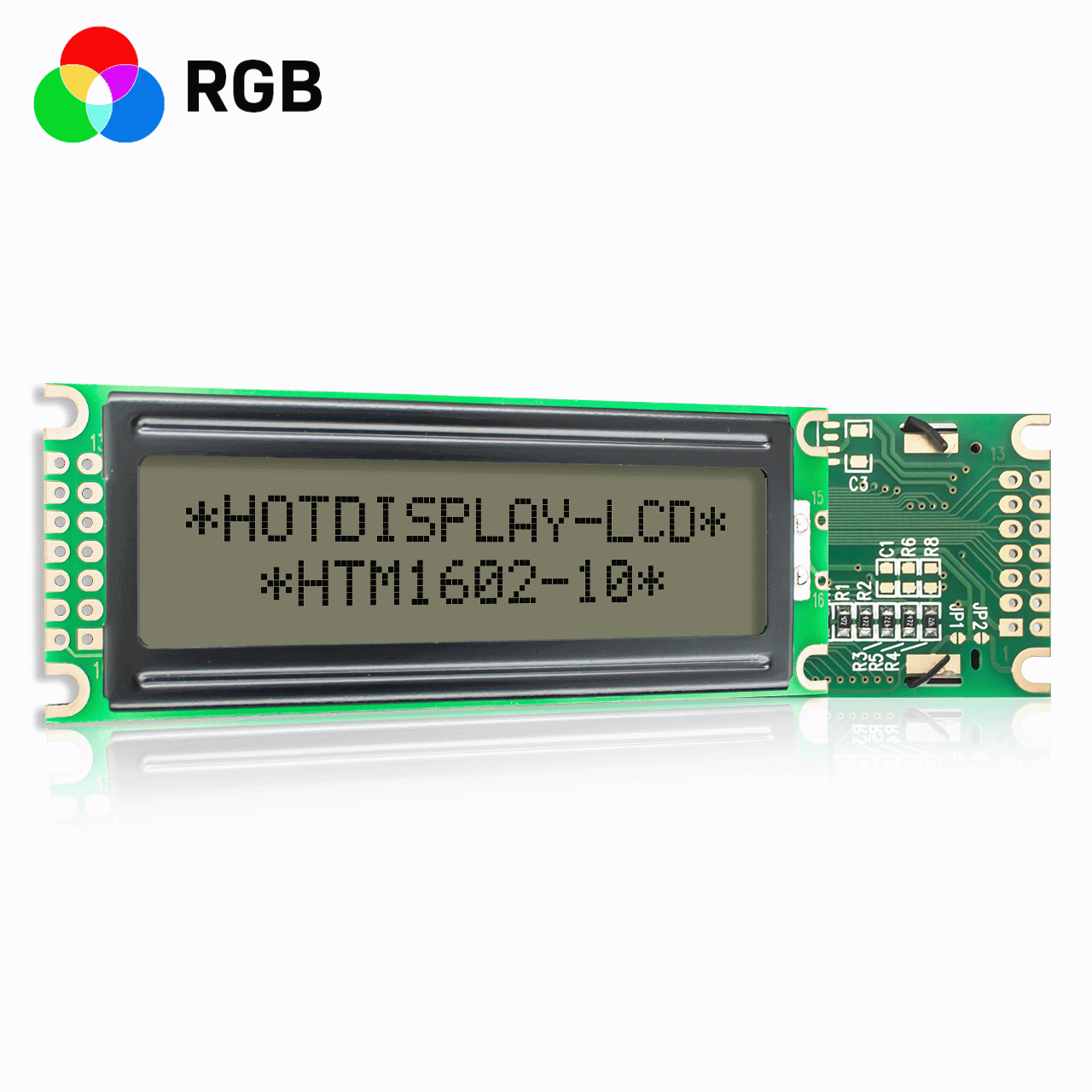

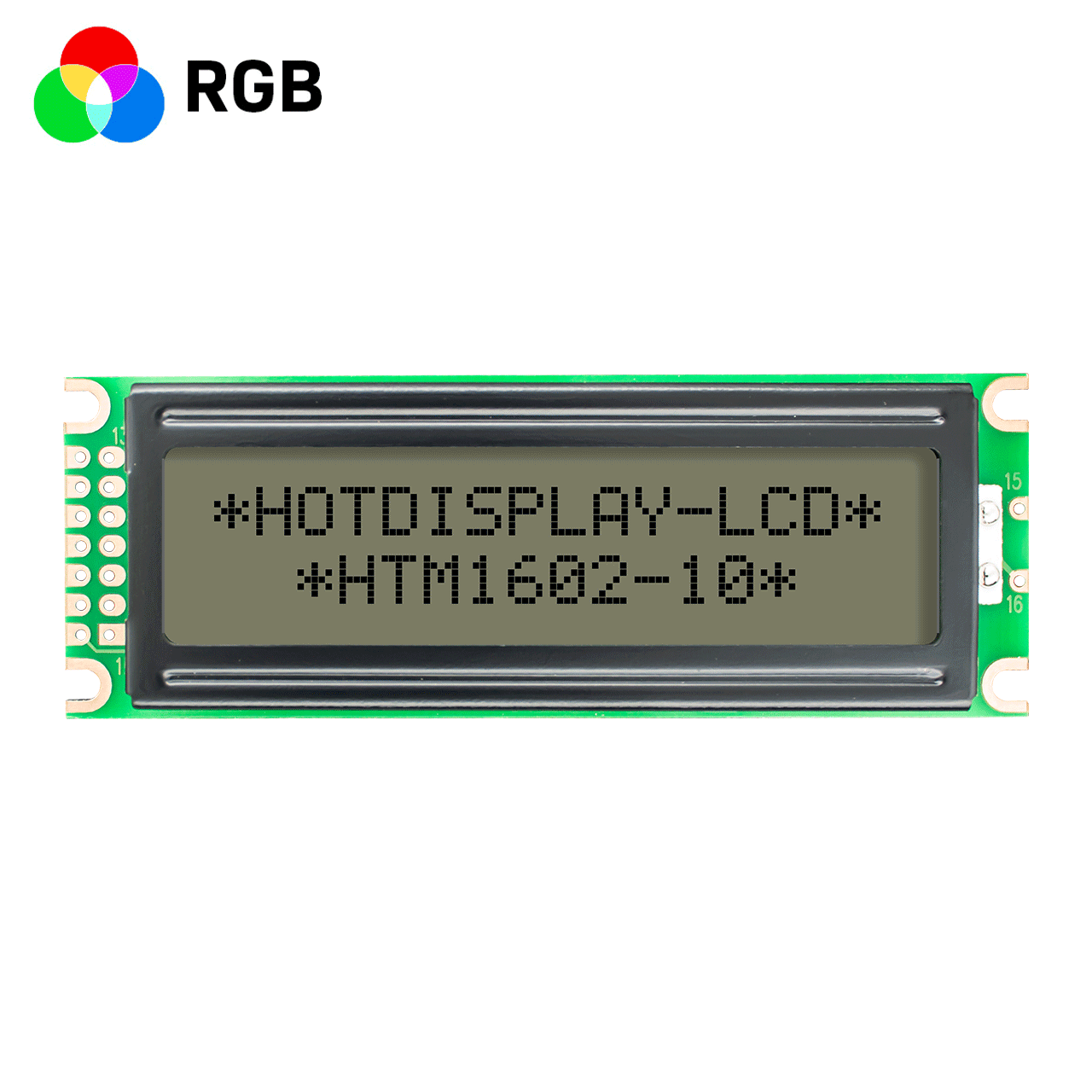

HTM1602-10-35S-A5P | 2x16 character | Serial SPI, I2C or RS232 interface | Transflective LCD display | RGB backlight | FSTN (+) front display
The HOTDISPLAY 2x16 character LCD display displays characters with dark pixels on a light background. The RGB display screen has three built-in backlight colors in each display screen, allowing you to choose from red, green, or blue backlight colors. You can also mix the intensity of these colors to create new custom colors. This reflective LCD display is visible in ambient light or backlight, while providing a wide operating temperature range of -20 to 70 degrees Celsius. This HTM1602-10-35S-A5P serial interface monitor is fully compatible with Arduino, making it a convenient choice for DIY electronic projects and educational purposes. Its optimal field of view is 6:00, working voltage is 5V, and it meets RoHS standards.
Connector Customization: Easily modify any connectors on your display to meet your application’s requirements. Our engineers are able to perform soldering for pin headers, boxed headers, right angle headers, and any other connectors your display may require. |
PCB Modifications: Choose from a variety of changes to the PCB's shape, size, pinout, and component layout to make it perfect for your application. |
Backlight color customization: The module backlight has a variety of combinations to choose from, without backlight or with yellow-green/blue/white/amber/red/RGB backlight options. There are 48 effects. You can click on the customization page for reference. |
Font library customization: Provides a variety of font libraries, including English/Japanese, Western Europe, Eastern Europe, Scandinavian Europe, Cyrillic (Russian), Hebrew/Arabic, etc. |
Cable Customization: Adjust the length, position, and pinout of your cables or add additional connectors. Get a cable solution that’s precisely designed to make your connections streamlined and secure. |
