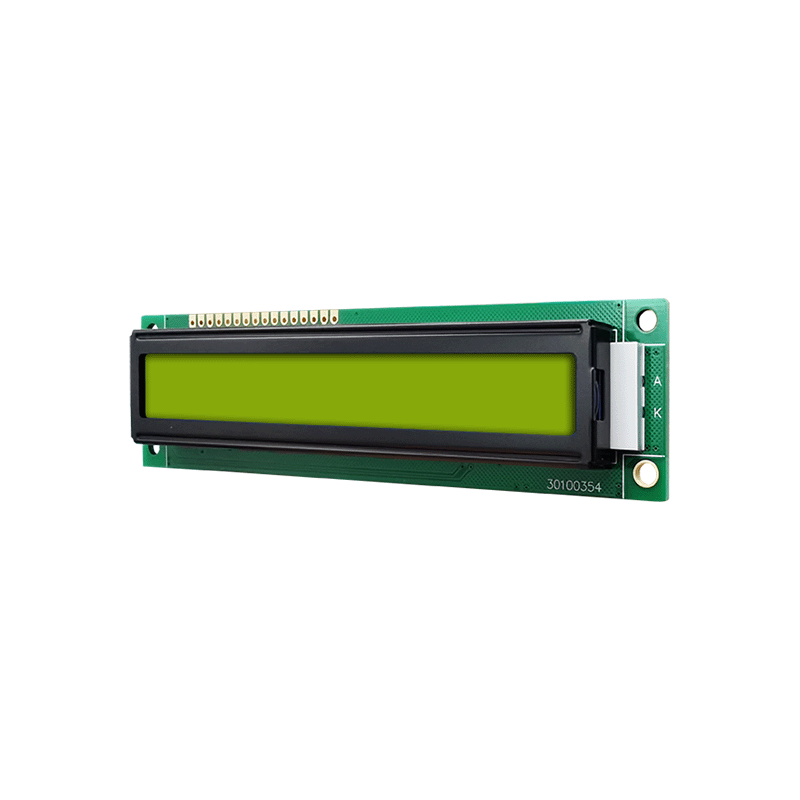

HTM1601C-01Y-A5P |1X16 Character LCD Display| STN+ Yellow/Green Background with Yellow/Green Backlight-Arduino
The HTM1601C - 01Y - A5P hot display model is a 1x16 character LCD with yellow/green display and backlight. This is a reflective LCD, meaning it can be seen in ambient light, or the backlight can be turned on in dimly lit conditions for better visibility. The display has a wide operating temperature range of -20 to 70 degrees centigrade, making it suitable for different applications.
The display characters are black pixels on a bright yellow/green background. The backlight is yellow/green LED, which provides uniformity for the entire display screen.
Connector Customization: Easily modify any connectors on your display to meet your application’s requirements. Our engineers are able to perform soldering for pin headers, boxed headers, right angle headers, and any other connectors your display may require. |
PCB Modifications: Choose from a variety of changes to the PCB's shape, size, pinout, and component layout to make it perfect for your application. |
Backlight color customization: The module backlight has a variety of combinations to choose from, without backlight or with yellow-green/blue/white/amber/red/RGB backlight options. There are 48 effects. You can click on the customization page for reference. |
Font library customization: Provides a variety of font libraries, including English/Japanese, Western Europe, Eastern Europe, Scandinavian Europe, Cyrillic (Russian), Hebrew/Arabic, etc. |
Cable Customization: Adjust the length, position, and pinout of your cables or add additional connectors. Get a cable solution that’s precisely designed to make your connections streamlined and secure. |
