4x20 字符 LCD | DSTN- 单色显示屏 |带白色背光 | 黑底白字 | 5.0V | Arduino

4x20 字符 LCD | DSTN- 单色显示屏 |带白色背光 | 黑底白字 | 5.0V | Arduino | st7066u

▶ 型号: HTM-2004-5-41W-A5P

▶ 类型：标准COB字符液晶模组
▶ 显示内容：20x4字符

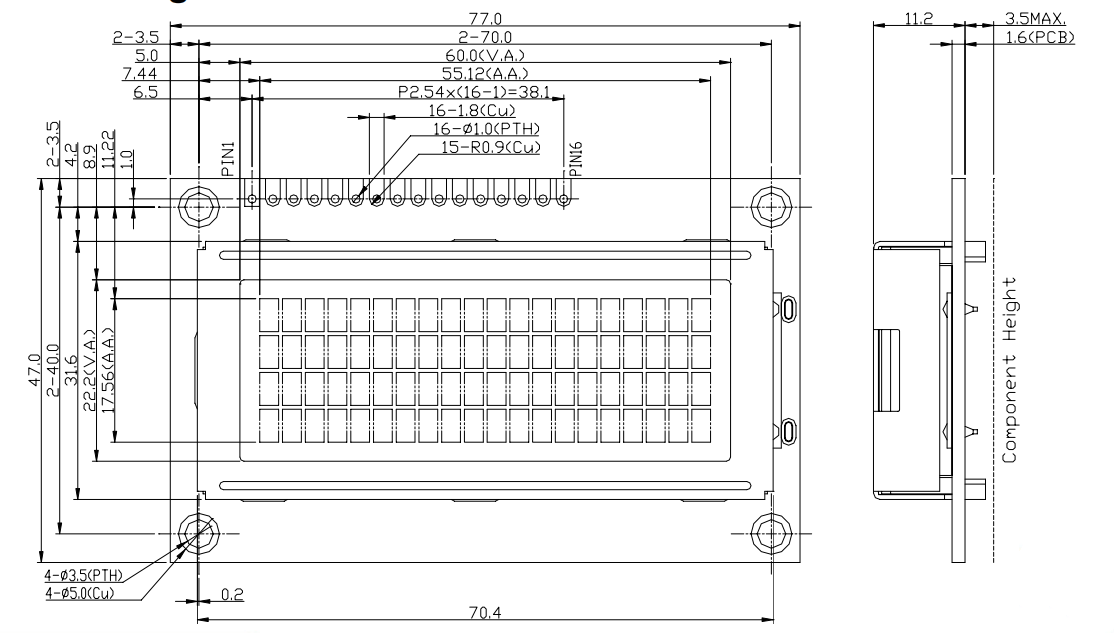

▶ 外形尺寸(mm) ：77.0x47.0x14.7
▶ VA尺寸(mm)：60.0x22.2
▶ AA尺寸(mm) ：55.12x17.56
▶ 点间距mm：0.47 x 0.51
▶ 产品应用：工业控制
▶ 视角：6H
▶ 背光类型：白光
▶ PIN数：16PIN
▶ 接口方式：MCU
▶ 特殊说明：抗静电ESD 8KV
▶ 工作温度：-20~70℃
▶ 供电电压：5.0V
▶ 驱动芯片：ST7066U

产品咨询数据下载索取Demo Code
- 运输
- 付款
- 税款
- 保证
- 退回
- 停产
运输

国内快递我司与顺丰有合作,国外和DHL进行合作,您可以我们联系咨询运费以及重量得到最新的报价。

付款

不支持线上付款，可通过对公账户转账,若开增值税票请联系我司销售人员获取对公账户.

税款

此网站出售的所有产品都不含税,若需要增值税票请与我司销售人员联系线下购买。

保证

此网站出售的所有产品质保一年,若因客户使用不当造成的损坏免费维修,收取材料成本费用。

退回

质保期内的产品可退回维修或换新, 退回前请先与我司销售人员联系确认退货原因后再退回。

停产

我们承诺长期生产此网站销售的所有产品,若IC或面板停产,将尽量使用兼容物料替换。

上一个 返回 下一个

HTM-2004-5-41W-A5P | 4x20 字符 LCD | DSTN- 单色显示屏 |带白色背光 | 黑底白字 | 5.0V | Arduino | st7066u

所介绍的 20x4 字符 LCD 显示器具有白色像素，底部有黑色标记。这款 LCD 显示屏可在环境光条件下或带有额外光线的低光条件下清晰显示。我们提供的工作温度范围为 -20 至 70 摄氏度，下午 6:00 可见。该设备具有 5V 电源电压，控制芯片是 ST7066U，与流行的开发平台（如 Arduino）兼容。

连接器定制：轻松修改显示器上的任何连接器以满足您的应用程序的要求。我们的工程师能够对排针、盒装接头、直角接头以及您的显示器可能需要的任何其他连接器进行焊接。

PCB修改：从 PCB 的形状、尺寸、引脚排列和元件布局等多种更改中进行选择，使其完美适合您的应用。

背光颜色定制：模组背光有多种组合可选不带背光或带黄绿色 / 蓝色 / 白色 / 琥珀色 / 红色 / RGB背光选择达48种效果，可点开定制页面参考。

字库定制：提供多种字体库，包括英语/日语、西欧、东欧、斯堪的纳维亚欧洲、西里尔语（俄语）、希伯来语/阿拉伯语等。

线缆定制:调整电缆的长度、位置和引脚排列或添加其他连接器。获得经过精确设计的电缆解决方案，使您的连接变得精简且安全。

项目	参数描述	单位
名称	HTM-2004-5-41W-A5P
点阵数	20字 × 4行	dots
模组尺寸	77.0 × 47.0 × 14.7 (MAX)	mm
可视(VA)区域	60.0（W） × 22.2（H）	mm
有效(AA)区域	55.12（W） × 17.56（H）	mm
点(像素)间距	0.47 × 0.51mm	mm
IC	ST7066U driver chip
电源电压	5.0V	V
背部灯光	白色背光
显示模式	DFSTN-
驱动方式(Duty)	1/16 duty cycle
类型	字符 LCD
特性	半透反射偏光片

搜索关键字：20x4 LCD 显示屏, 20 X 4 显示屏, 单色 LCD 显示屏, 透反射显示屏, Adruino,DSTN

文件名称	更新日期	大小
HTM-2004-5-41W-A5P	2024-04-29	212.22KB
