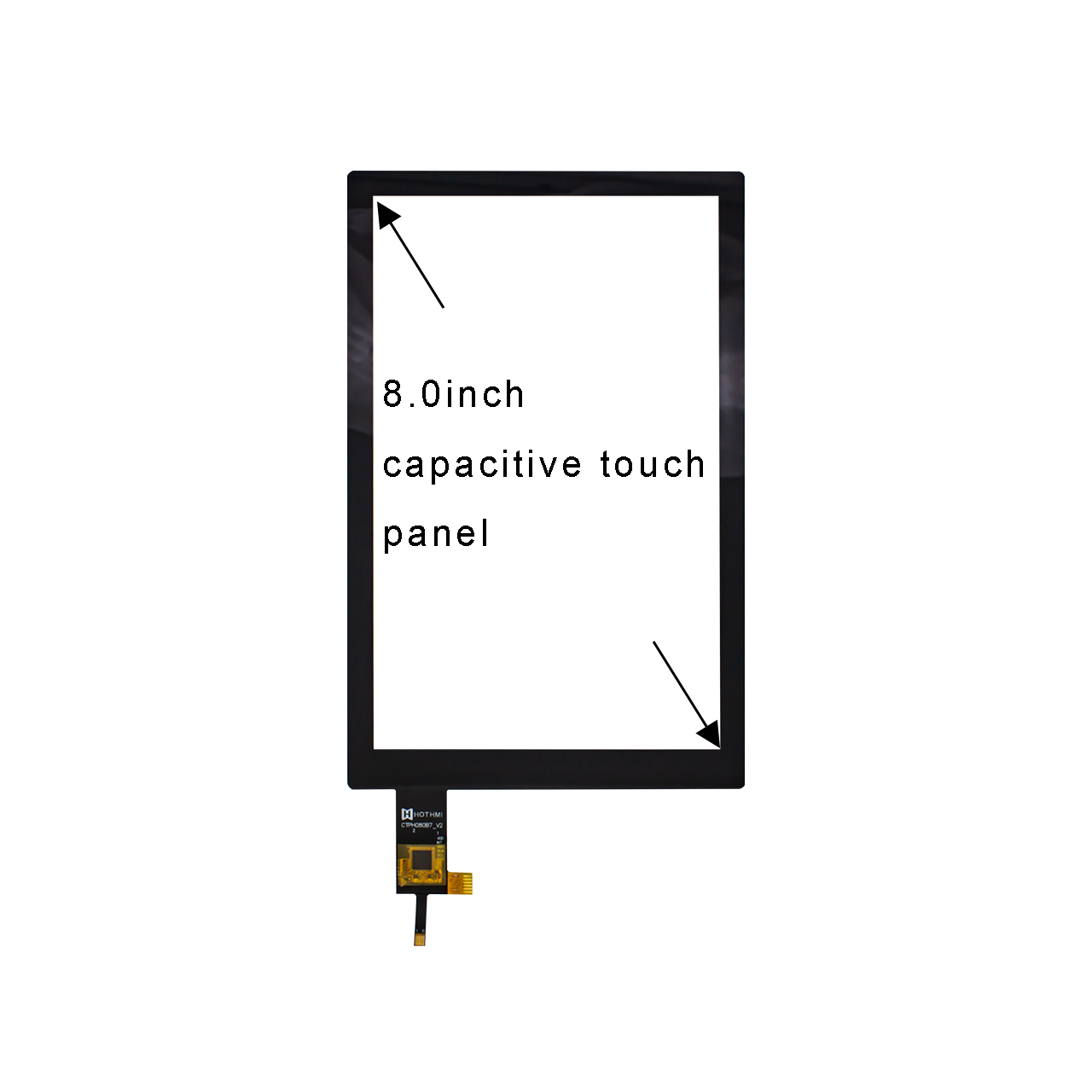

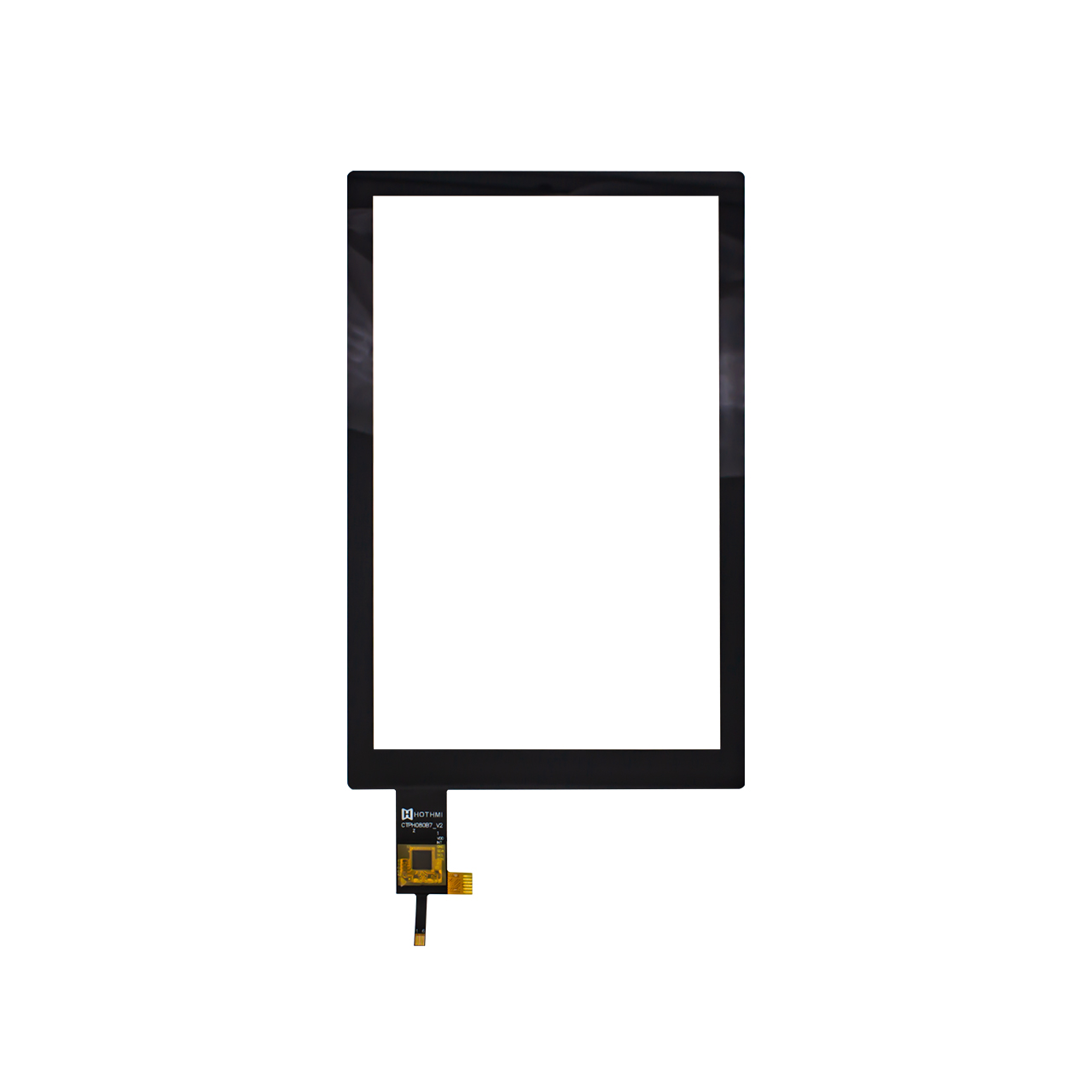

8 Inch Capacitive Touch Screen - GT911Driver IC - I2C Interface CTP

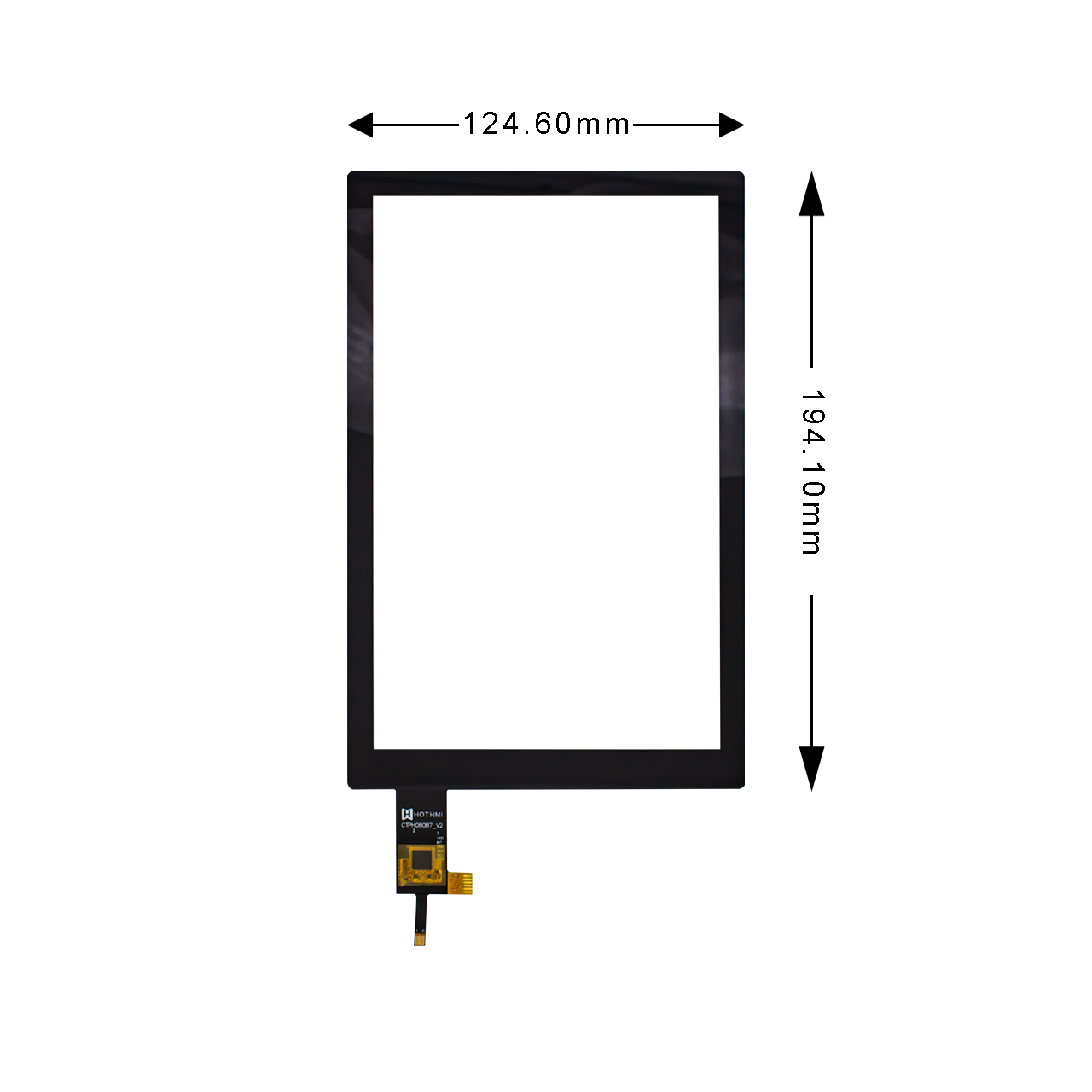

Bring an excellent touch experience to your 8.0-inch series LCD screen! The size of this 8.0-inch PCAP cover is customized for the user's product structure. The large cover, which is slightly larger than the 8.0-inch standard TFT size, makes the structure more compatible with the device. Users can also selectively print customized colors, patterns, and panels or panels with holes on the surface. This touch screen and TFT display can choose optical bonding or frame lamination binding process.
The G+G (double glass) structure of this 8.0-inch PCAP ensures durability and 85% high transmittance, the picture is transparent and bright, and the overall power consumption is optimized. Equipped with GT911 chip, it achieves smooth 5-point touch response, and the I²C interface is stable and reliable. In terms of connection, the FPC of this touch screen comes with a 6PIN connector. Users can easily assemble and disassemble the touch panel and TFT display, and can also choose FFCs of different lengths for connection according to the actual situation of the display and the main control board. The flexible design is full of creativity.
We provide a full range of customized services: from interface definition, connection method (plug/weld/connector), process structure (G+G/G+FF/G+F/P+G/P+F), to cover shape (size, 2.5D fillet, etc.), hardness level (3H/6H/7H/9H) and surface coating (AF/AG/AR), and even designated brand cover glass (such as Panda, Corning Gorilla), all can be realized on demand.
Perfect partner recommendation: 8-inch standard TFT LCD display TFT-H080B7HDINV6N30, if the user does not have the ability? Don't worry, we provide you with a version with touch function and optical bonding: TFT-H080B7HDINV5C30. All series are RoHS certified and reliable in quality.
