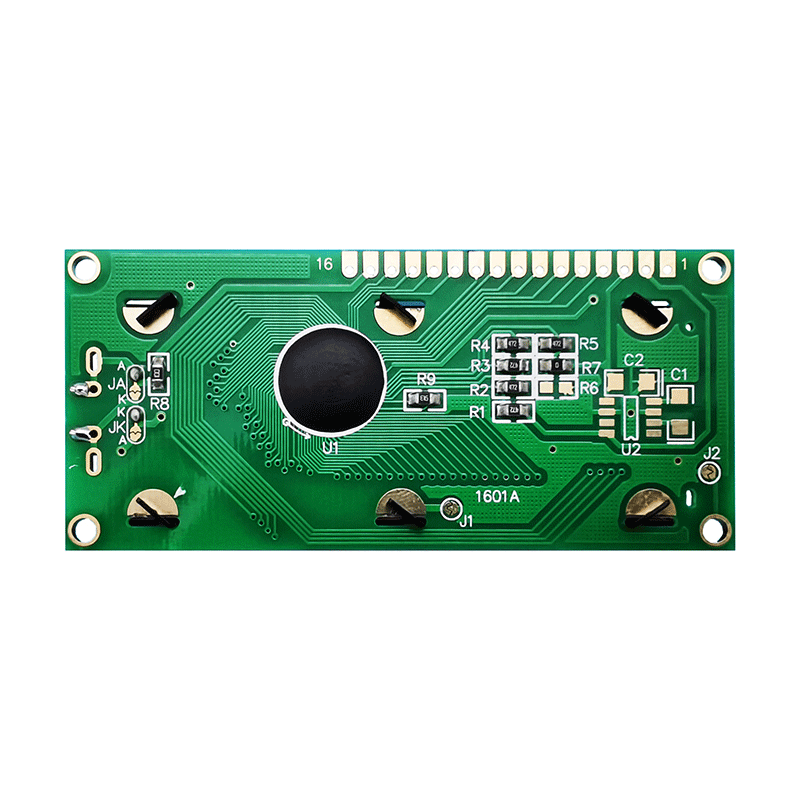

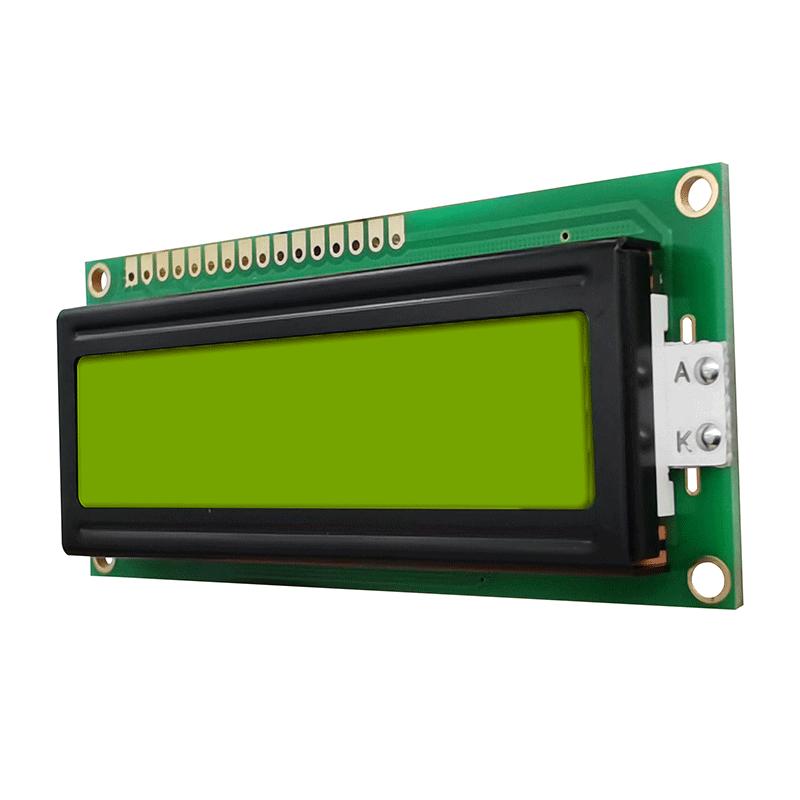

  • HTM-1601A-31W-A5P | 1x16 Character Display | Reflective LCD  | STN (+) Positive Gray Display | Arduino display

    For those seeking a dependable and user-friendly 16-character, single-row LCD, the HOTDISPLAY HTM-1601A-31W-A5P stands out as an excellent choice. This high-quality display is ideal for applications where a backlight is unnecessary. Operating at a 5V supply voltage, it seamlessly integrates with Arduino/C8051 and other similar boards and microcontrollers. The reflective, monochrome display ensures flawless performance with C, C++, and Python, supporting parallel communication. With its 16-pin standard LCD configuration, this display offers a wide operating temperature range and is compliant with RoHS standards.


    Connector Customization:

    Easily modify any connectors on your display to meet your application’s requirements. Our engineers are able to perform soldering for pin headers, boxed headers, right angle headers, and any other connectors your display may require.

    PCB Modifications:

    Choose from a variety of changes to the PCB's shape, size, pinout, and component layout to make it perfect for your application.

    Backlight color customization:

    The module backlight has a variety of combinations to choose from, without backlight or with yellow-green/blue/white/amber/red/RGB backlight options. There are 48 effects. You can click on the customization page for reference.

    Font library customization:

    Provides a variety of font libraries, including English/Japanese, Western Europe, Eastern Europe, Scandinavian Europe, Cyrillic (Russian), Hebrew/Arabic, etc.

    Cable Customization:

    Adjust the length, position, and pinout of your cables or add additional connectors. Get a cable solution that’s precisely designed to make your connections streamlined and secure.

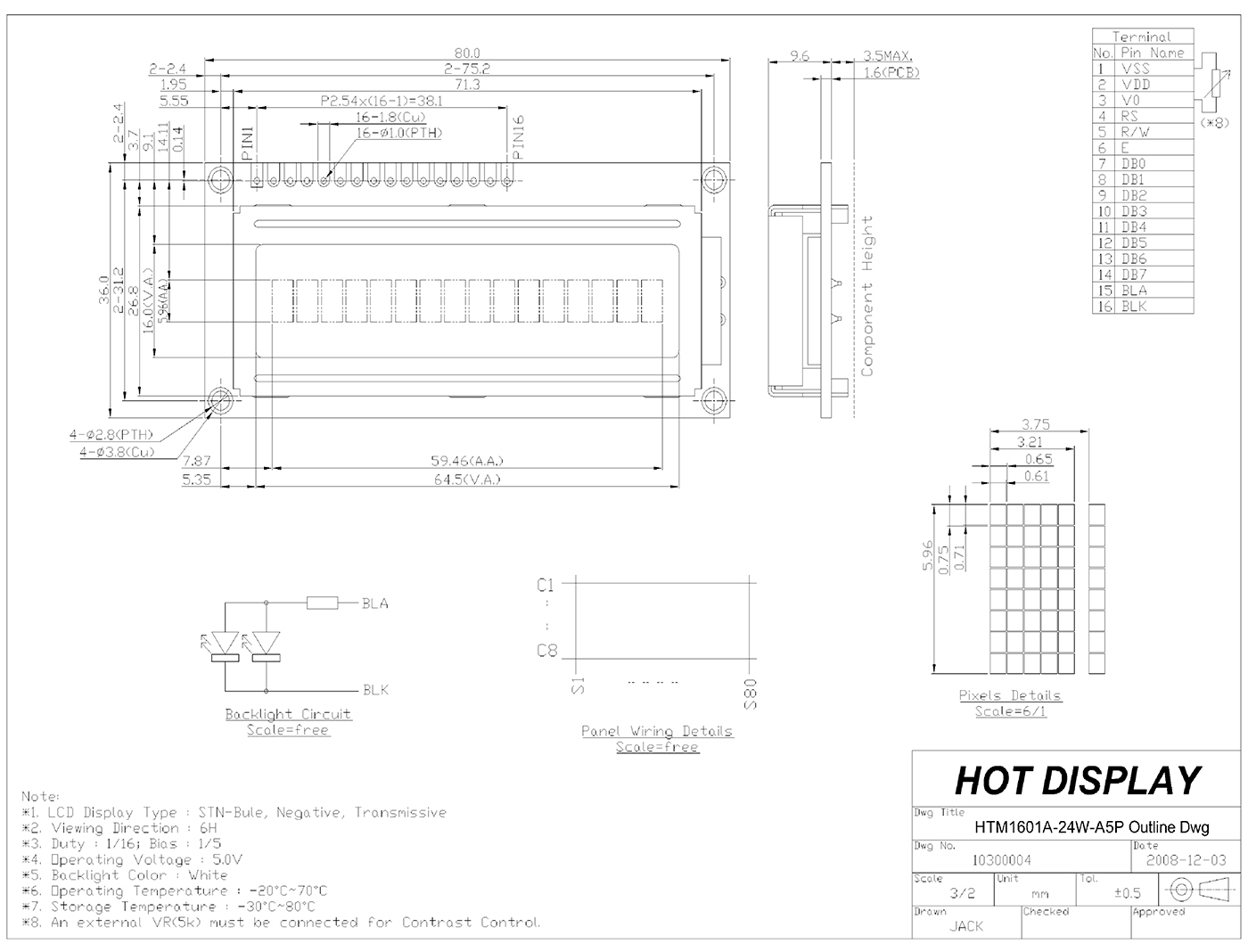

  • HTM1601A_04.jpg

  • item

    Parameter Description

    unit

    name

    HTM-1601A-31W-A5P


    Number of dots

    16x1 character

    dots

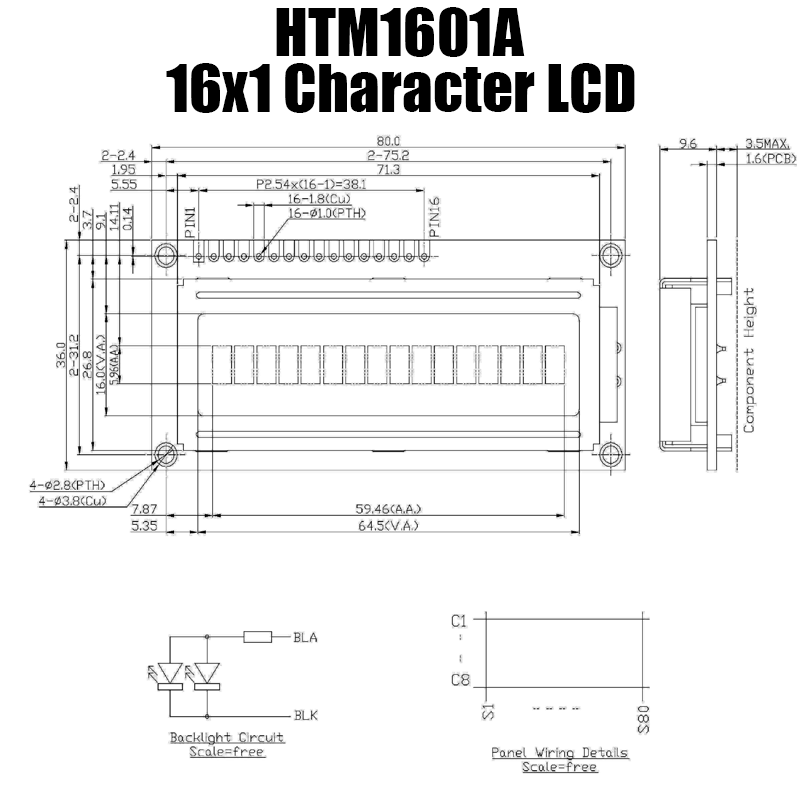

    Module size

    80.0x36.0x13.1 (MAX)

    mm

    VA size

    65.4W × 16.0H

    mm

    AA size

    59.46W × 5.96H

    mm

    Pixel pitch

    0.65 × 0.75

    mm

    IC

    ST7066


    voltage

    5.0V

    V

    backlight

    White light


    display mode

    FSTN+


    Drive mode (Duty)

    1/16 duty cycle


    type

    Character Module


    characteristic

    Transflective polarizer




    Search keywordlcd 16x1, lcd 16 x 1, 16x1 lcd, 16 x 1 lcd
