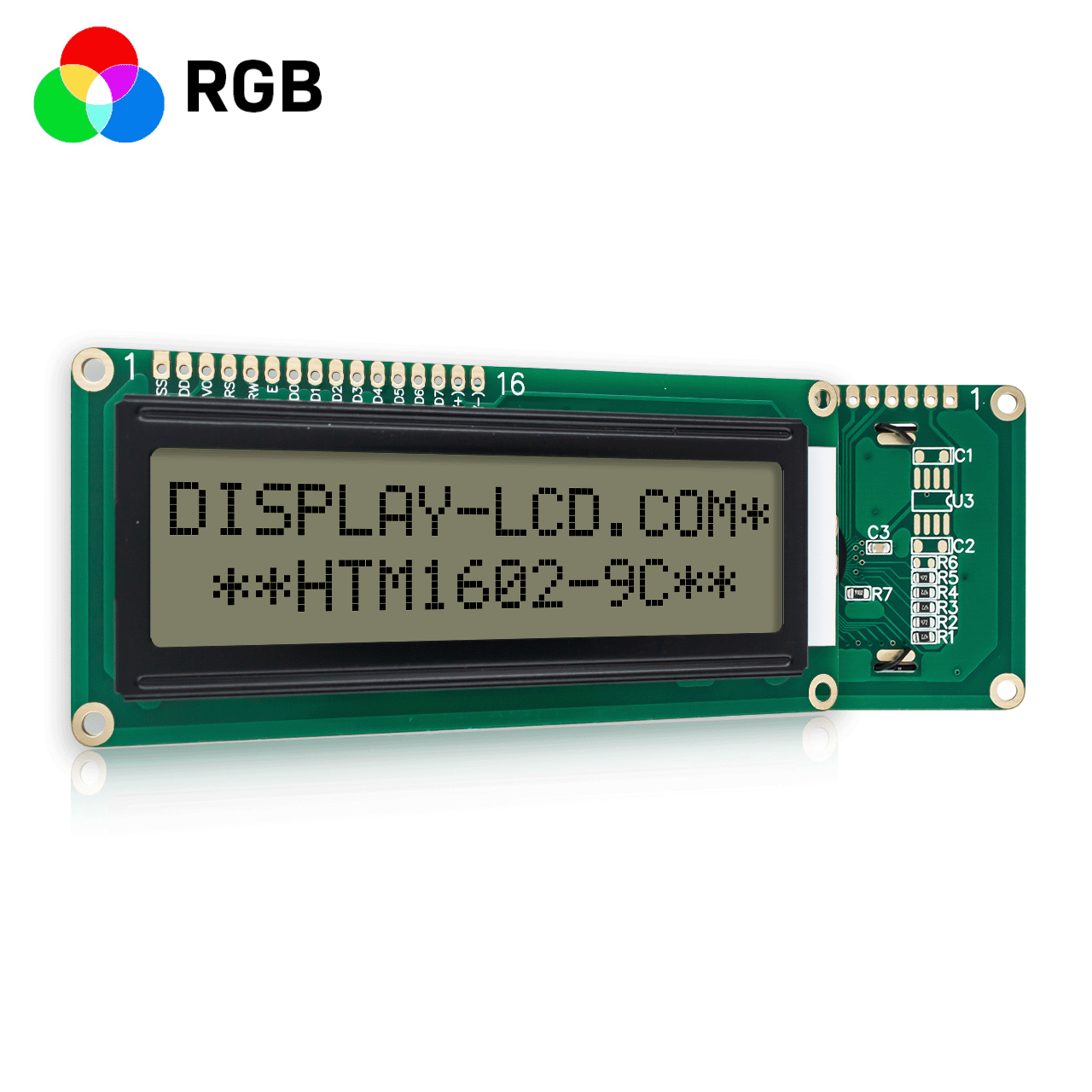

HTM1602-9C-35S-A5P | 2x16 Character Display | Transflective LCD | RGB LED Backlight | FSTN (+) Positive Display
The HOTHMI 2x16 LCD display can display up to 32 characters, divided into two lines, each displaying 16 dark pixel characters on a light gray background. The RGB display screen has three built-in backlight colors in each display screen, allowing you to choose from red, green, or blue backlight colors. You can also mix the intensity of these colors to create new custom colors.
This reflective LCD display ensures excellent visibility in ambient or low light conditions through built-in LED backlighting. It has a wide operating temperature range of -20 to 70 degrees Celsius. The optimal view for this Arduino compatible HTM1602-9C-35S-A5P monitor is 12:00. The monitor operates at a 5V power supply voltage and complies with RoHS standards.
Connector Customization: Easily modify any connectors on your display to meet your application’s requirements. Our engineers are able to perform soldering for pin headers, boxed headers, right angle headers, and any other connectors your display may require. |
PCB Modifications: Choose from a variety of changes to the PCB's shape, size, pinout, and component layout to make it perfect for your application. |
Backlight color customization: The module backlight has a variety of combinations to choose from, without backlight or with yellow-green/blue/white/amber/red/RGB backlight options. There are 48 effects. You can click on the customization page for reference. |
Font library customization: Provides a variety of font libraries, including English/Japanese, Western Europe, Eastern Europe, Scandinavian Europe, Cyrillic (Russian), Hebrew/Arabic, etc. |
Cable Customization: Adjust the length, position, and pinout of your cables or add additional connectors. Get a cable solution that’s precisely designed to make your connections streamlined and secure. |
