HTM-0802B-11Y-T5P | 8X2 character display | Transmissive LCD display | Side yellow-green backlight | STN+ gray LCD display Arduino display

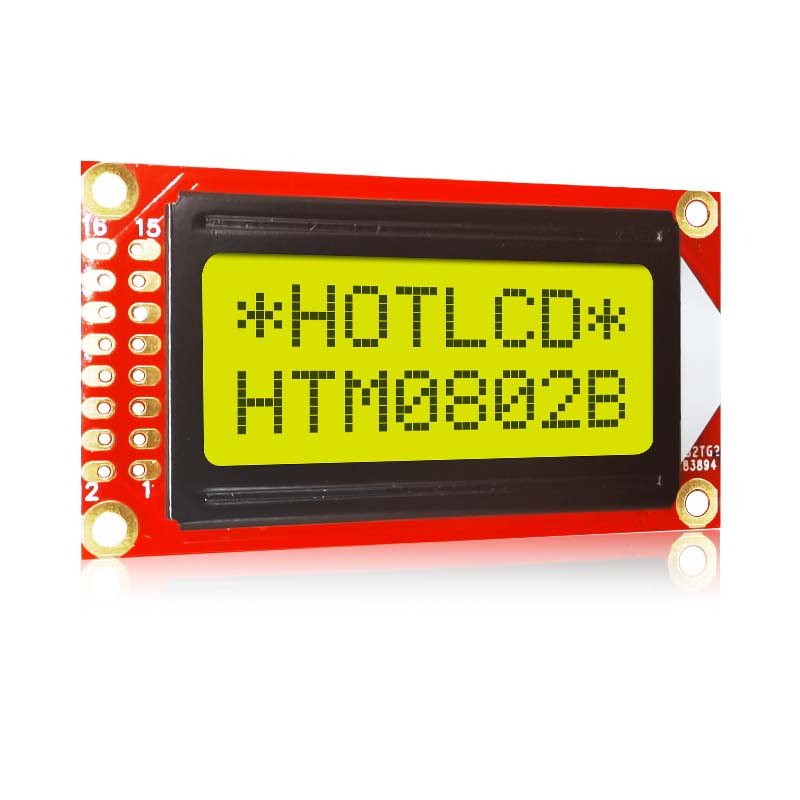

Hotdisplay htm-0802b-11y-t5p is an 8-character LCD screen, 2 character lines with black characters on a yellow-green background. This single-line transmissive display works with a power supply voltage of 5.0 v. A compact design with a yellow-green LCD screen gives you the best viewing experience with an optimal viewing orientation of 6: 00. It operates over a wide temperature range from -20 °C to 70 °C. it features a unique yellow green side backlight that improves visibility and legibility in low-lighting environments. LCD display with integrated st7066u controller, ensuring a high level of compatibility with many interfaces and development cards such as arduino
Connector Customization: Easily modify any connectors on your display to meet your application’s requirements. Our engineers are able to perform soldering for pin headers, boxed headers, right angle headers, and any other connectors your display may require. |
PCB Modifications: Choose from a variety of changes to the PCB's shape, size, pinout, and component layout to make it perfect for your application. |
Backlight color customization: The module backlight has a variety of combinations to choose from, without backlight or with yellow-green/blue/white/amber/red/RGB backlight options. There are 48 effects. You can click on the customization page for reference. |
Font library customization: Provides a variety of font libraries, including English/Japanese, Western Europe, Eastern Europe, Scandinavian Europe, Cyrillic (Russian), Hebrew/Arabic, etc. |
Cable Customization: Adjust the length, position, and pinout of your cables or add additional connectors. Get a cable solution that’s precisely designed to make your connections streamlined and secure. |
