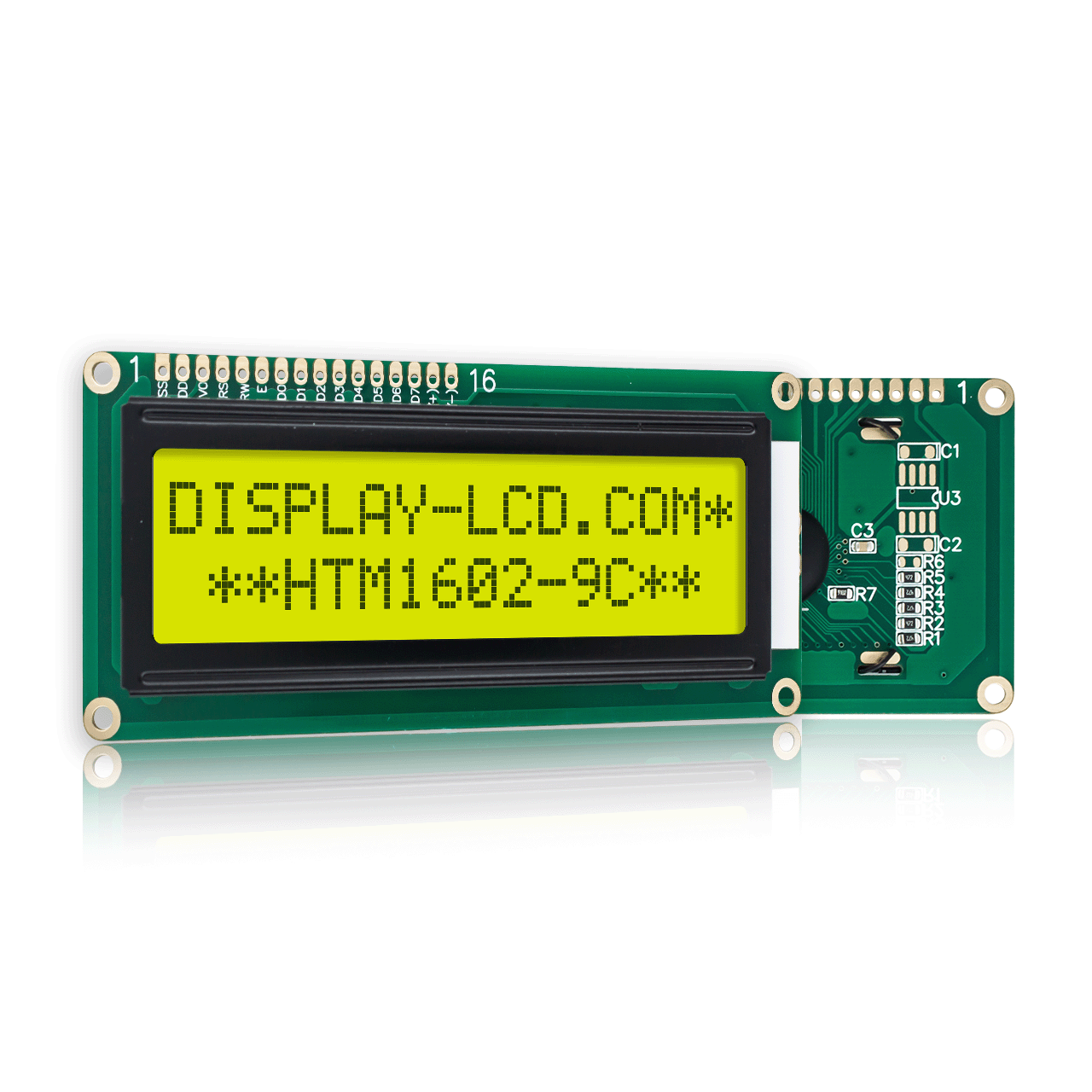

HTM-1602-9C-11Y-A5P-V03 display | 16x2 character | transmissive LCD display | side yellow-green LED backlight | STN+ yellow-green display
This 16x2 character LCD displays bright black pixels on a yellow-green background. Transmissive display mode features built-in LED backlighting for optimal visibility in low-light conditions. This HTM-1602-9C-11Y-A5P-V03 monitor features an optimal viewing angle of 12:00, a wide operating temperature range of -20 to 70 degrees Celsius, and operates on a 5V supply voltage. This Arduino-compatible monitor comes with an ST7066U controller, providing a great viewing experience and performance at an affordable price.
Connector Customization: Easily modify any connectors on your display to meet your application’s requirements. Our engineers are able to perform soldering for pin headers, boxed headers, right angle headers, and any other connectors your display may require. |
PCB Modifications: Choose from a variety of changes to the PCB's shape, size, pinout, and component layout to make it perfect for your application. |
Backlight color customization: The module backlight has a variety of combinations to choose from, without backlight or with yellow-green/blue/white/amber/red/RGB backlight options. There are 48 effects. You can click on the customization page for reference. |
Font library customization: Provides a variety of font libraries, including English/Japanese, Western Europe, Eastern Europe, Scandinavian Europe, Cyrillic (Russian), Hebrew/Arabic, etc. |
Cable Customization: Adjust the length, position, and pinout of your cables or add additional connectors. Get a cable solution that’s precisely designed to make your connections streamlined and secure. |
