HTM1602-9C-11W-A5P | 16x2 LCD Character Display | Transflective LCD | Side White LED Backlight | STN (+) Positive Gray Display

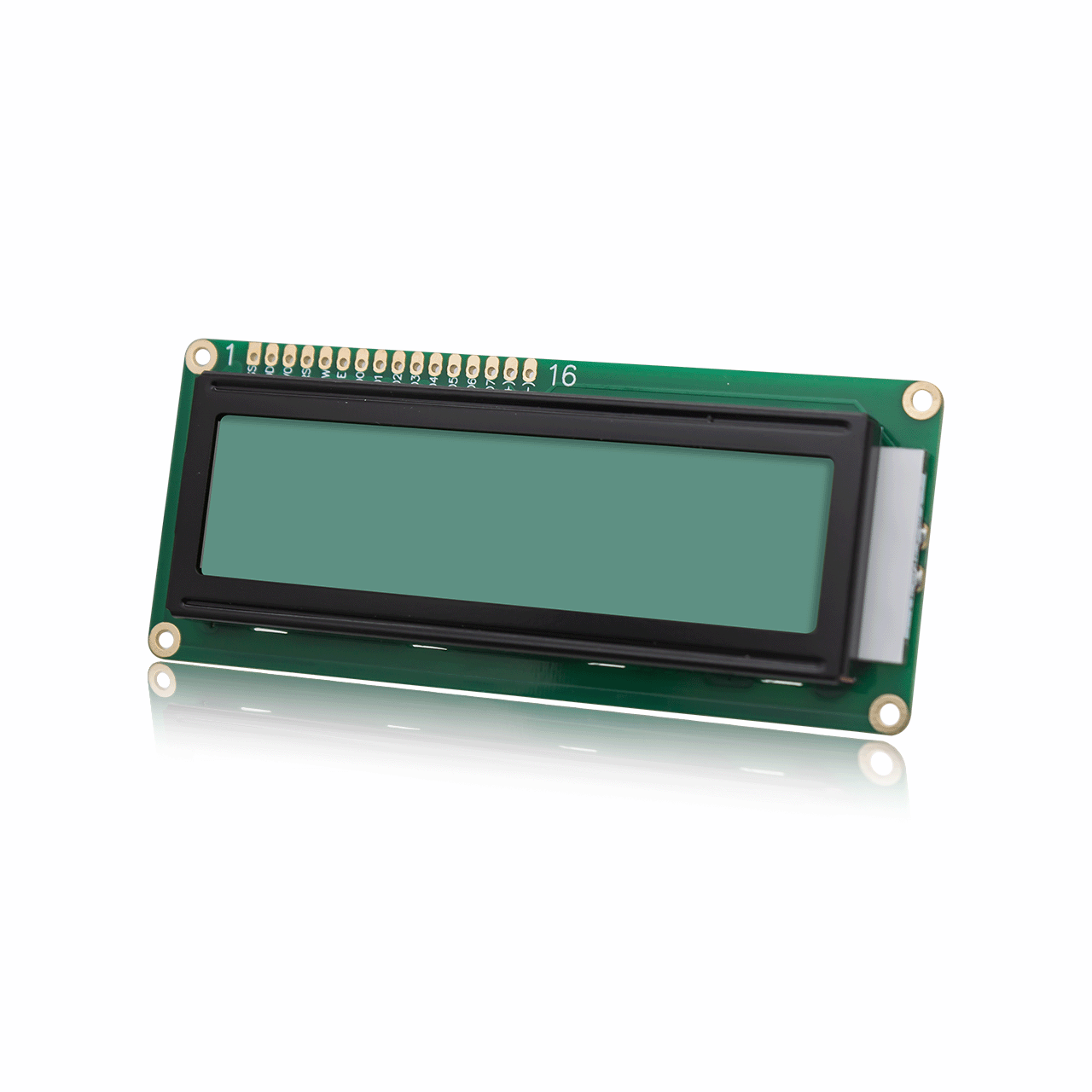

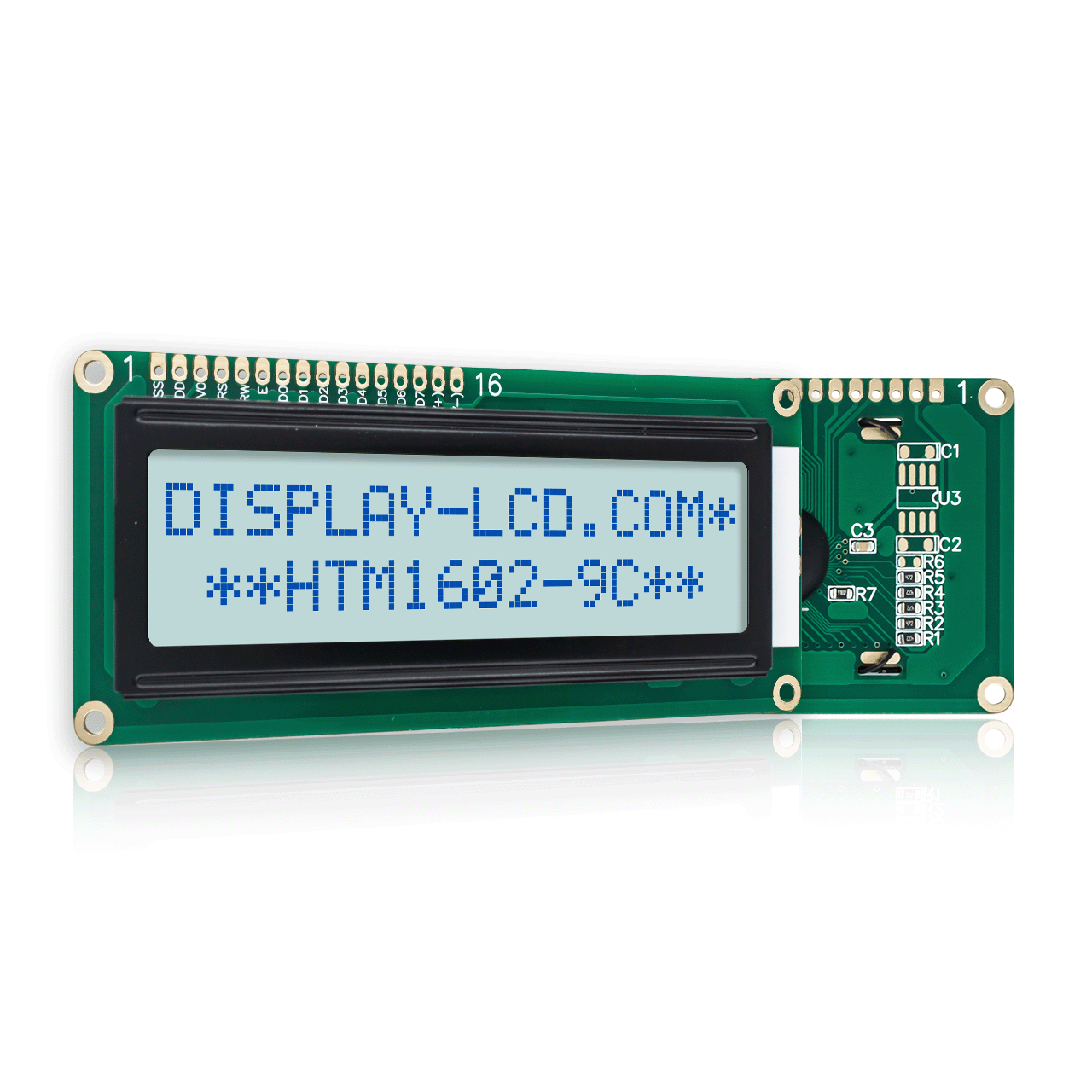

HOTHMI 16x2 LCD display shows up to 32 characters as two rows, each with sixteen characters of blue, dark pixels on a light gray background. This transflective STN positive Liquid Crystal Display includes a side white LED backlight allowing it to be visible with backlight on or with ambient light while offering an optimal 12:00 view.
HTM1602-9C-11W-A5P display has a wide operating temperature range from -20 to 70 degrees Celsius, a built-in ST7066U controller, operates at 5V supply voltage with low Power of 20mA, and adheres to the highest quality standards. Whether you are looking to develop a high-quality product or use it for a personal project, this 16 character, 2 rows, Arduino compatible character LCD offers quality and performance with low power consumption.
Connector Customization: Easily modify any connectors on your display to meet your application’s requirements. Our engineers are able to perform soldering for pin headers, boxed headers, right angle headers, and any other connectors your display may require. |

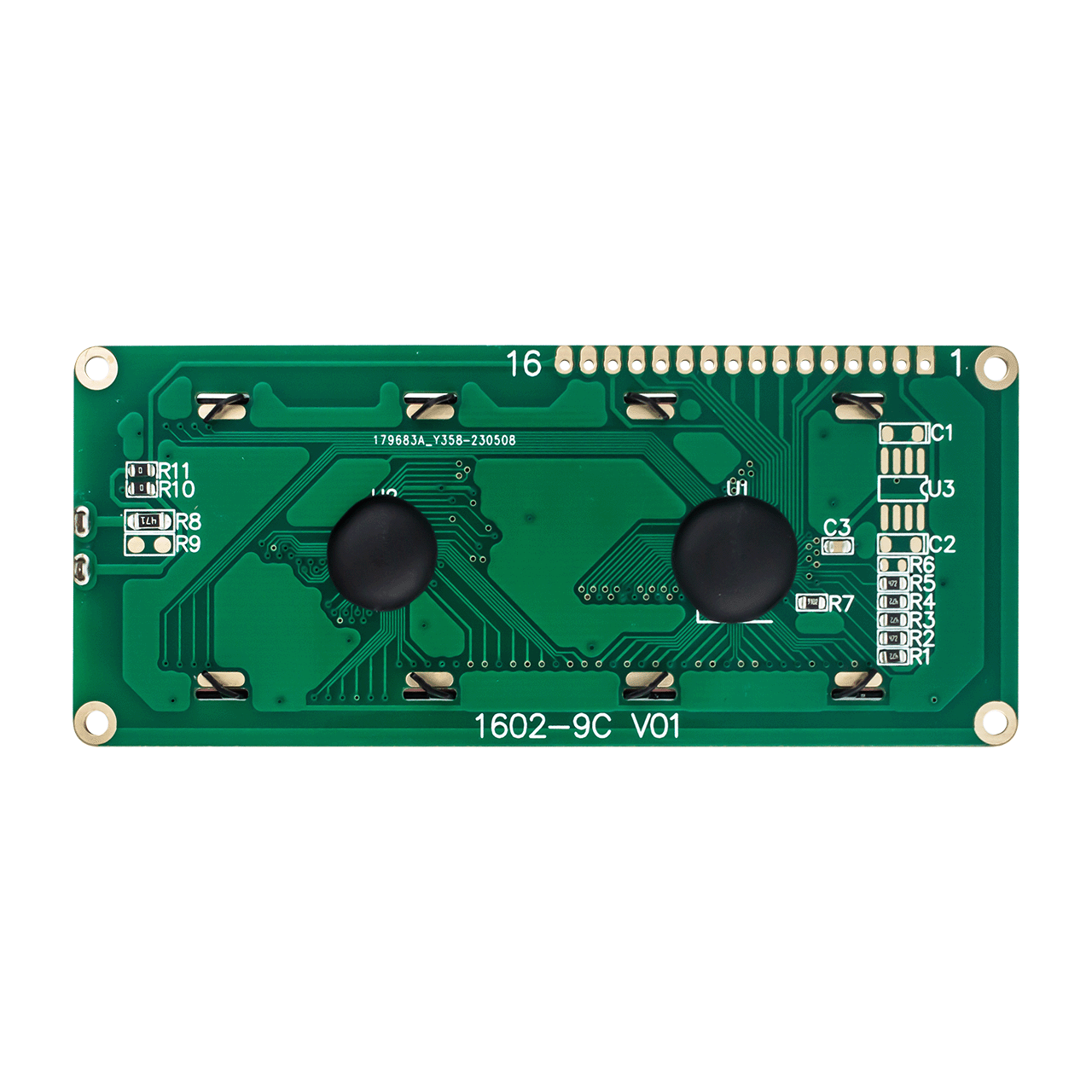

PCB Modifications: Choose from a variety of changes to the PCB's shape, size, pinout, and component layout to make it perfect for your application. |
Backlight color customization: The module backlight has a variety of combinations to choose from, without backlight or with yellow-green/blue/white/amber/red/RGB backlight options. There are 48 effects. You can click on the customization page for reference. |
Font library customization: Provides a variety of font libraries, including English/Japanese, Western Europe, Eastern Europe, Scandinavian Europe, Cyrillic (Russian), Hebrew/Arabic, etc. |
Cable Customization: Adjust the length, position, and pinout of your cables or add additional connectors. Get a cable solution that’s precisely designed to make your connections streamlined and secure. |
