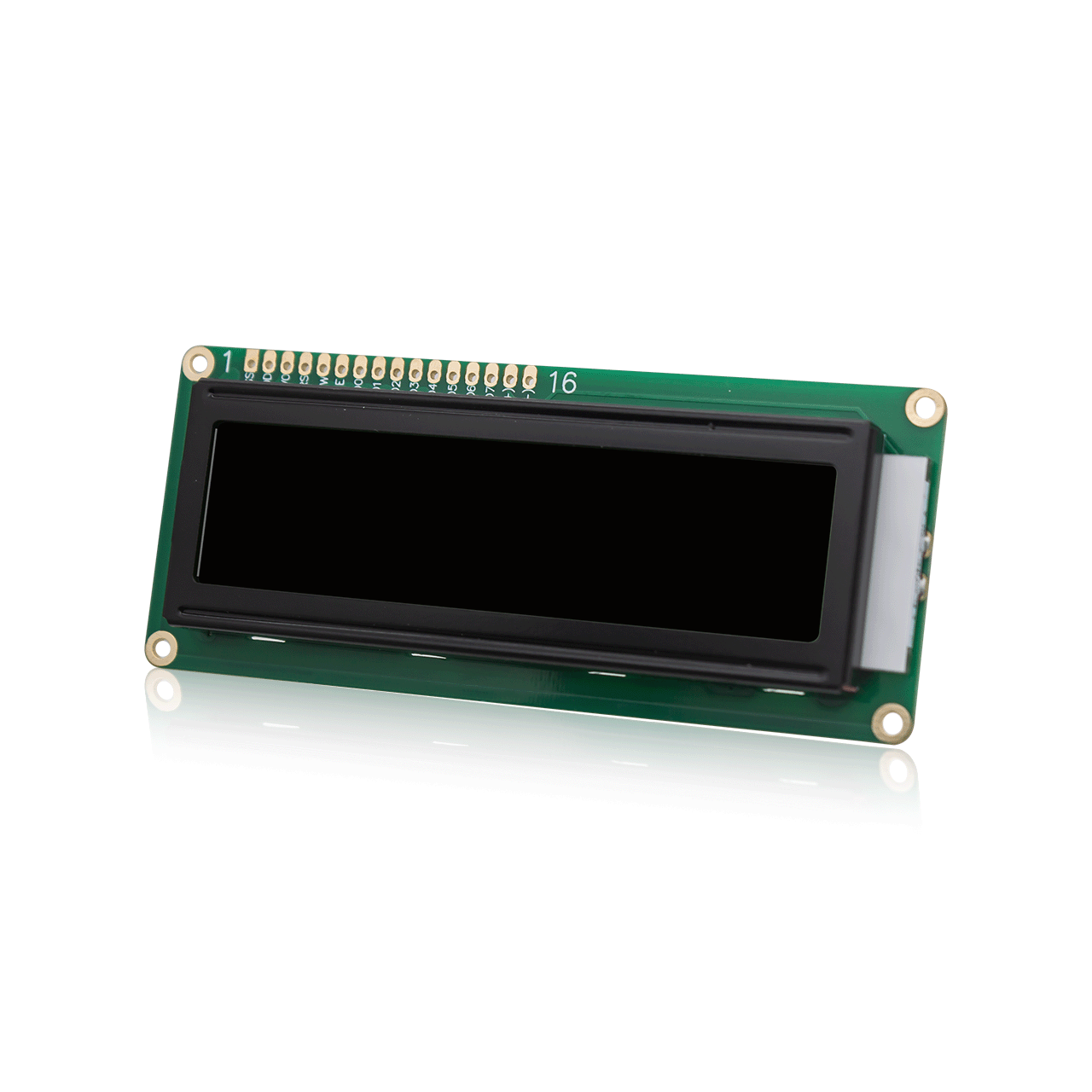

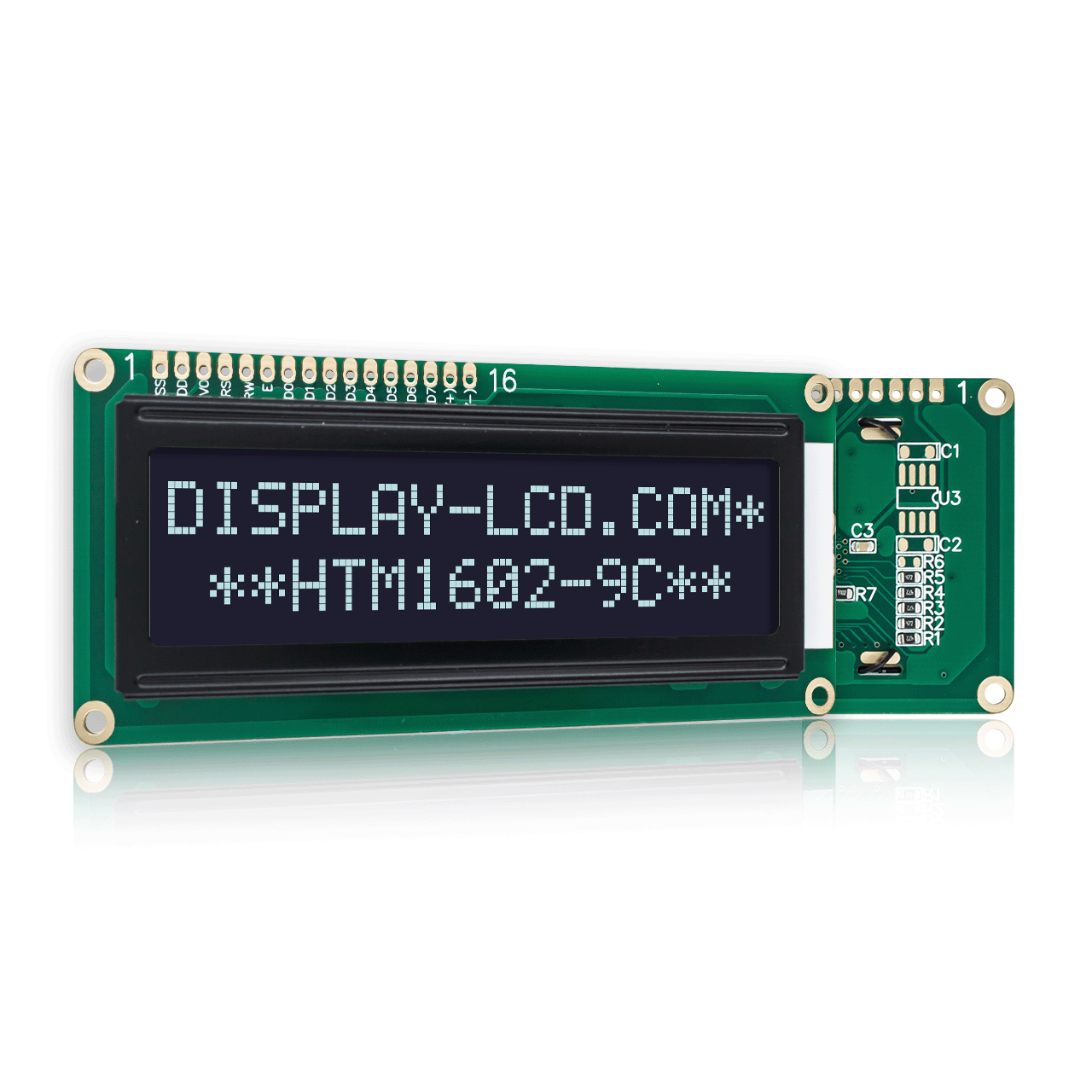

HTM1602-9C-41W-A5P | 16x2 Character | Transmissive LCD | Side White LED Backlight | DFSTN (-) Negative Display
This 16x2 character LCD displays bright white pixels on a black background. The transparent display mode adopts built-in LED backlight, providing optimal visibility in low light conditions. This HTM1602-9C-41W-A5P monitor has the best viewing angle at 12:00, a wide operating temperature range of -20 to 70 degrees Celsius, and operates at a 5V power supply voltage. This Arduino compatible monitor comes with an ST7066U controller, providing excellent viewing experience and performance at an affordable price.
Connector Customization: Easily modify any connectors on your display to meet your application’s requirements. Our engineers are able to perform soldering for pin headers, boxed headers, right angle headers, and any other connectors your display may require. |
PCB Modifications: Choose from a variety of changes to the PCB's shape, size, pinout, and component layout to make it perfect for your application. |
Backlight color customization: The module backlight has a variety of combinations to choose from, without backlight or with yellow-green/blue/white/amber/red/RGB backlight options. There are 48 effects. You can click on the customization page for reference. |
Font library customization: Provides a variety of font libraries, including English/Japanese, Western Europe, Eastern Europe, Scandinavian Europe, Cyrillic (Russian), Hebrew/Arabic, etc. |
Cable Customization: Adjust the length, position, and pinout of your cables or add additional connectors. Get a cable solution that’s precisely designed to make your connections streamlined and secure. |
