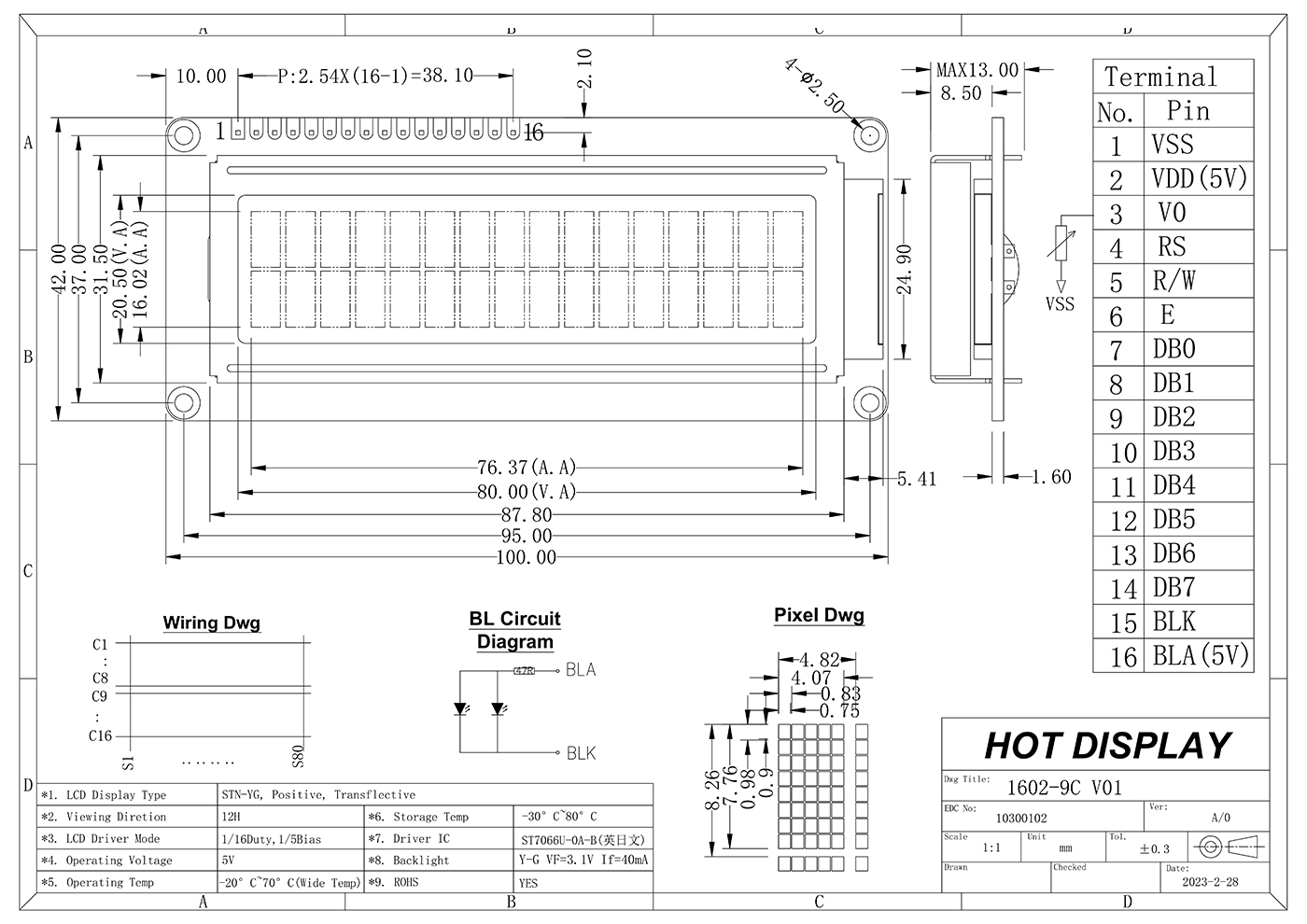

HTM1602-9C-01Y-A5P | 2x16 Character Display | Transflective LCD | Side Yellow/Green LED Backlight | STN (+) Positive Yellow/Green Display | LCD with Flex Cable

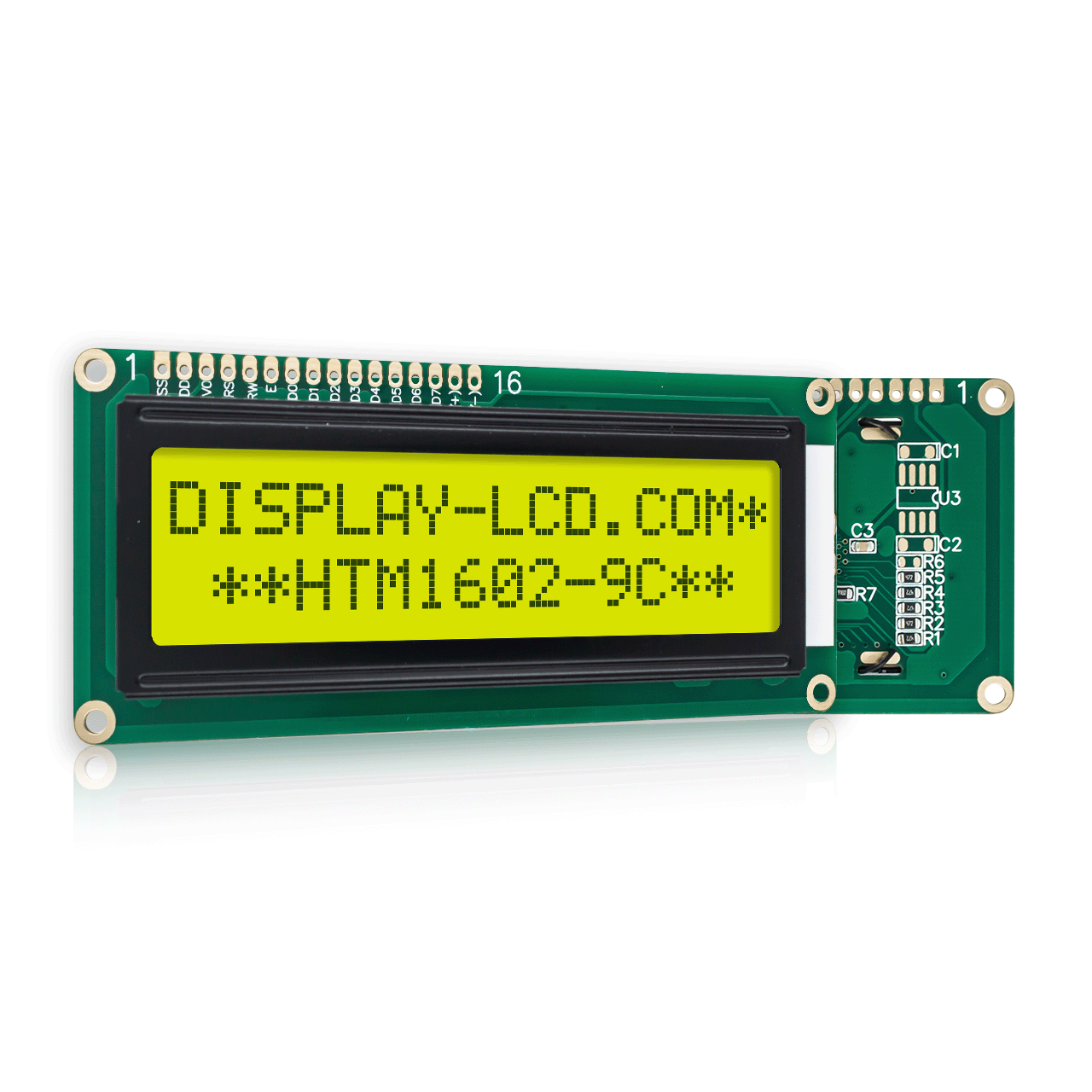

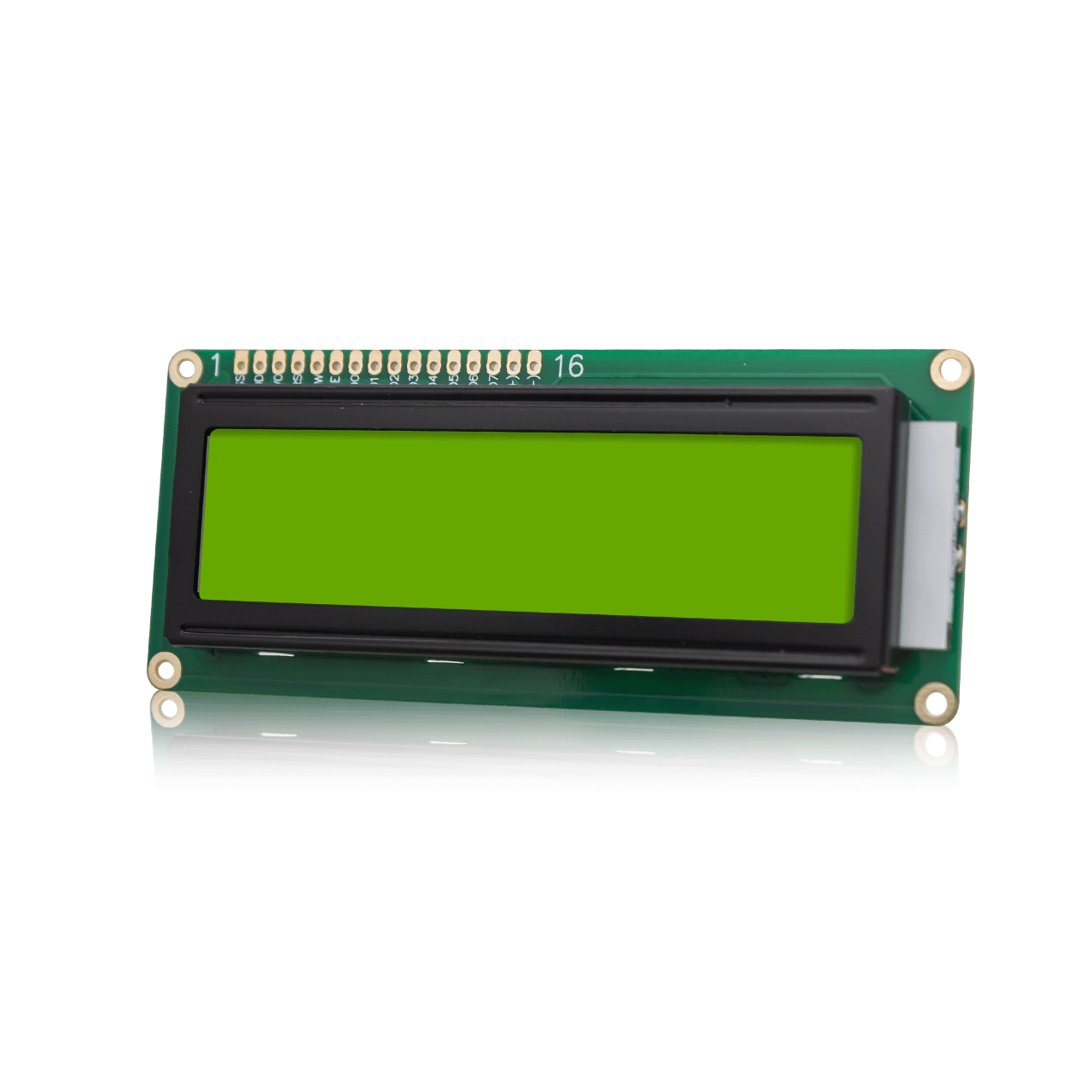

HTM1602-9C-01Y-A5P is a 16x2 character display using reflective LCD technology, which can display dark pixels on a yellow/green background, providing excellent visibility under ambient light conditions and with the help of side green LED backlight. This monitor has a wide operating temperature range of -20 to 70 degrees Celsius, suitable for indoor and outdoor environments. It is equipped with a built-in ST7066U controller and flexible cable, providing the best view at 12:00. This monitor supports 4-bit and 8-bit parallel MPU interfaces, with a working power supply voltage of 5.0V. In addition, it also complies with RoHS standards and environmental standards.
Connector Customization: Easily modify any connectors on your display to meet your application’s requirements. Our engineers are able to perform soldering for pin headers, boxed headers, right angle headers, and any other connectors your display may require. |

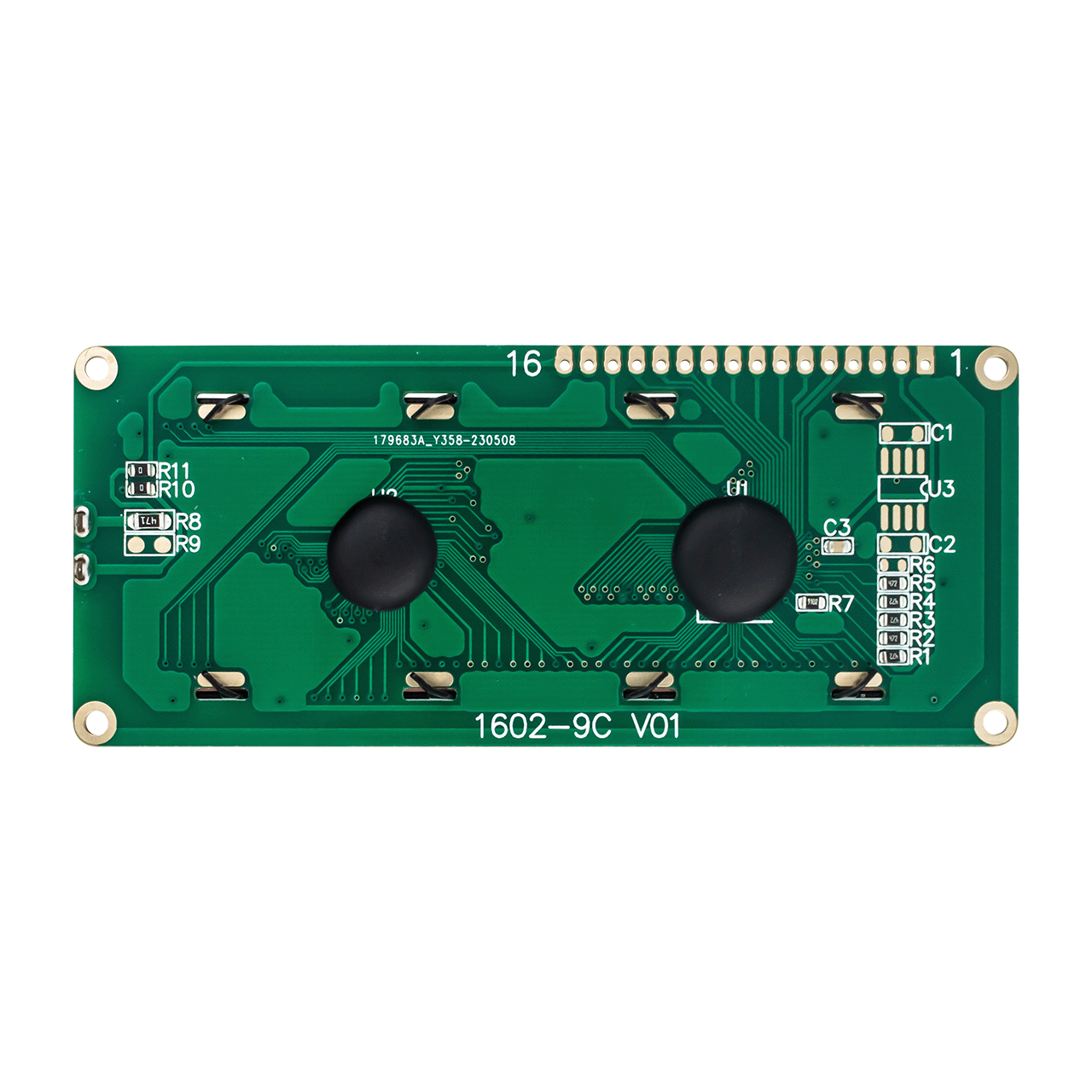

PCB Modifications: Choose from a variety of changes to the PCB's shape, size, pinout, and component layout to make it perfect for your application. |
Backlight color customization: The module backlight has a variety of combinations to choose from, without backlight or with yellow-green/blue/white/amber/red/RGB backlight options. There are 48 effects. You can click on the customization page for reference. |
Font library customization: Provides a variety of font libraries, including English/Japanese, Western Europe, Eastern Europe, Scandinavian Europe, Cyrillic (Russian), Hebrew/Arabic, etc. |
Cable Customization: Adjust the length, position, and pinout of your cables or add additional connectors. Get a cable solution that’s precisely designed to make your connections streamlined and secure. |
