TFT-H024A9QVIFT8N20 | 2.4-inch IPS-TFT-LCD | MIPI DSI interface | 240x320 pixel resolution LCD display screen | optional capacitive touch/resistive touch

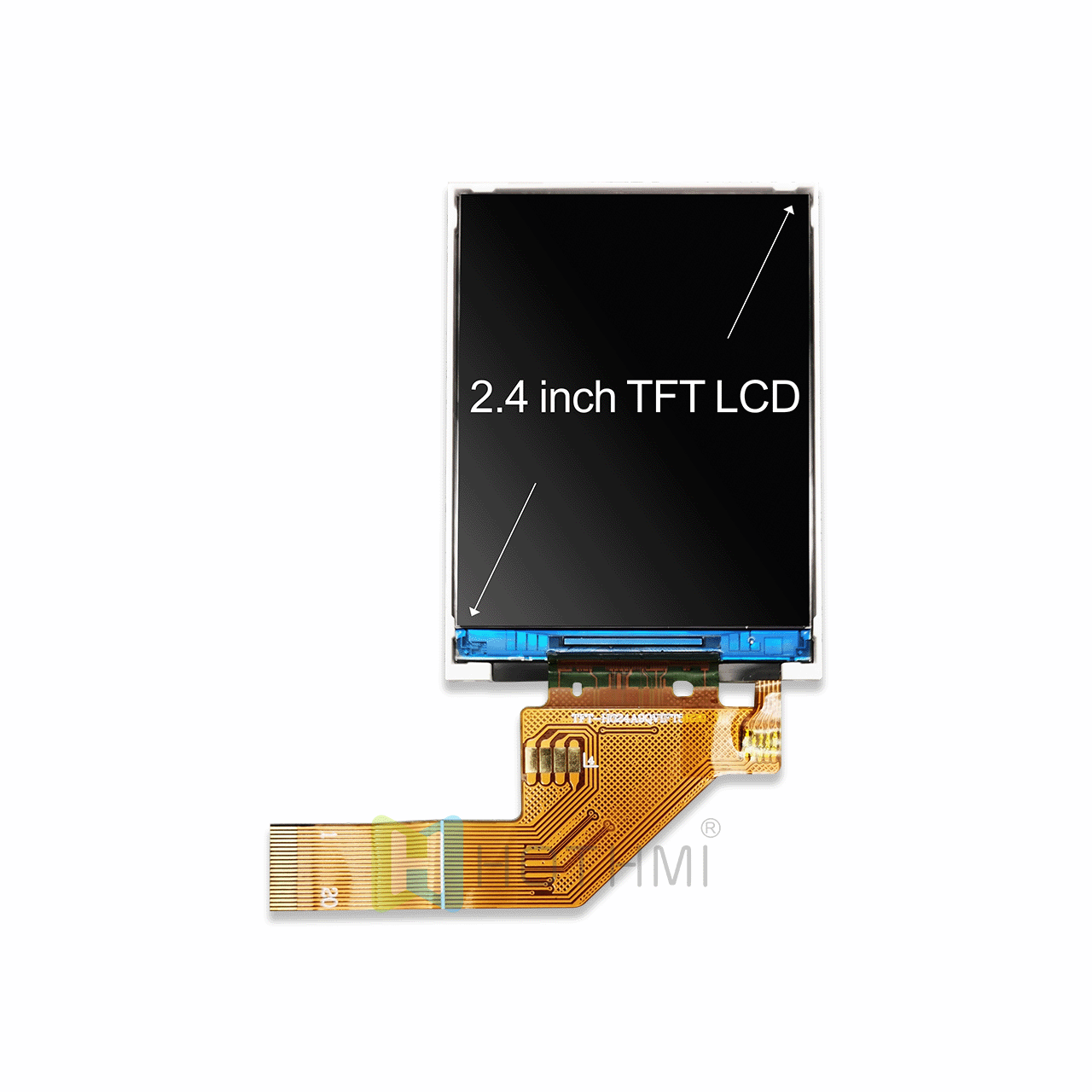

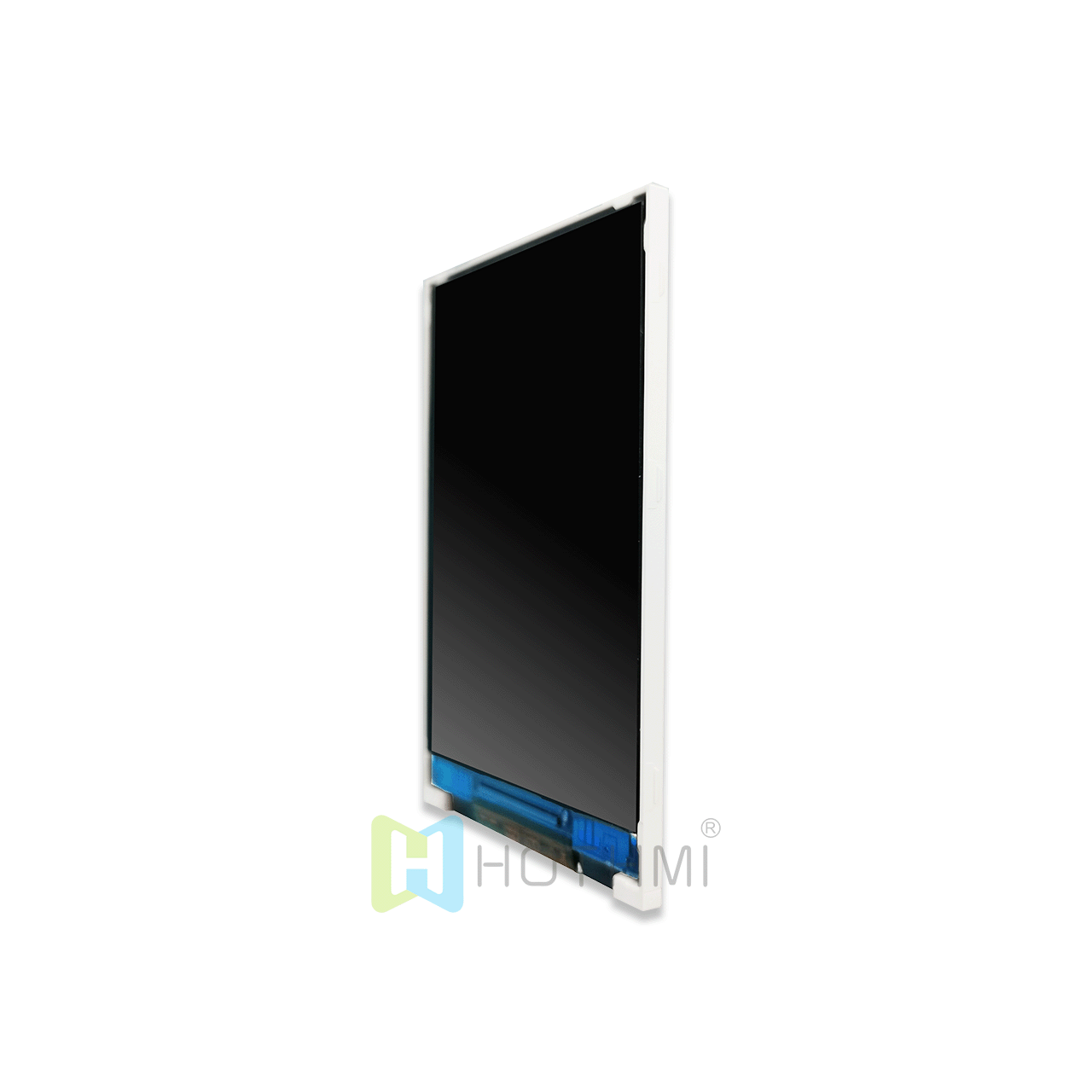

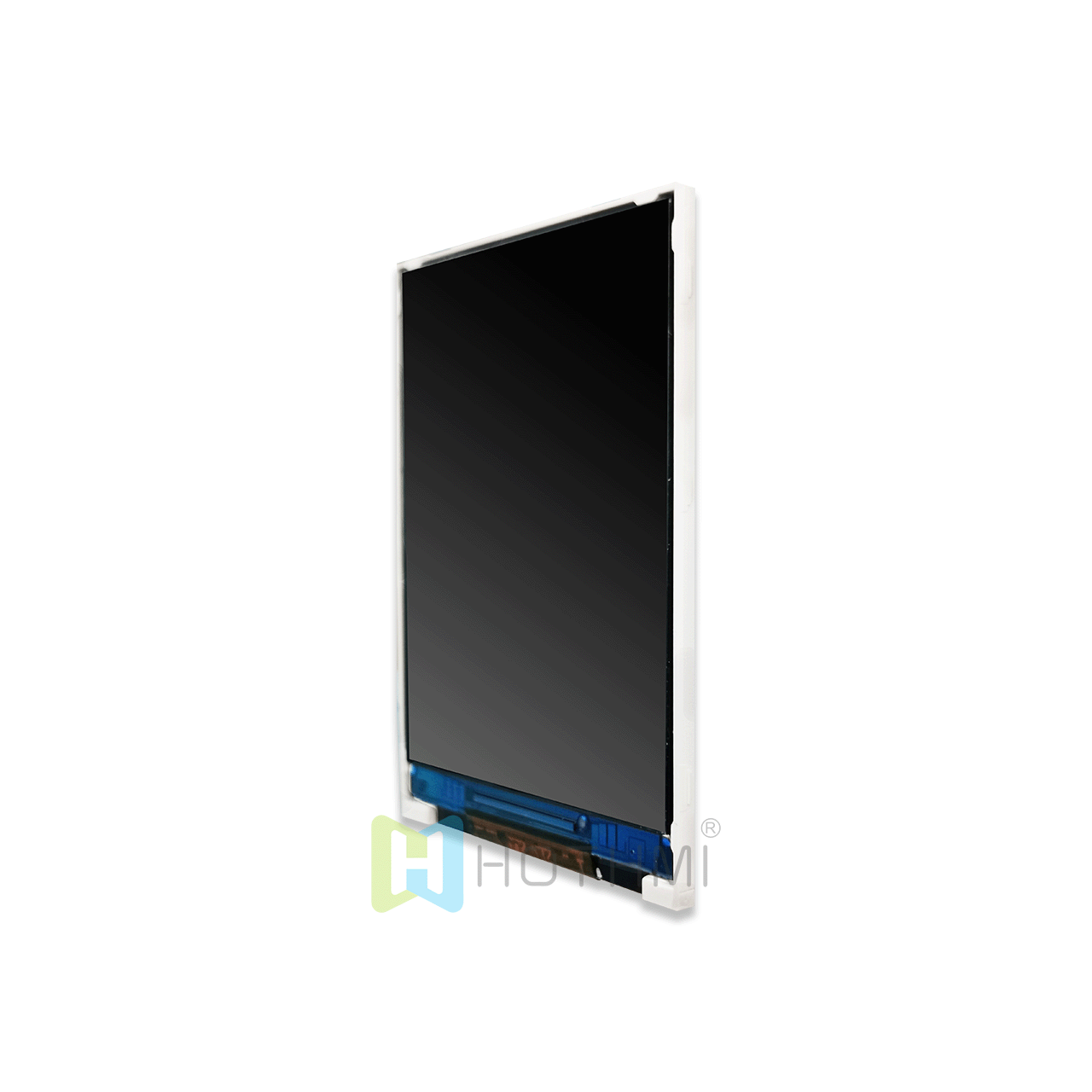

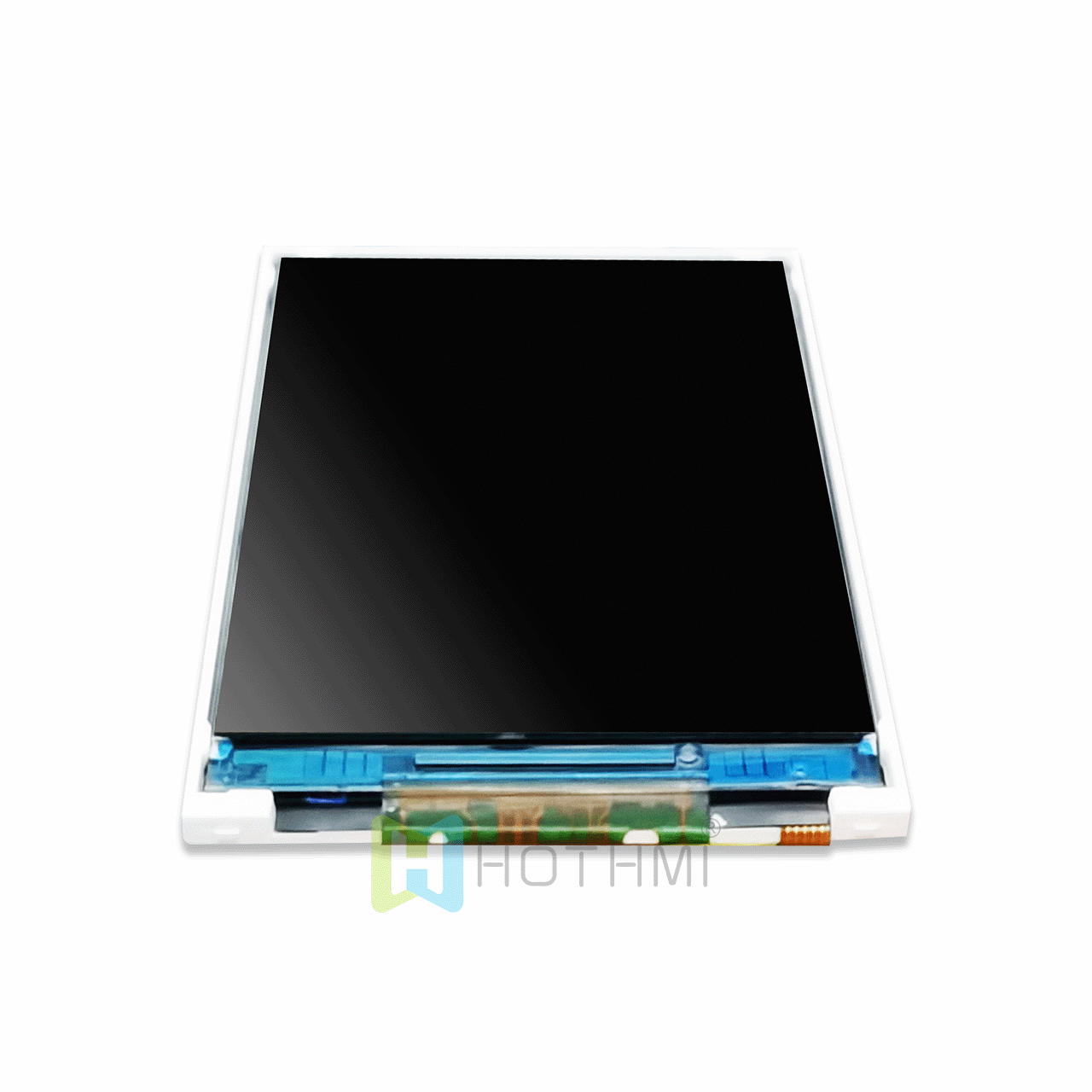

TFT-H024A9QVIFT8N20 is a 2.4-inch IPS TFT vertical LCD display with a resolution of 240x320 pixels. This display screen has a high contrast of 800:1 and can present deep black and bright colors. IPS technology can achieve full perspective.
TFT-H024A9QVIFT8N20 has a built-in JD9852 controller and MIPI interface for transmitting data to the display. Equipped with an optional capacitive touch screen, allowing users to interact with the display screen through touch and multi touch input through bare fingers and optional FPC connectors. Suitable for a wide range of applications, including industrial control systems, home automation, and portable electronic products.

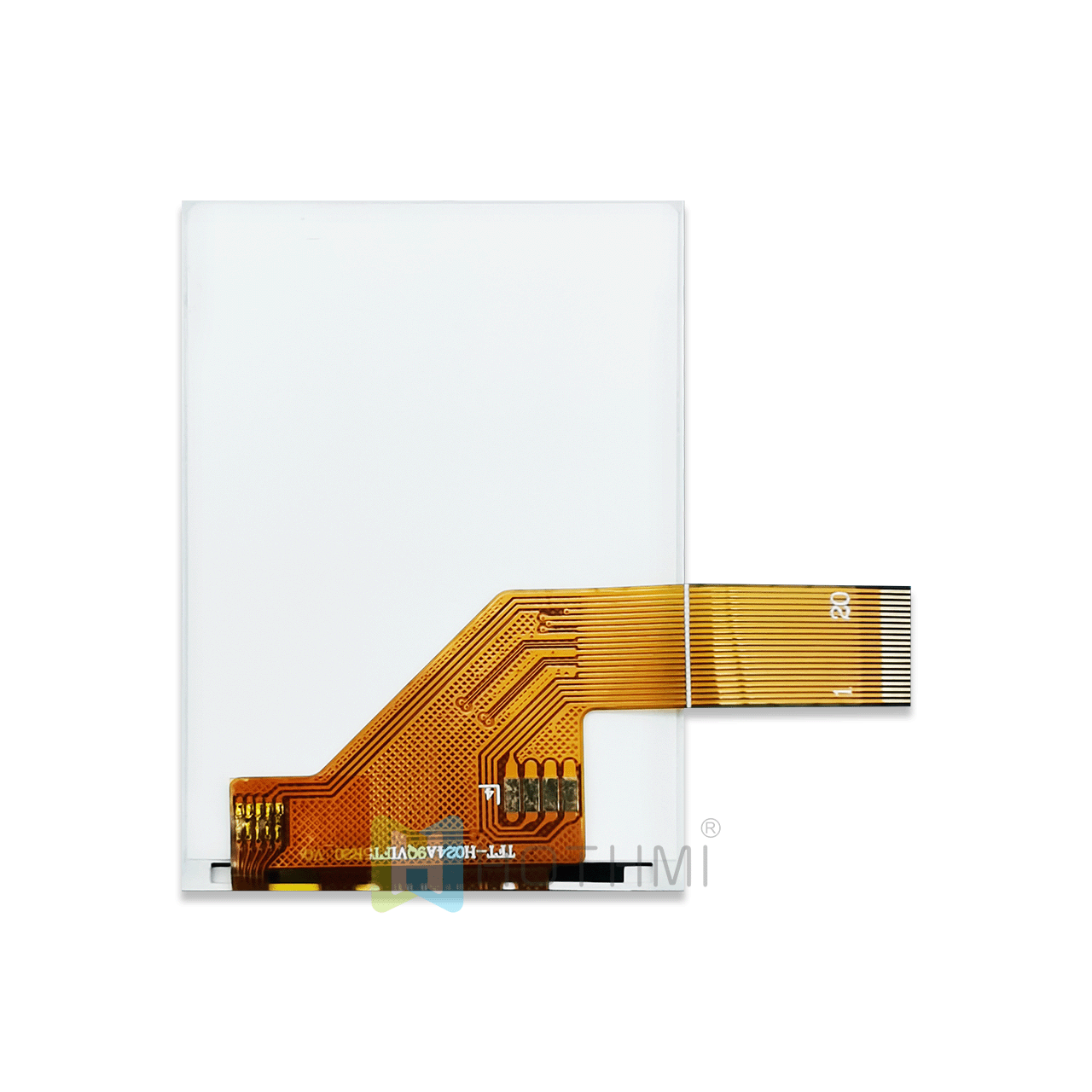

Customized Ribbon Cables/Flexible Printed Circuits (FPC): Tailor your cables to perfection by adjusting their length, position, and pin arrangements, or adding other connectors. Obtain a precisely designed cable solution to streamline and enhance the safety of your connections |
Touchscreen Add-On Components: Enhance your user experience with capacitive or resistive touchscreen technology. We can adjust the glass thickness or shape of the touchscreen to ensure a perfect fit for your design. |
Interface Customization: Choose from various interface options or consult with our experts to select the options that best suit your project. We can integrate HDMI,USB, SPI, VGA, and other interfaces into your display to achieve your design goals. |
Cover Glass: Equip your display with custom-cut cover glass to improve durability. Choose from various thicknesses of cover glass and undergo optical bonding to prevent moisture and debris. |
