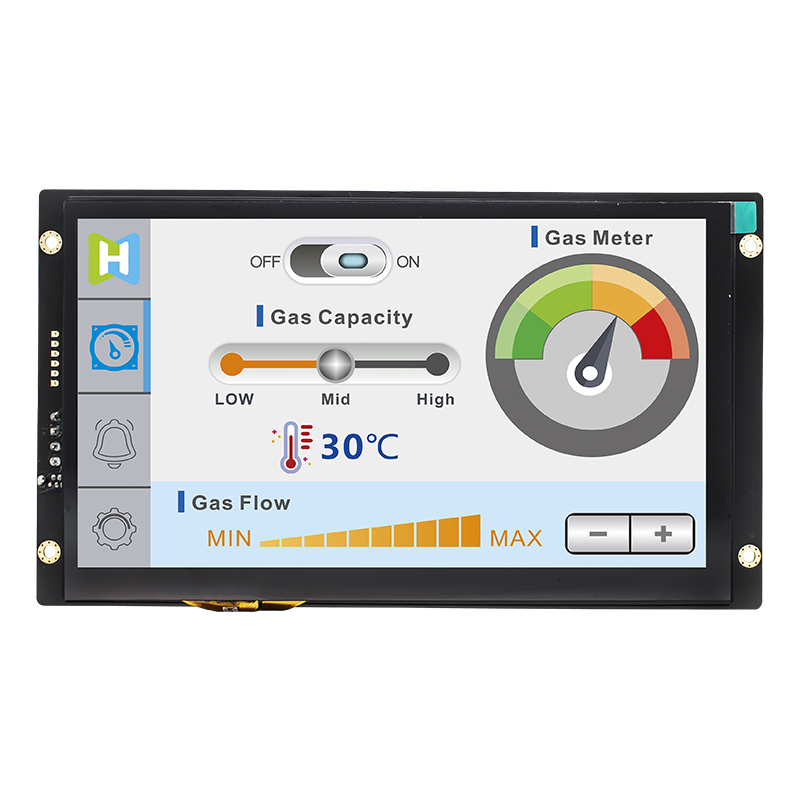

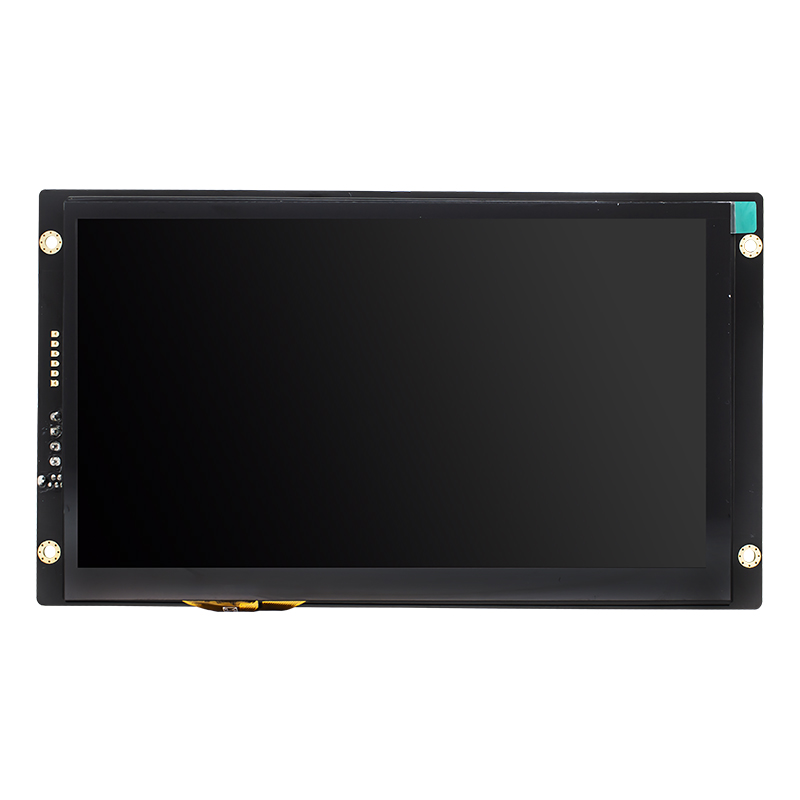

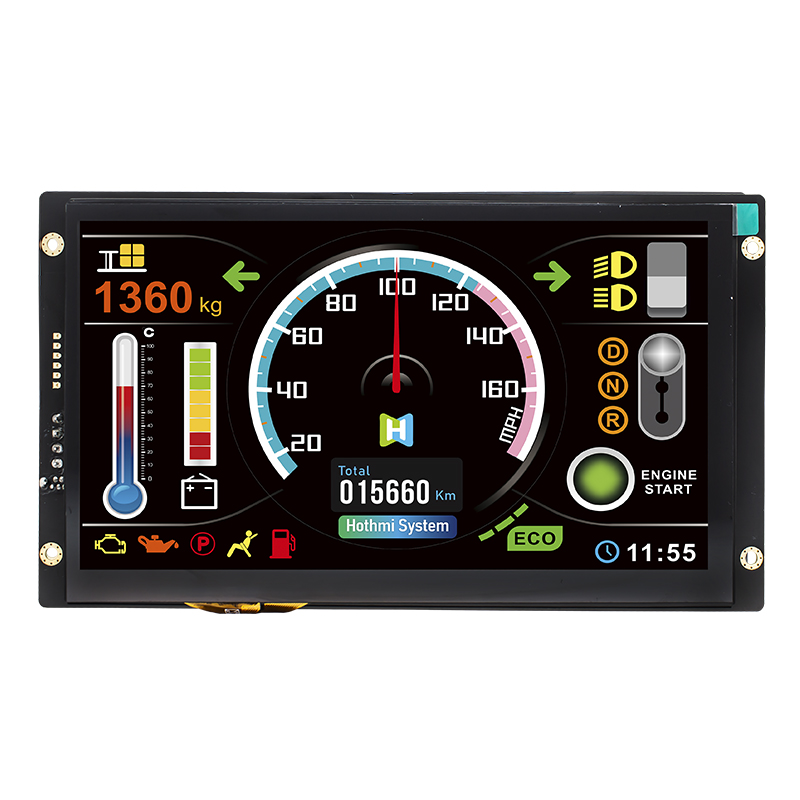

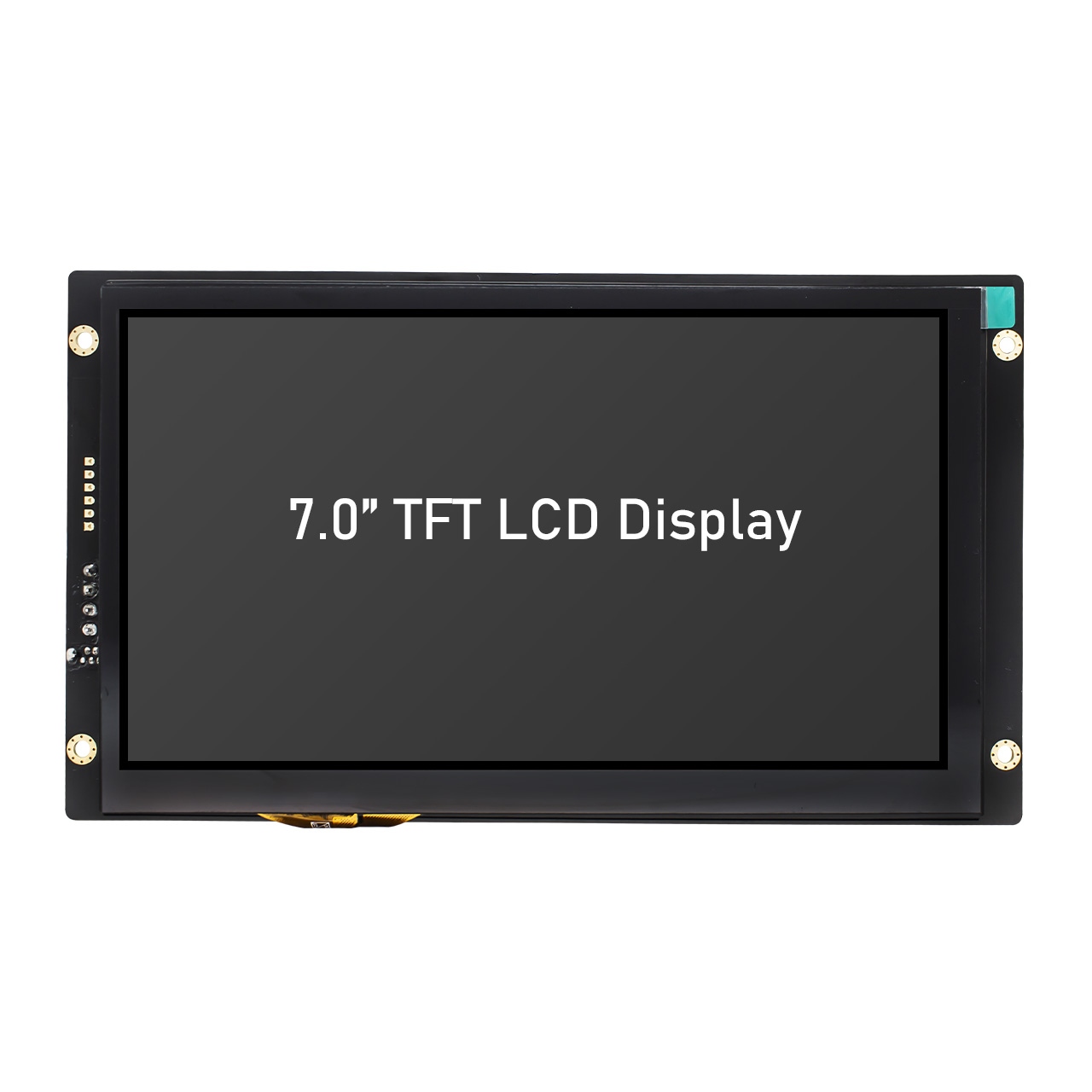

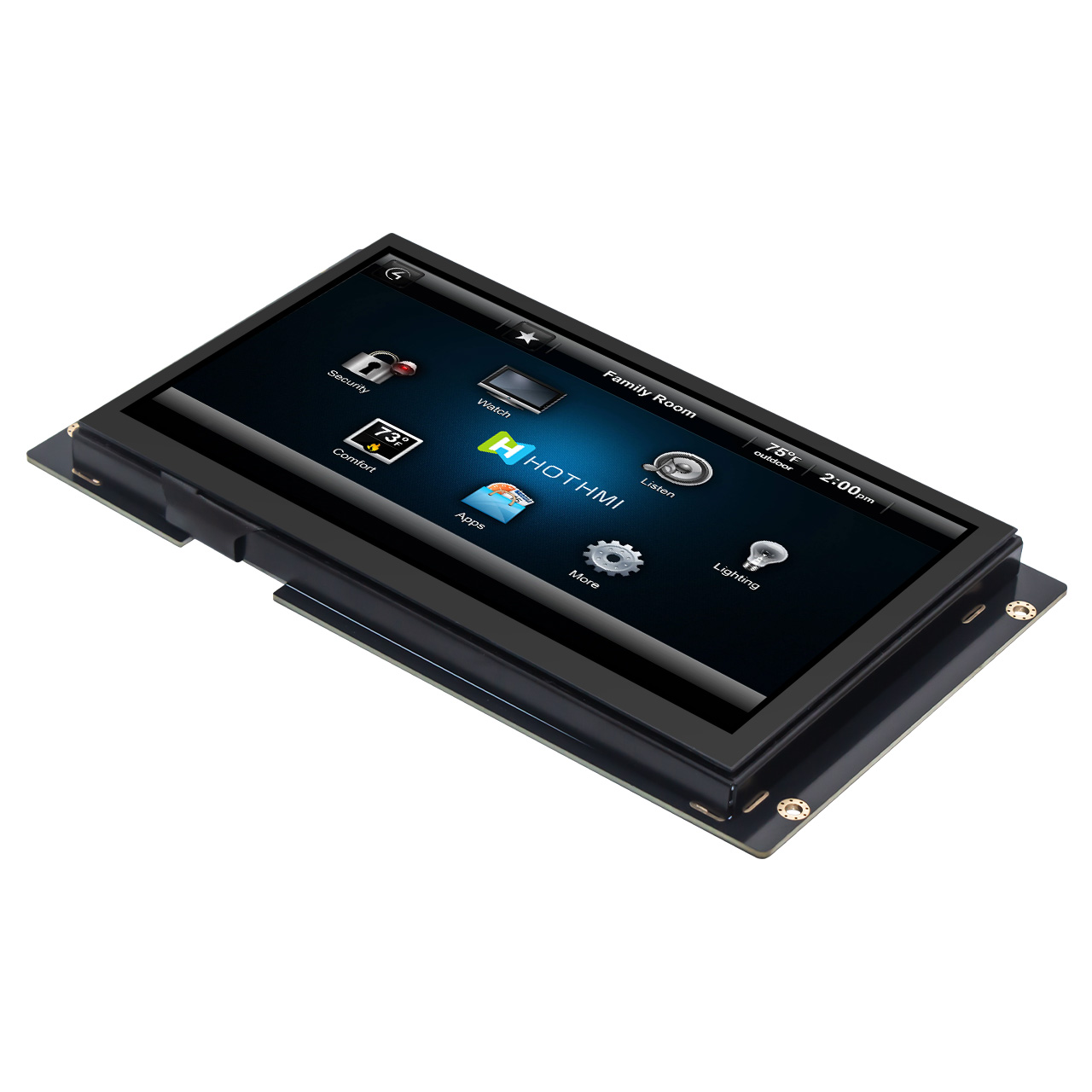

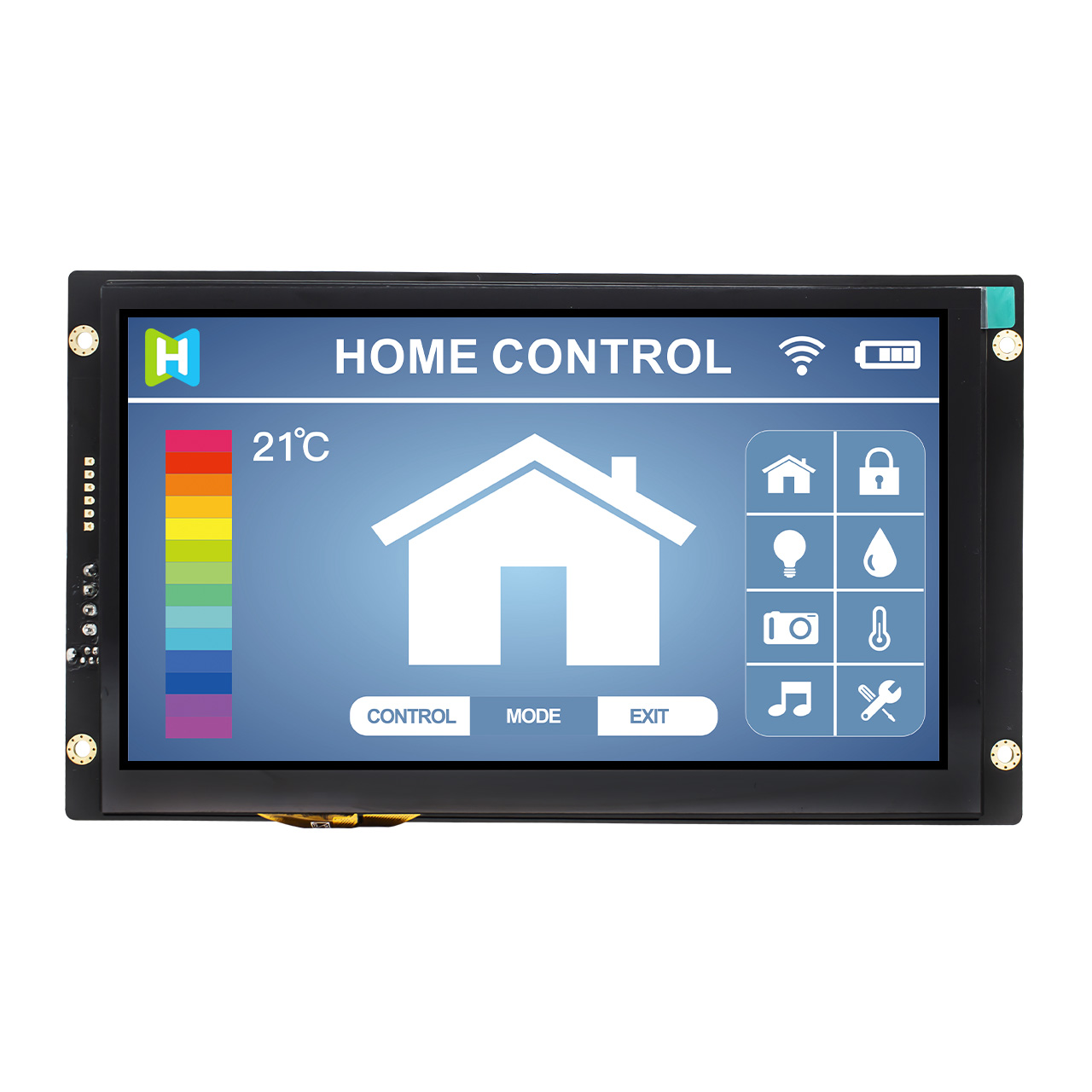

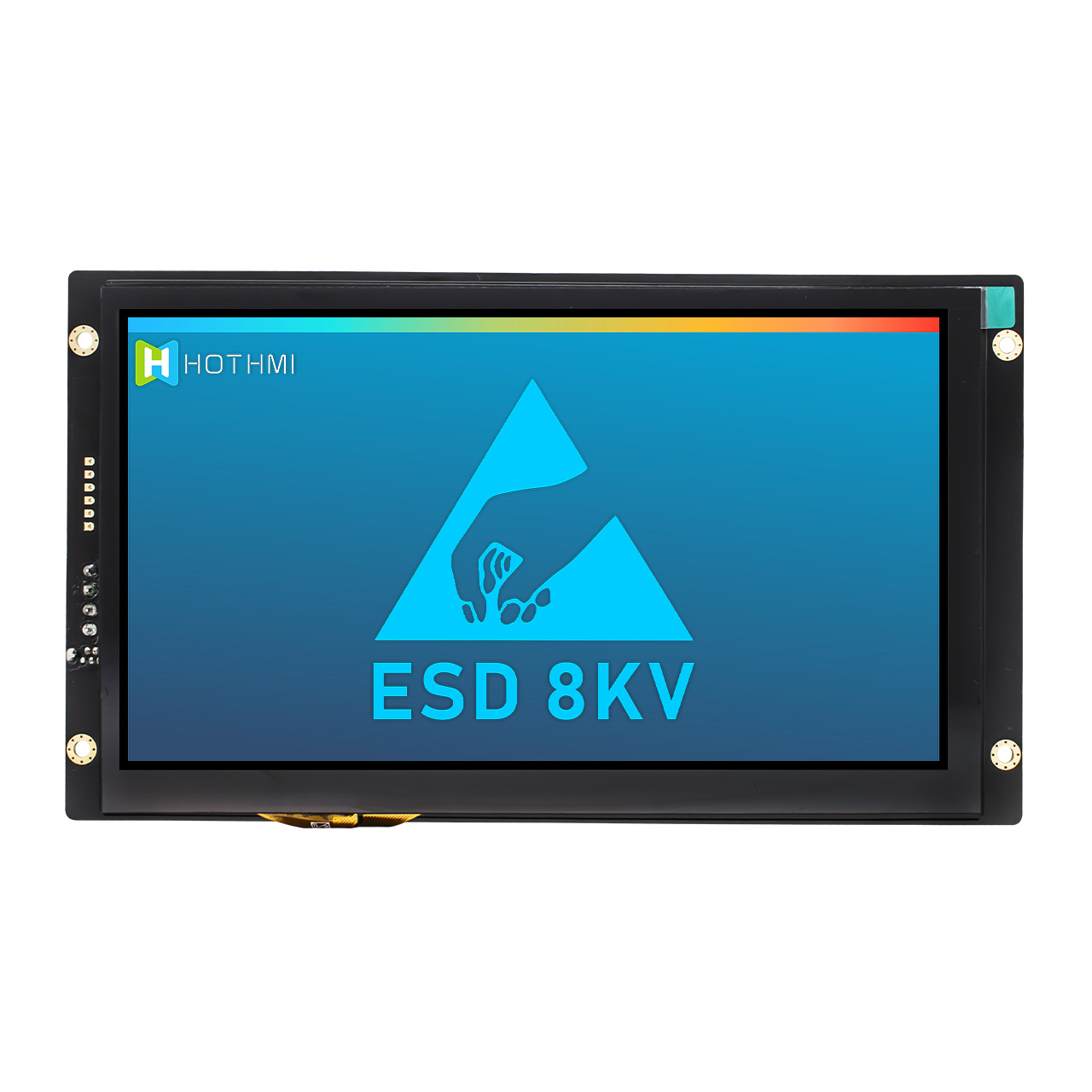

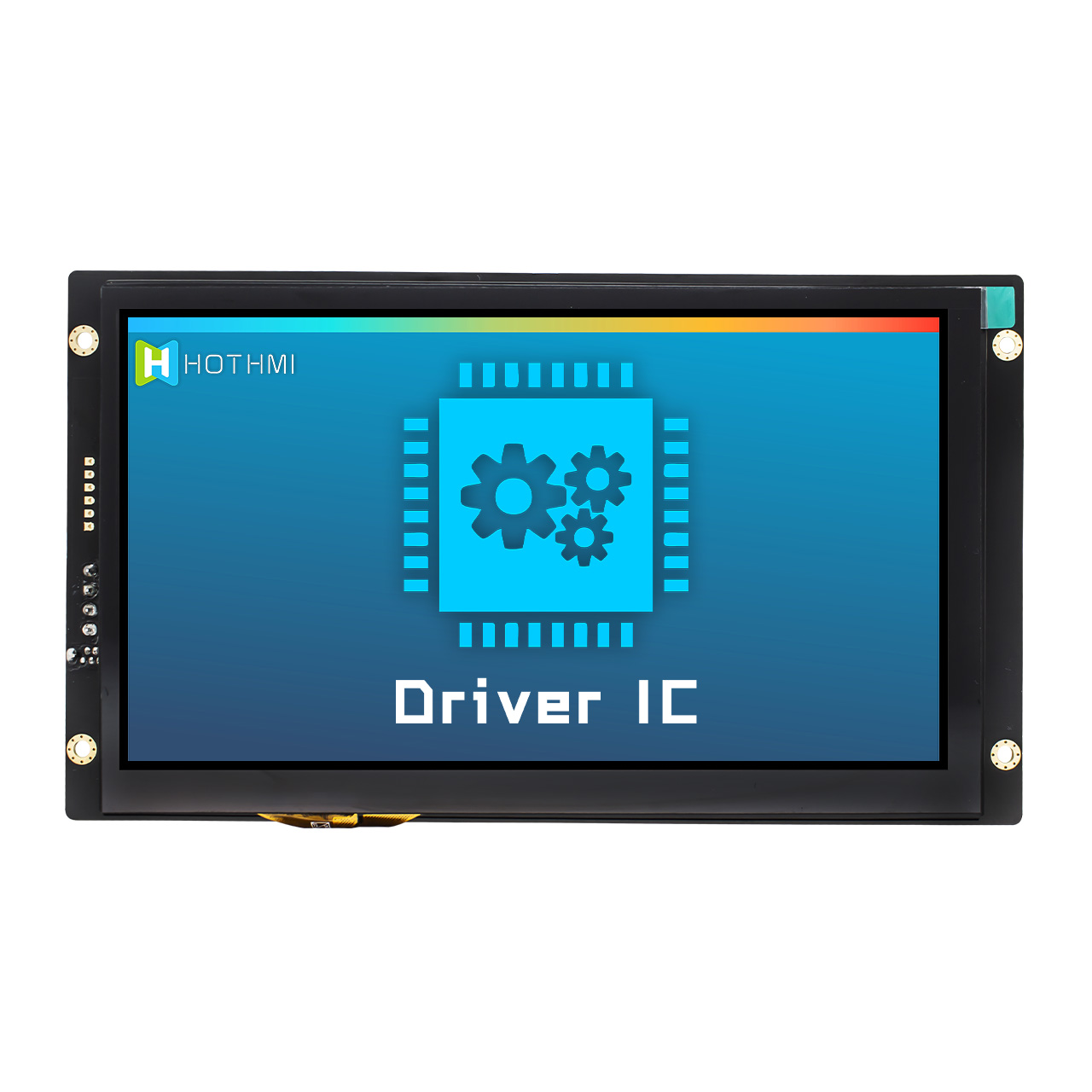

HTM-H070A16-UART-A05 Intelligent Serial Screen

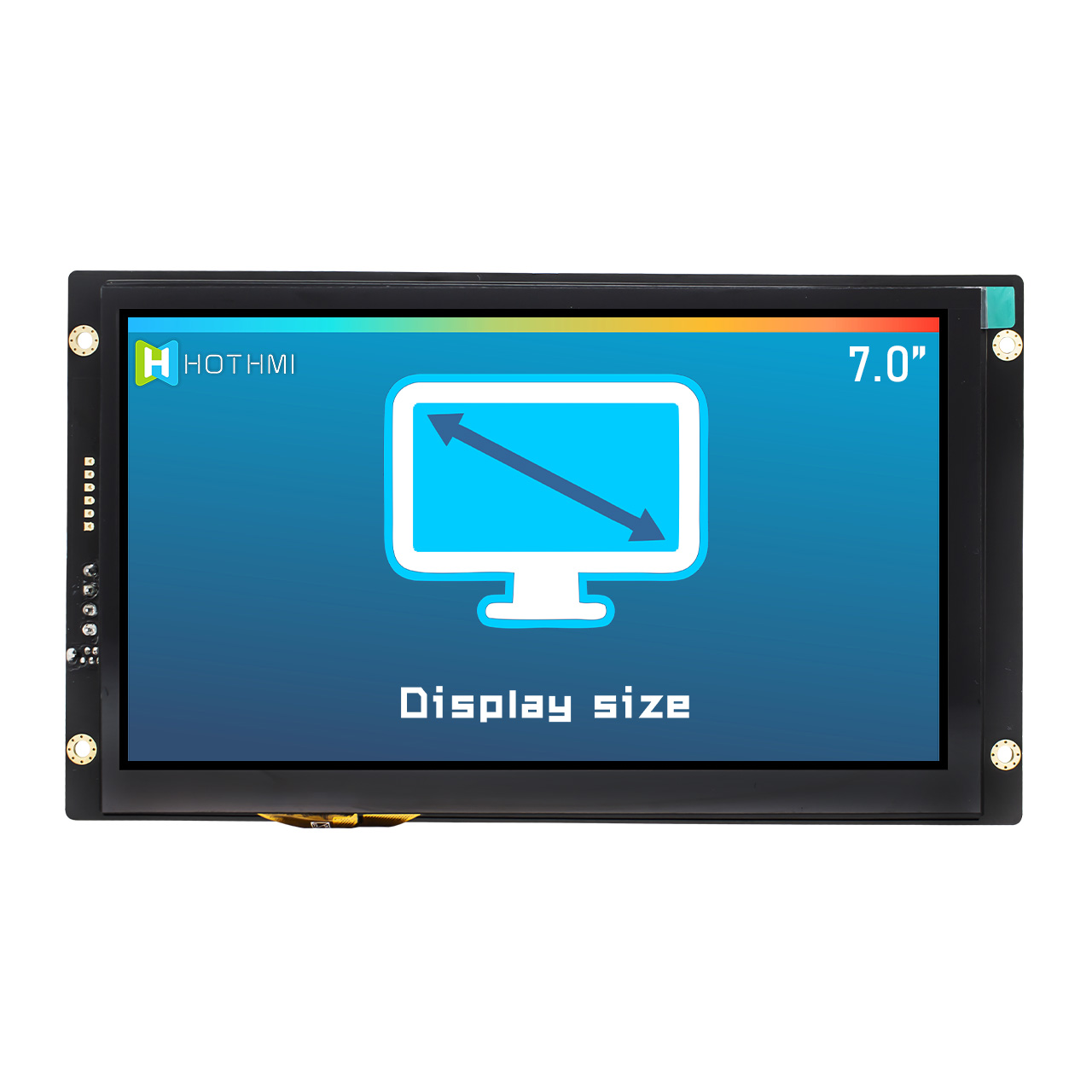

Product Description: The HTM-H070A16-UART-A05 series intelligent serial screen is a 7-inch (diagonal) color TFT display with a high-definition resolution of 800x480 pixels and a 16-bit color depth. It features a built-in 128MB resource storage, powered by a 5V DC power supply. The product utilizes a serial UART (TTL level) interface with ASCII string communication protocol, suitable for interfacing with Arduino systems and other MCUs.

Standard Configuration:

• 7-inch diagonal color TFT screen, optional without touch/resistive touch/capacitive touch

• Resolution: 800x480 pixels, supports 65536 colors

• Power supply: 12~24V DC power

• Serial interface: UART serial interface (TTL level), supports 9600~1000000 bps

• Built-in resource storage: 128MB

• Standard RTC real-time clock module

• Internal 6x10, 8x16, 10x20, 16x32 point ASCII character set

Features:

• Supports basic drawing commands, including drawing points, lines, rectangles, circular rectangles, circles, arcs, string display, bitmap display, JPEG images, PNG image display, etc.

• Supports audio and video playback commands.

• Resource storage supports GBK2312 second-level Chinese character set, vector font library, BIG5 font library, BMP bitmap, JPEG images, PNG image display, ASCII Western character set, etc.

• Supports interface transition effects settings, such as transparency fade-in, random quick fade-in, Venetian blinds fade-in, fast buffer switching.

• Supports various controls, including area buttons, bitmap buttons, numerical controls, string controls, drop-down selection controls, waveform controls, progress bar controls, bitmap animation controls, time/date display controls, dial display controls, slider controls, QR codes, etc.

EzUI Series Intelligent LCD Display Module by HOTHMI:

The EzUI series intelligent LCD display module is a user-friendly, code-free full-color graphic touchscreen human-machine interface development tool. Users can use the EzUITool interface development tool software for design, editing, control configuration, and response settings. The generated resource files can then be copied to EzUIH series modules, completing the design and production of the human-machine interaction interface without programming single-chip microcontrollers or other controllers.

Features and Application Scope:

• Easy to use: Adopts a simple and user-friendly design philosophy, allowing users to easily perform interface design and development through EzUITool software.

• Code-free: Achieves the goal of code-free user interface design. Users only need to copy the resource files generated by the software to EzUIH series modules, eliminating the need for programming.

• Rich functionality: Provides rich features and performance. Users can choose between simple or complex usage and freely control the module's display functions.

• Multiple size options: Offers various sizes for customer selection, suitable for different application scenarios such as industrial control equipment and medical devices.

In summary, both product series offer rich functionality and flexible usage in the field of LCD displays, catering to the needs of different users and application scenarios.
