Character 2X16 LCD Mono Display | FSTN+ with Side White Backlight 5.0V | Arduino-China LCD TFT Display Manufacturer, Global Supplier

Character 2X16 LCD Mono Display | FSTN+ with Side White Backlight 5.0V | Arduino

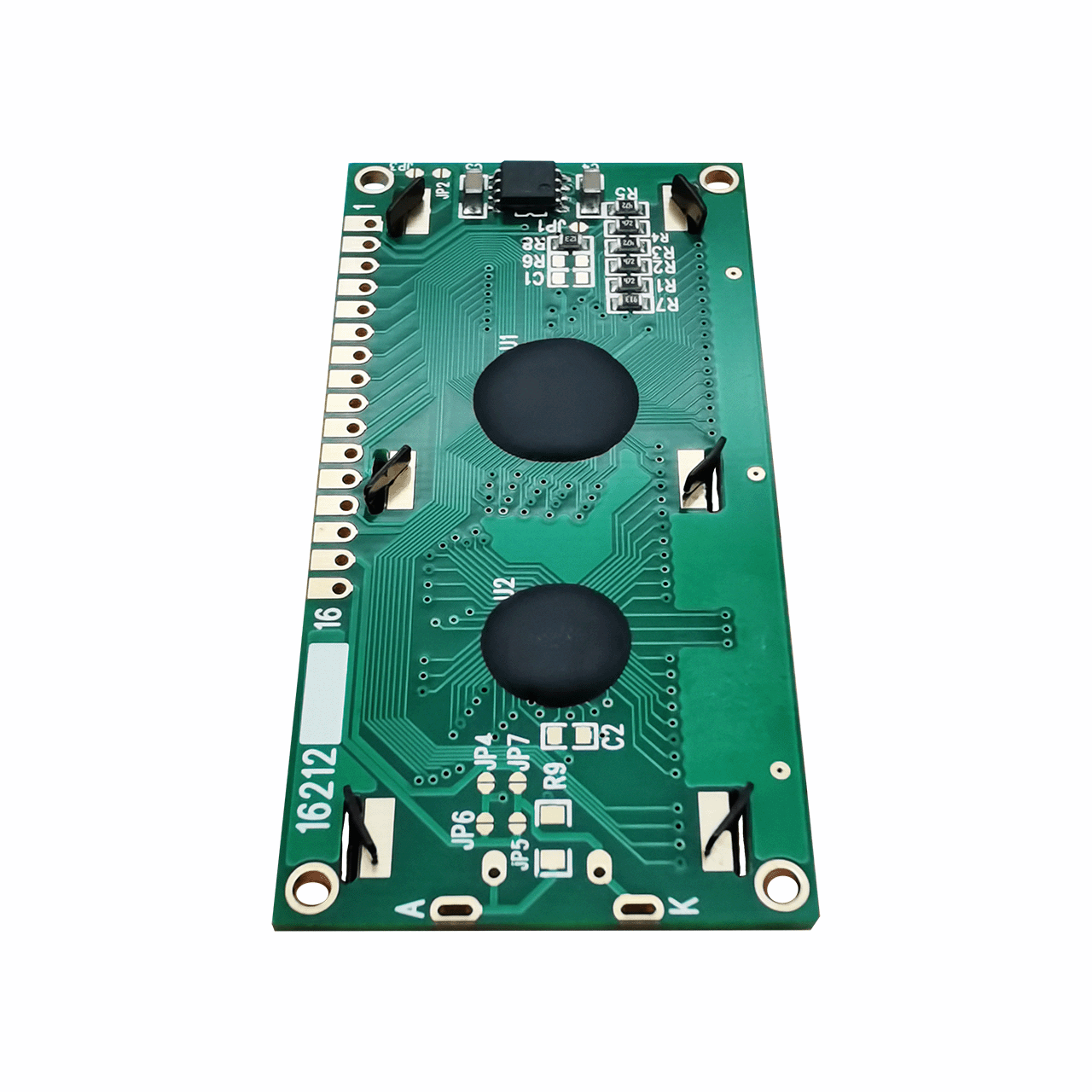

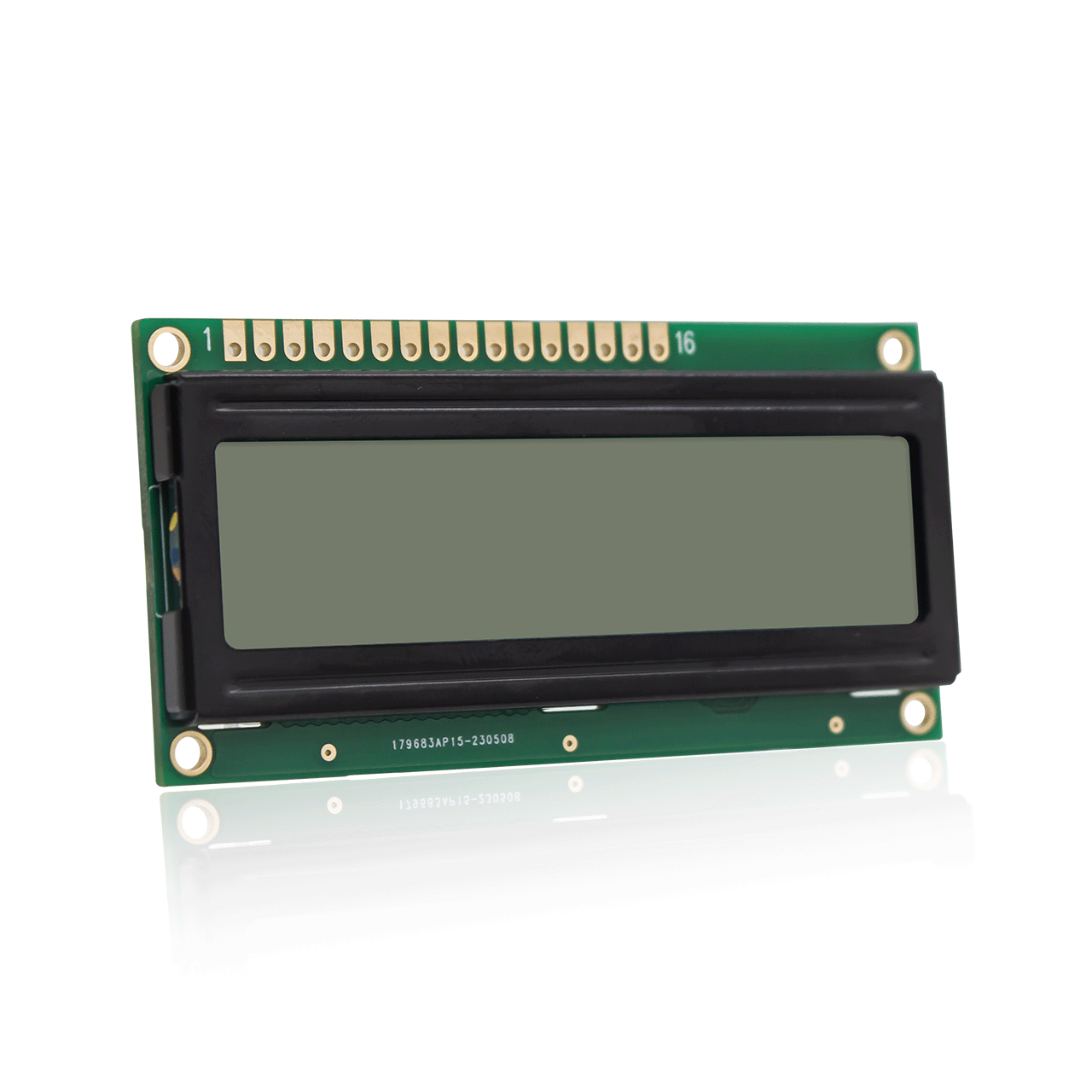

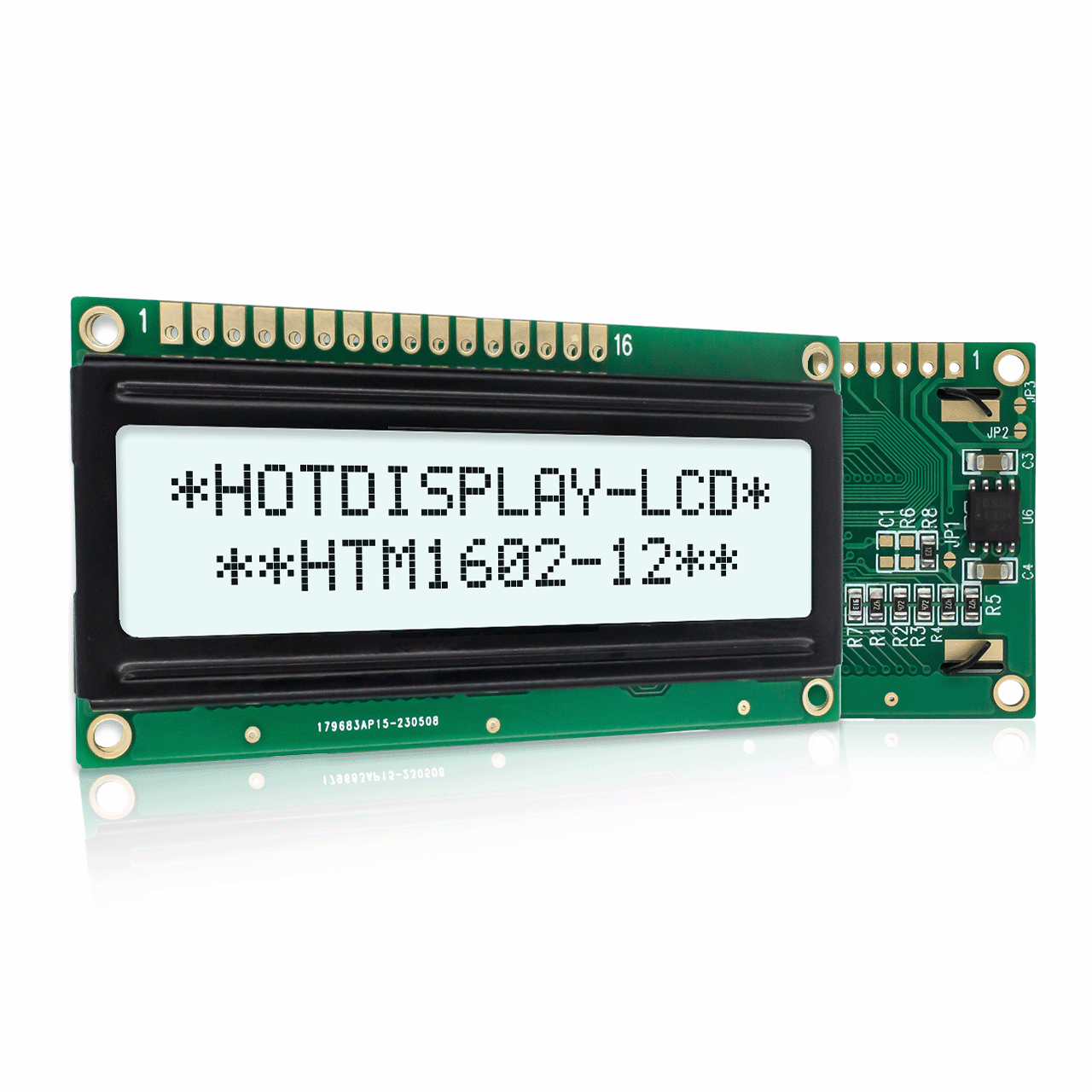

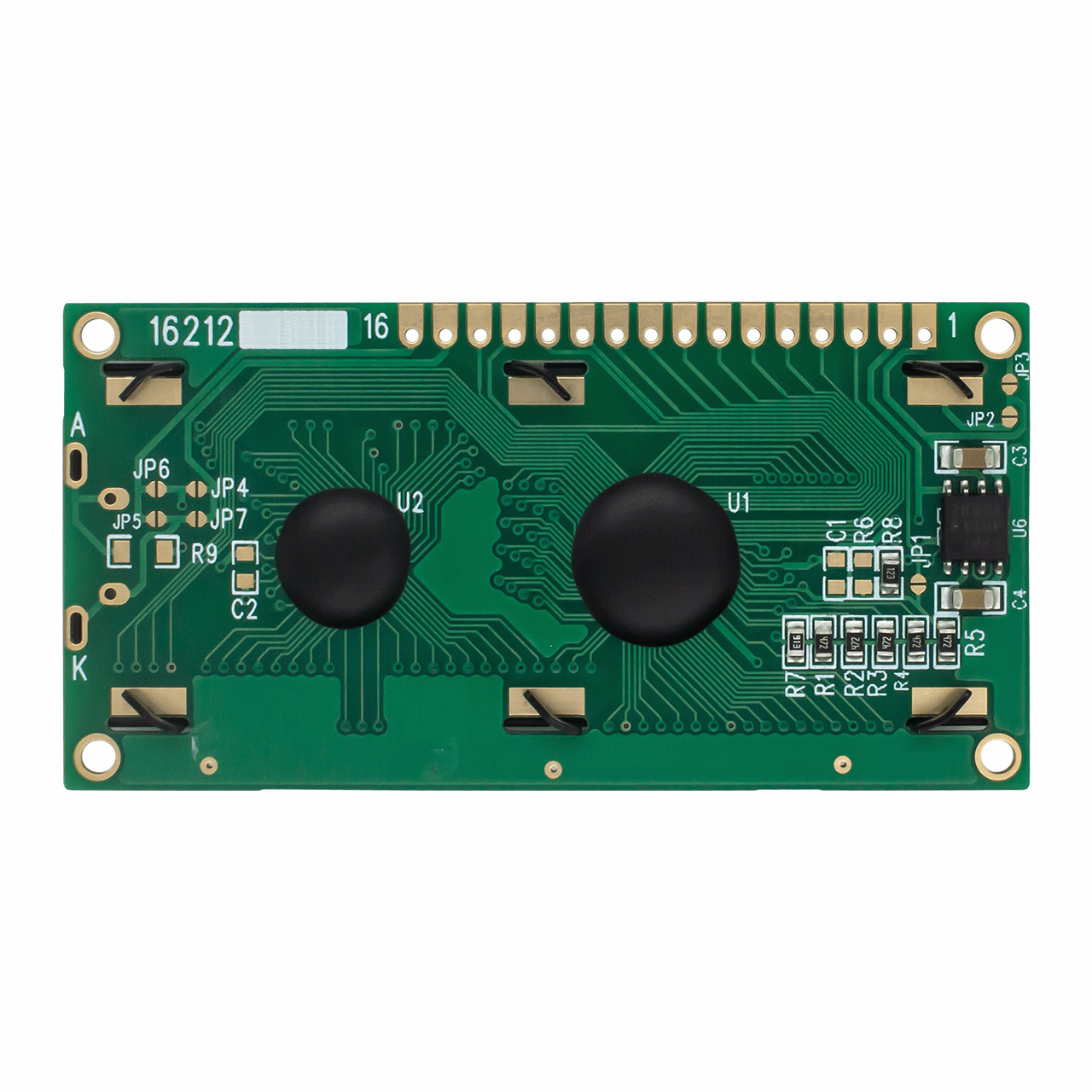

▶ Model: HTM1602-12-31W-A5P

▶ Type: Standard COB character LCD module
▶ Display content: 16x2 characters
▶ Overall dimensions (mm): 72.0x36.0x10.1
▶ VA size (mm): 64.5x16.0
▶ AA size (mm): 56.2x11.5
▶ Point spacing mm: 0.6x0.7
▶ Product application: industrial control
▶ Viewing angle: 6H
▶ Backlight type: white light
▶ Connection method PIN number: 16PIN
▶ Interface mode: MCU/8bit
▶ Special instructions: Anti-static ESD 8KV
▶ Working temperature: -20~70℃
▶ Power supply voltage: 5.0V
▶ Driver chip: ST7066U

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Prev Back Next

Related Accessories

Monochrome COG/Graphic COB/Character COB/OLED module/E-paper module/Segment screen 8051 test board
Monochrome COG/Graphic COB/Character COB/OLED module/E-paper module/Segment screen STM32 test board
Character graphic dot matrix module dedicated adapter board
Single Row Pin Header Connector
COB 20-pin cable base/character/graphic dot matrix

Product Description
Customized Services
Attributes

HTM1602-12-31W-A5P | Arduino-Character 2X16 LCD Mono Display | FSTN+ with Side White Backlight 5.0V
The 16 characters per line 16 model htm1602-12-31w-a5p is a high contrast color on glass (COG) LCD that displays dark pixels against bright white background LED backlight. LCD displays use FSTN (+) forward display technology and provide superior contrast and excellent visibility both in ambient and backlight conditions. This high quality LCD has a wide operating temperature range between - 20 and 70 degrees Celsius and is perfect for all kinds of indoor and outdoor environments. This 16 character 2-line display has a built-in st7066u controller, a six hour viewing angle, and a serial communication interface. LCD devices operate at 5.0 V power supply and guarantee energy efficient operation in a variety of applications. This LCD is compatible with Arduino and other similar boards.

Connector customization: Easily modify any connector on the display to meet your application requirements. Our engineers can solder pin headers, box headers, right-angle connectors, and any other connectors your display may require.

PCB modification: Choose from a variety of changes to the PCB shape, size, pinout, and component layout to perfectly fit your application.

Backlight color customization: The module backlight has a variety of combinations to choose from, including no backlight or yellow-green/blue/white/amber/red/RGB backlight options, with up to 48 effects to choose from. Click on the customization page for reference.

Font Customization: A variety of font libraries are available, including English/Japanese, Western European, Eastern European, Scandinavian European, Cyrillic (Russian), Hebrew/Arabic, and more.

Cable Customization: Adjust cable length, position, and pinout, or add additional connectors. Get a precisely designed cable solution that streamlines and secures your connections.

ITEM	Specification content	Unit
model	HTM1602-12-31W-A5P
resolution	16word × 2lines	dots
Dimensions	72.0x36.0x10.1(MAX)	mm
Visual (VA) area	64.5x16.0	mm
Valid (AA) area	56.2x11.5mm	mm
Point (pixel) size	0.55 × 0.65mm	mm
Point (pixel) spacing	0.60 × 0.70	mm
IC	ST7066
voltage	5.0V	V
backlight	White light
model	FSTN+
Drive mode (Duty)	duty cycle 1/16
type	character
characteristic	transflective
