Character LCD Modules |1X16 monochrome STN+ Gray with Yellow/Green Side Backlight 5.0V-Arduino

Character LCD Modules |1X16 monochrome STN+ Gray with Yellow/Green Side Backlight 5.0V-Arduino

▶ Model: HTM1601C-11Y-A5P

▶ Product type: Character LCD Modules
▶ Display content: 16x1 characters
▶ Overall dimensions (mm): 122.0x33.0x8.0
▶ View window size (mm): 99.0x13.0
▶ Display size (mm): 94.73x9.56
▶ Point spacing mm: 1.17x1.04
▶ Product application: industrial control
▶ Viewing angle: 6H
▶ Backlight: yellow/green light
▶ Number of PINs: 16PIN
▶ Interface: MCU
▶ Special instructions: Anti-static ESD 8KV
▶ Working temperature: -20~70℃
▶ Power supply voltage: 5.0v
▶ Driver chip:ST7066U

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Prev Back Next

Related Accessories

Monochrome COG/Graphic COB/Character COB/OLED module/E-paper module/Segment screen 8051 test board
Monochrome COG/Graphic COB/Character COB/OLED module/E-paper module/Segment screen STM32 test board
Character graphic dot matrix module dedicated adapter board
Single Row Pin Header Connector
COB 20-pin cable base/character/graphic dot matrix

Product Description
Customized Services
Attributes

Character LCD Modules |1X16 monochrome STN+ Gray with Yellow/Green Side Backlight 5.0V-Arduino

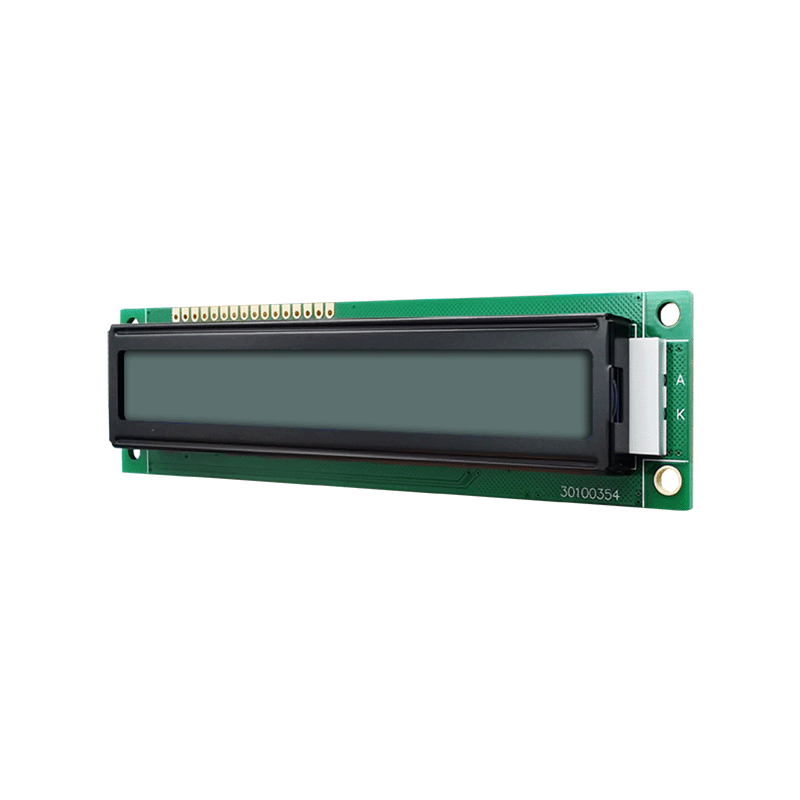

Character LCD Modules This single-line 16 character high quality LCD with dark pixels on a bright yellow/green background when activated. The controller/controller for this model is ST7066U. It works with a supply voltage of 5 V and complies with the RSP, which guarantees compliance with environmental and health standards. The LCD display has a wide operating temperature range of -20 to 70 degrees Celsius, making it suitable for various environments. This HTM1601C - 11Y - A5P transfective LCD screen can be viewed in ambient light or backlighting, providing flexibility in various lighting conditions. The ideal viewing angle for this Arduino compatible 16-character LCD screen is 6:00.

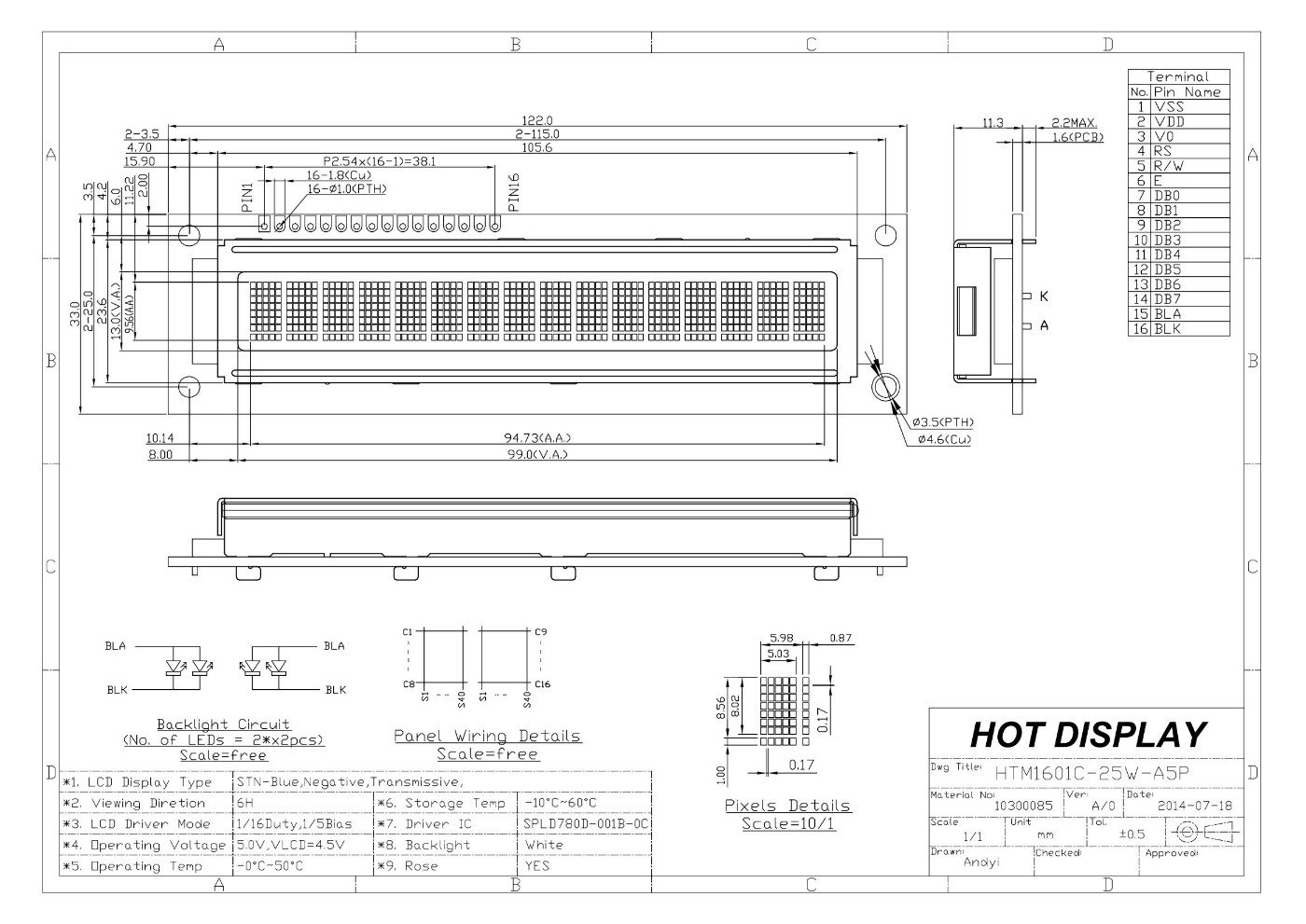

parameter	Parameter Description	Unit
name	HTM1601C-25W-A5P
Character display line	16 words × 1 lines	dots
Dimensions	122x33x11.3 (MAX)	mm
VA size	99x13	mm
AA size	94.73x9.56	mm
Pixel pitch	1.04x1.17	mm
driver chip	ST7066U
Application voltage	5V	V
back light	Yellow/green
display mode	STN(+)
Drive mode	1/16 duty cycle
product type	Character LCD module
Polarizer type	Transflective polarizer
