character LCD modules |mono 1X16 STN（-） blue background with white backlight-Arduino

character LCD modules |mono 1X16 STN（-） blue background with white backlight-Arduino

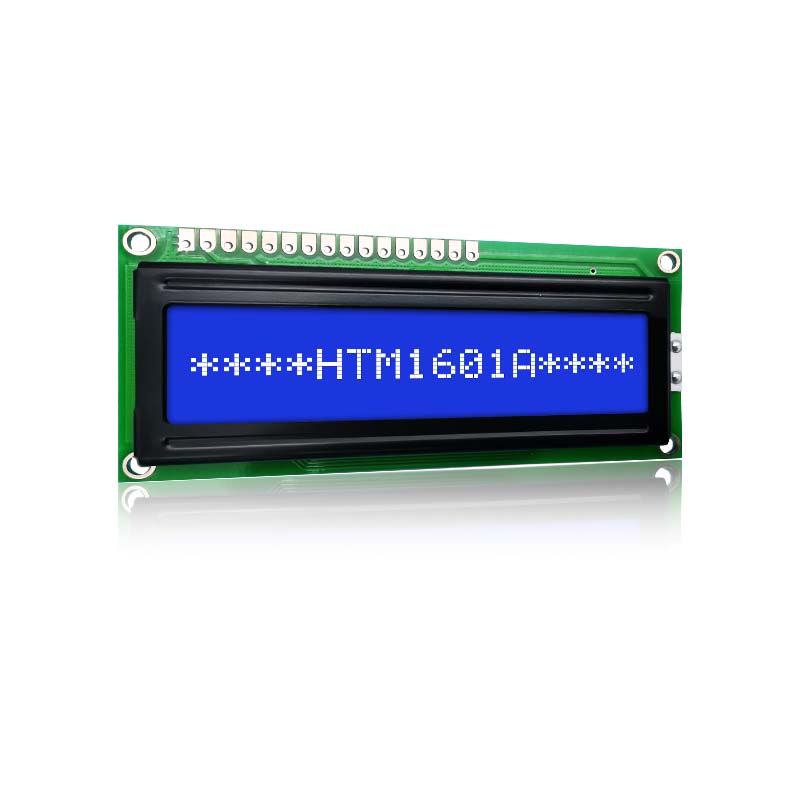

▶ Model: HTM1601A-25W-A5P

▶ Product type: character LCD modules
▶ Display content: 16x1 characters

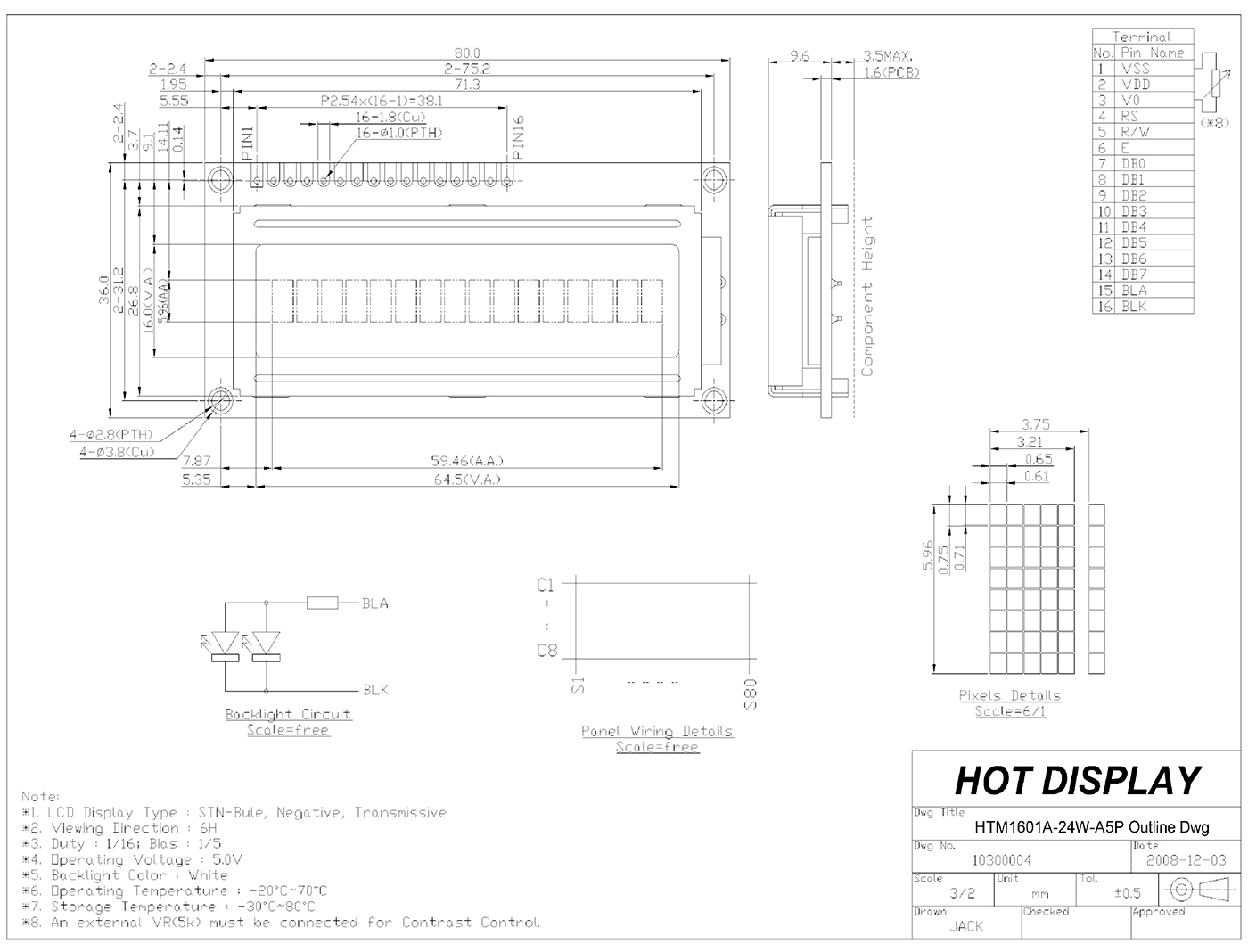

▶ Overall dimensions (mm): 80.0x36.0x13.1
▶ View window size (mm): 64.5x16.0
▶ Display size (mm): 59.46x5.96
▶ Point spacing mm: 0.65x0.75
▶ Product application: industrial control
▶ Viewing angle: 6H
▶ Backlight: white light
▶ Number of PINs: 16PIN
▶ Interface: MCU
▶ Special instructions: Anti-static ESD 8KV
▶ Working temperature: -20~70℃
▶ Power supply voltage: 5.0v
▶ Driver chip:ST7066U

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Prev Back Next

Related Accessories

Single Row Pin Header Connector
COB 20-pin cable base/character/graphic dot matrix

Product Description
Specification
Attributes

character LCD modules |mono 1X16 STN（-） blue background with white backlight-Arduino
character LCD modules HTM - 1601A - 25W - A5P is an excellent choice for users looking for a reliable and friendly 16 character unique LCD. It operates on a 5V power source and can be integrated with Arduino/C8051 and other similar boards and microcontrollers. The reflective monochrome display ensures the perfect performance of C, C+ and Python and supports parallel communication.

Project	Specification content	Uint
model	HTM-1601A-25W-A5P
Word x line	16 words × 1 line	dots
Module Size	80.0x36.0x13.1 (MAX)	mm
Visible (VA) area	64.5x16.0	mm
Effective (AA) area	59.46x5.96	mm
Point (pixel) spacing	0.65x0.75	mm
IC	ST7066U
supply voltage	5V	V
Backlight	White light
mode	STN(-)
Duty driving mode	1/16 duty cycle
type	Character LCD module
characteristic	Total transparent reflection polarizer
