2.0 inch TFT LCD module | Resolution 240x320 | High brightness TFT | Sunlight readable TFT display module | ST7789 controller

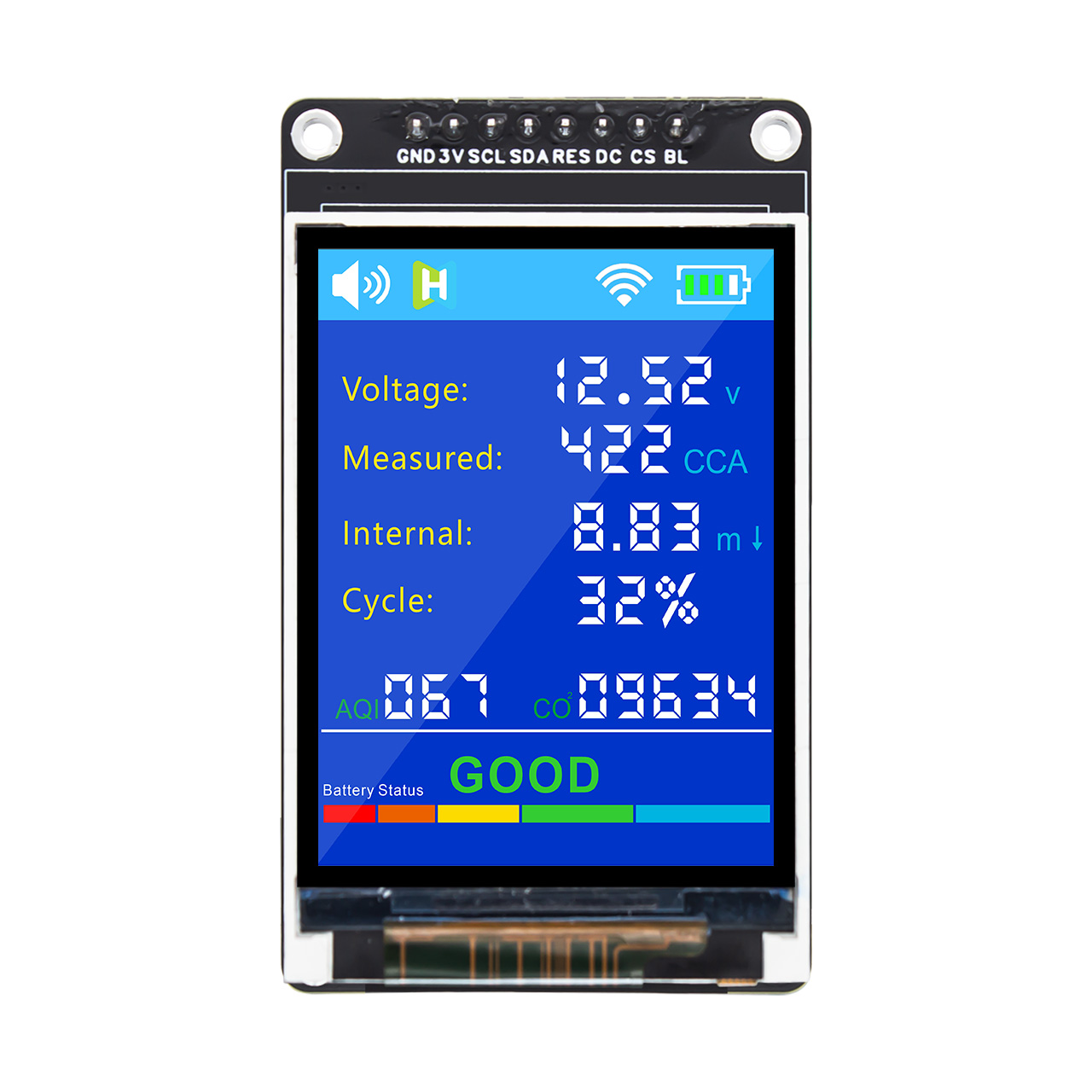

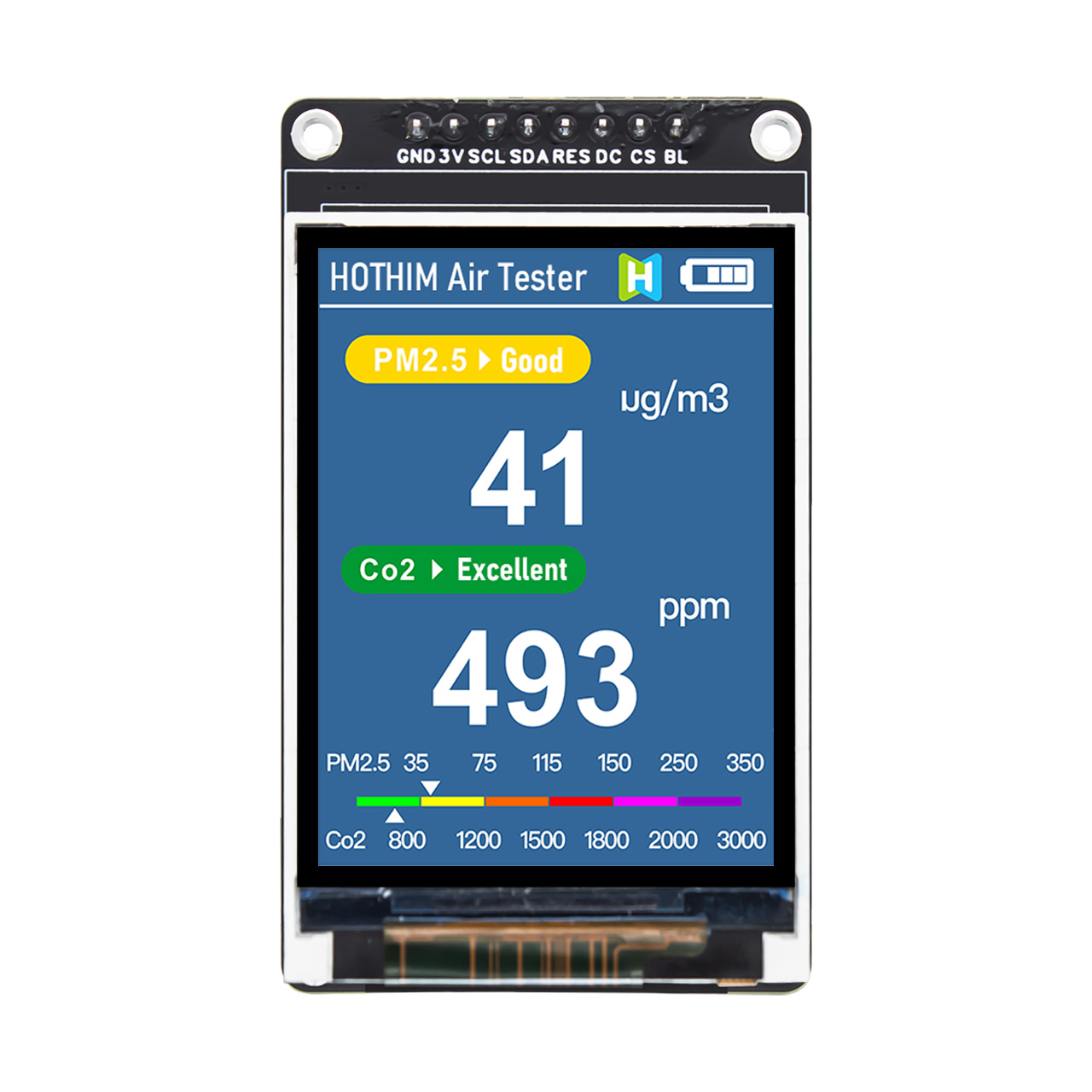

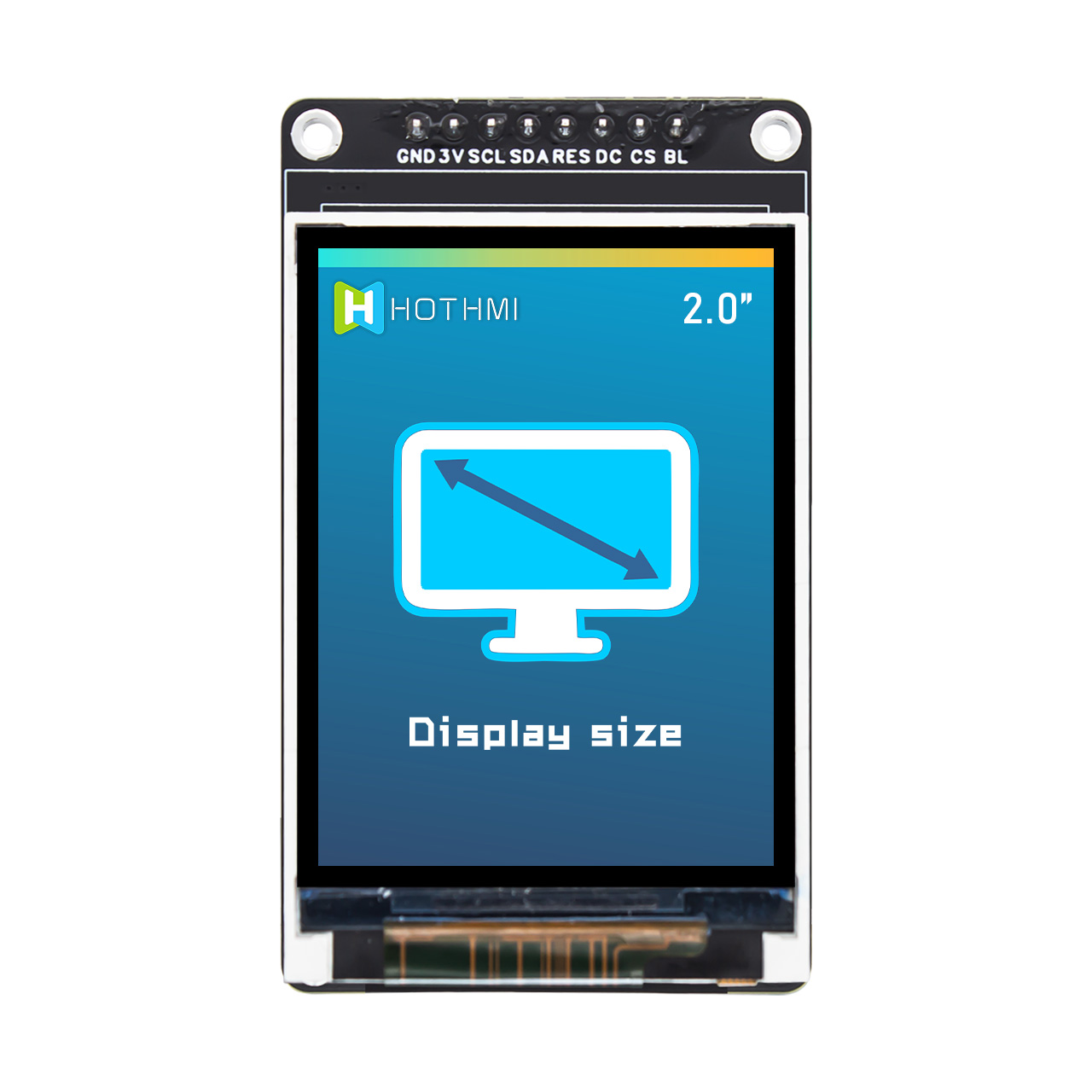

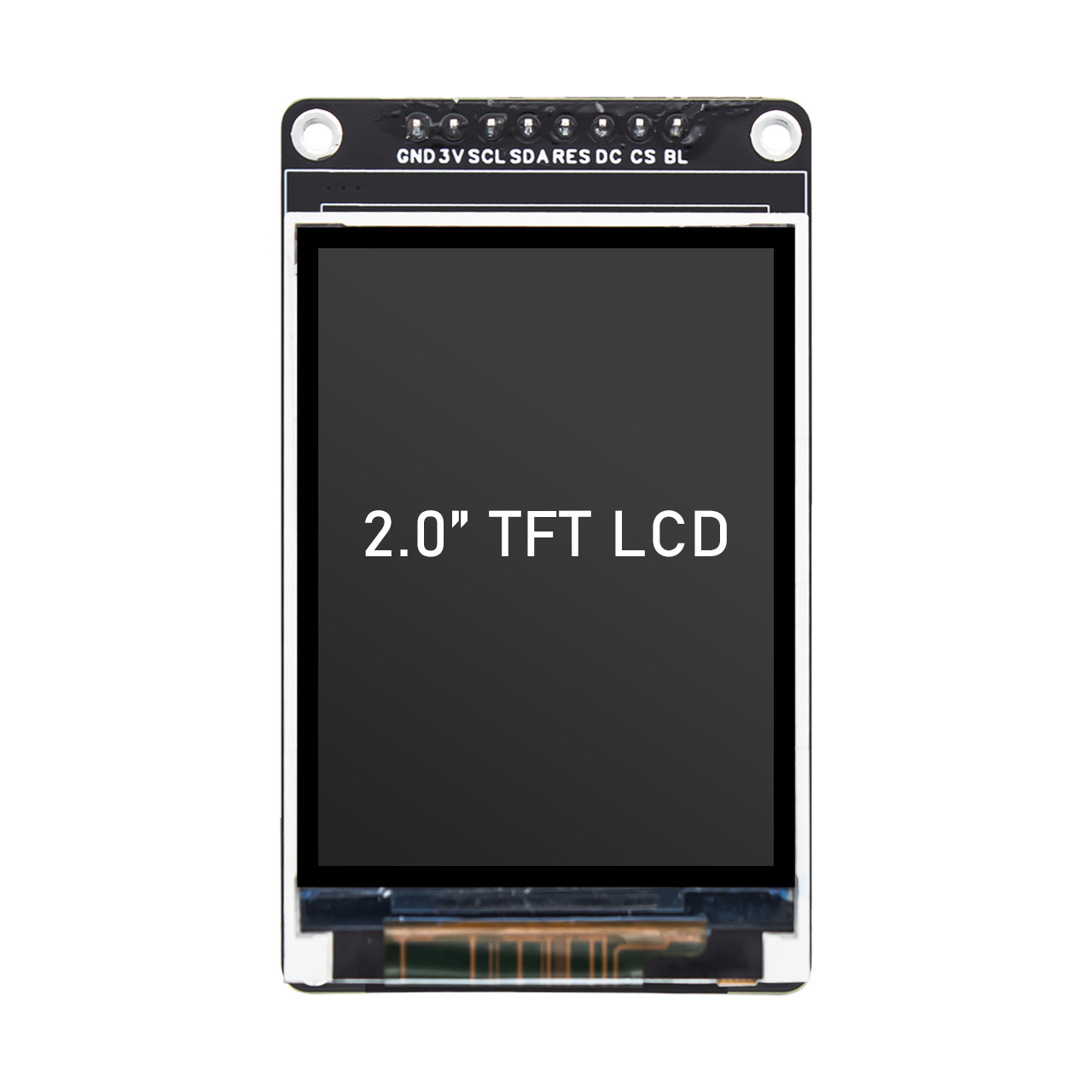

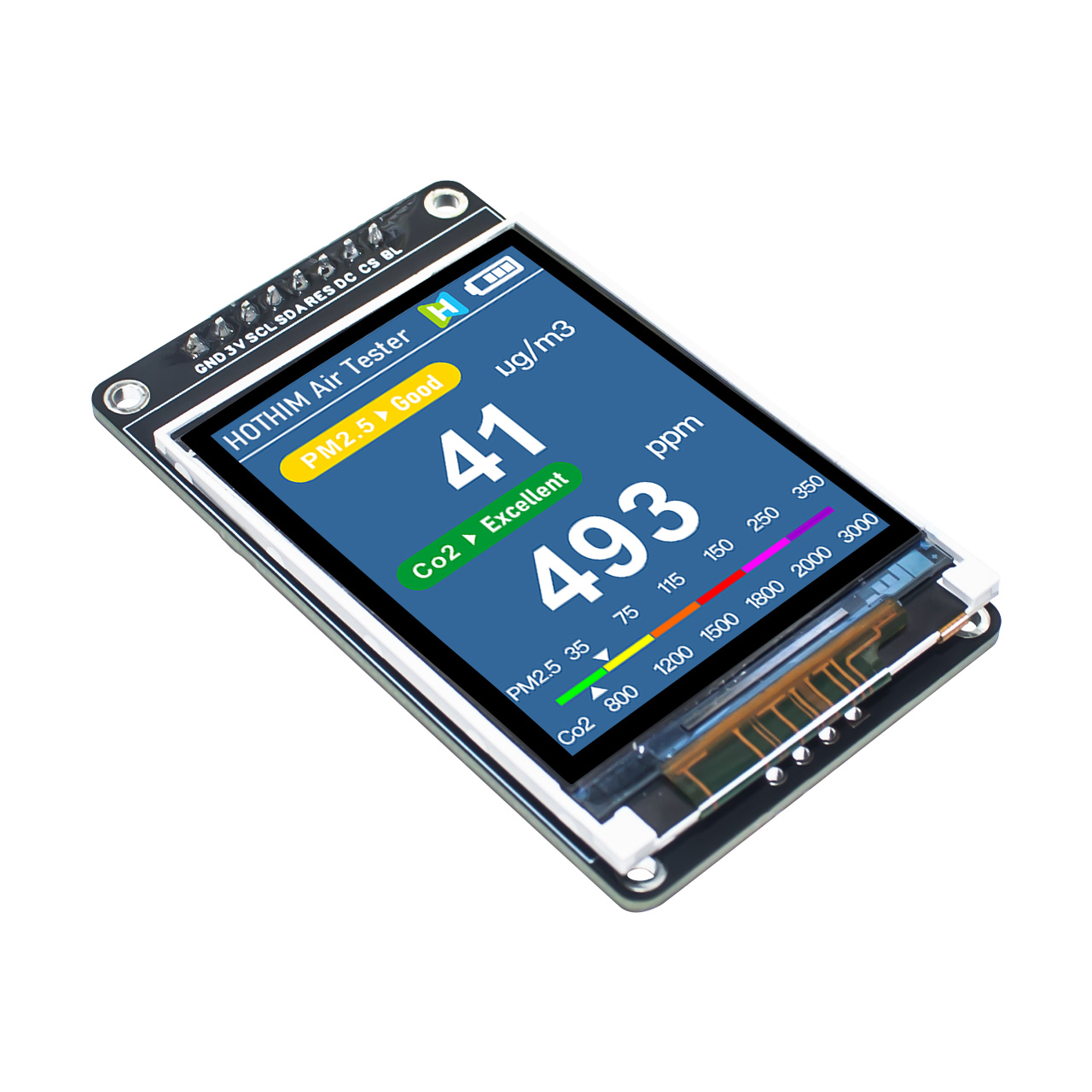

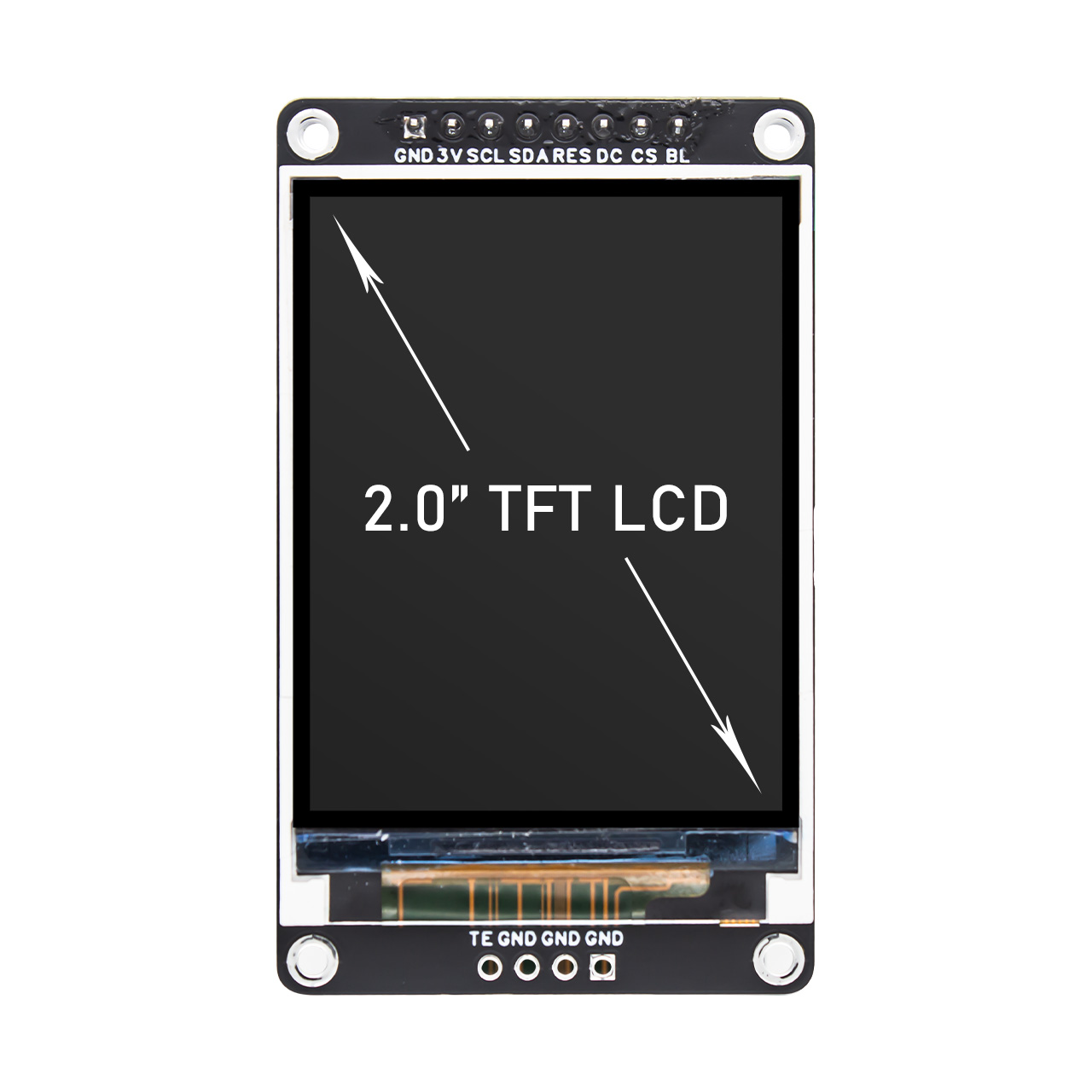

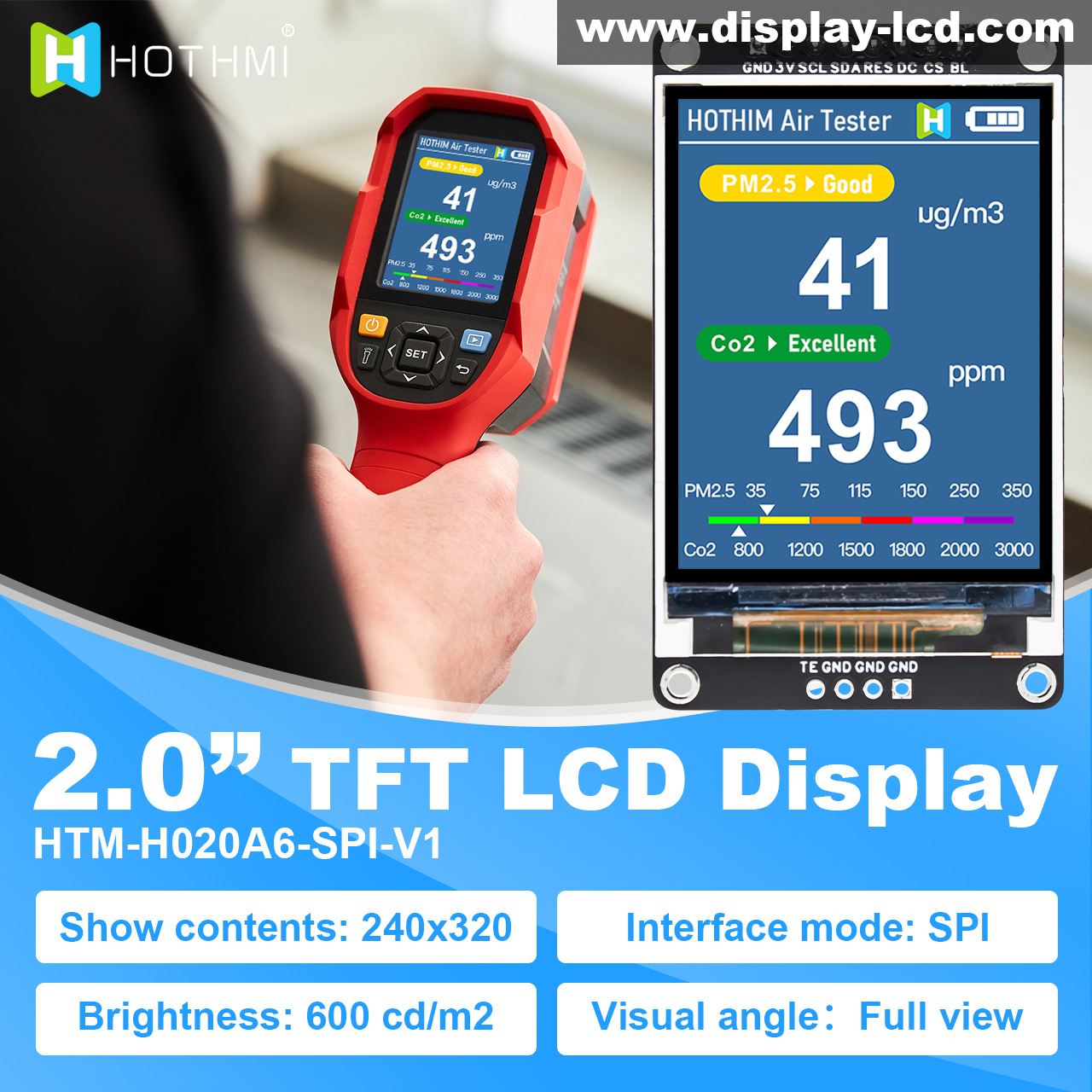

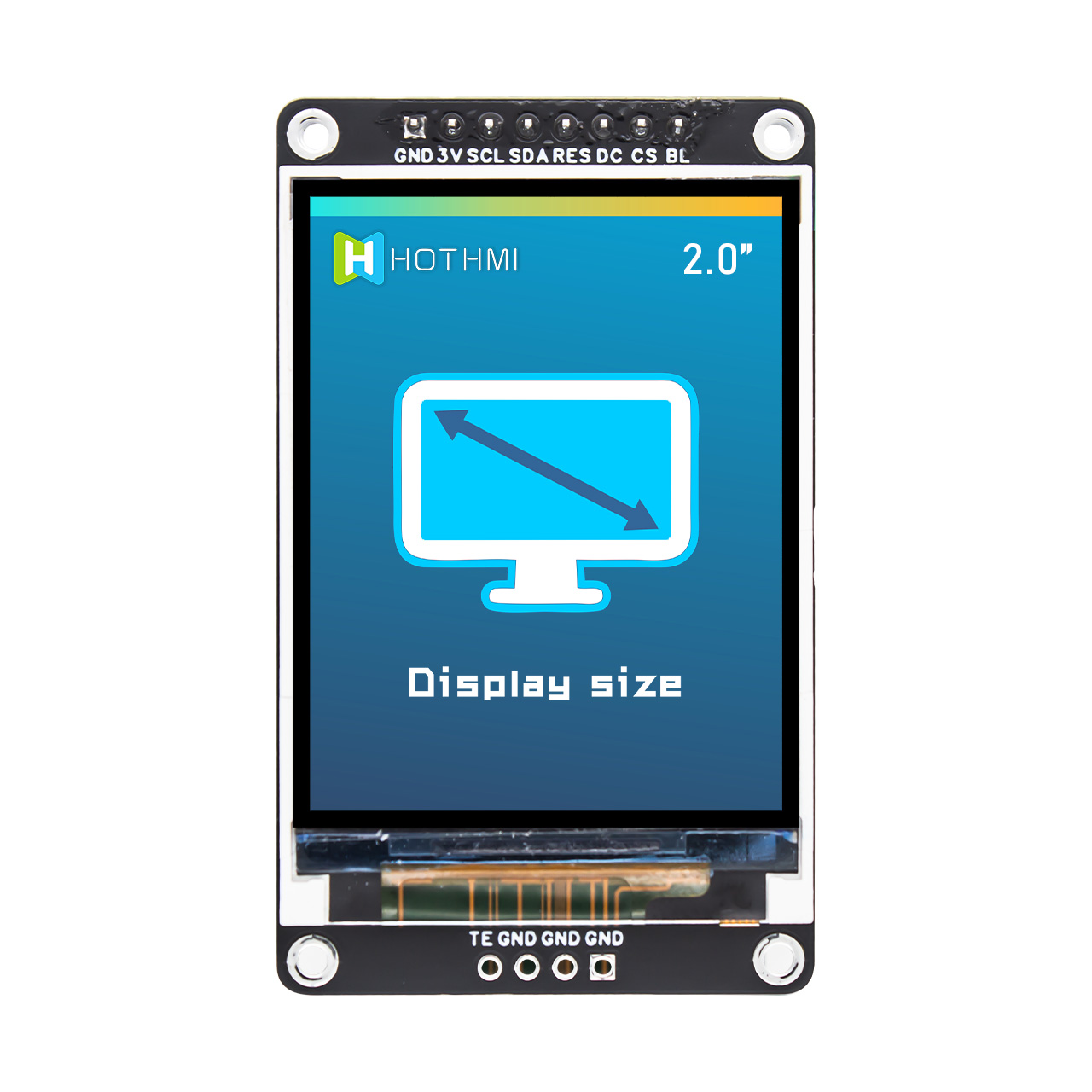

This 2.0-inch HTM-H020A6-SPI-V1 display module condenses the delicate visual experience in the palm of your hand. When the screen is turned on, the 240x320 resolution is spread out on the 2-inch exquisite canvas, and the pixel arrangement is so precise that it is almost imperceptible. Whether browsing clear text information or enjoying vivid images, it can present satisfactory sharpness and details. 60% NTSC color gamut coverage gives the picture full and vivid color expression, and the color transition is natural and rich in layers, as if miniaturizing the colorful real world in a small space, bringing a pleasant visual enjoyment.

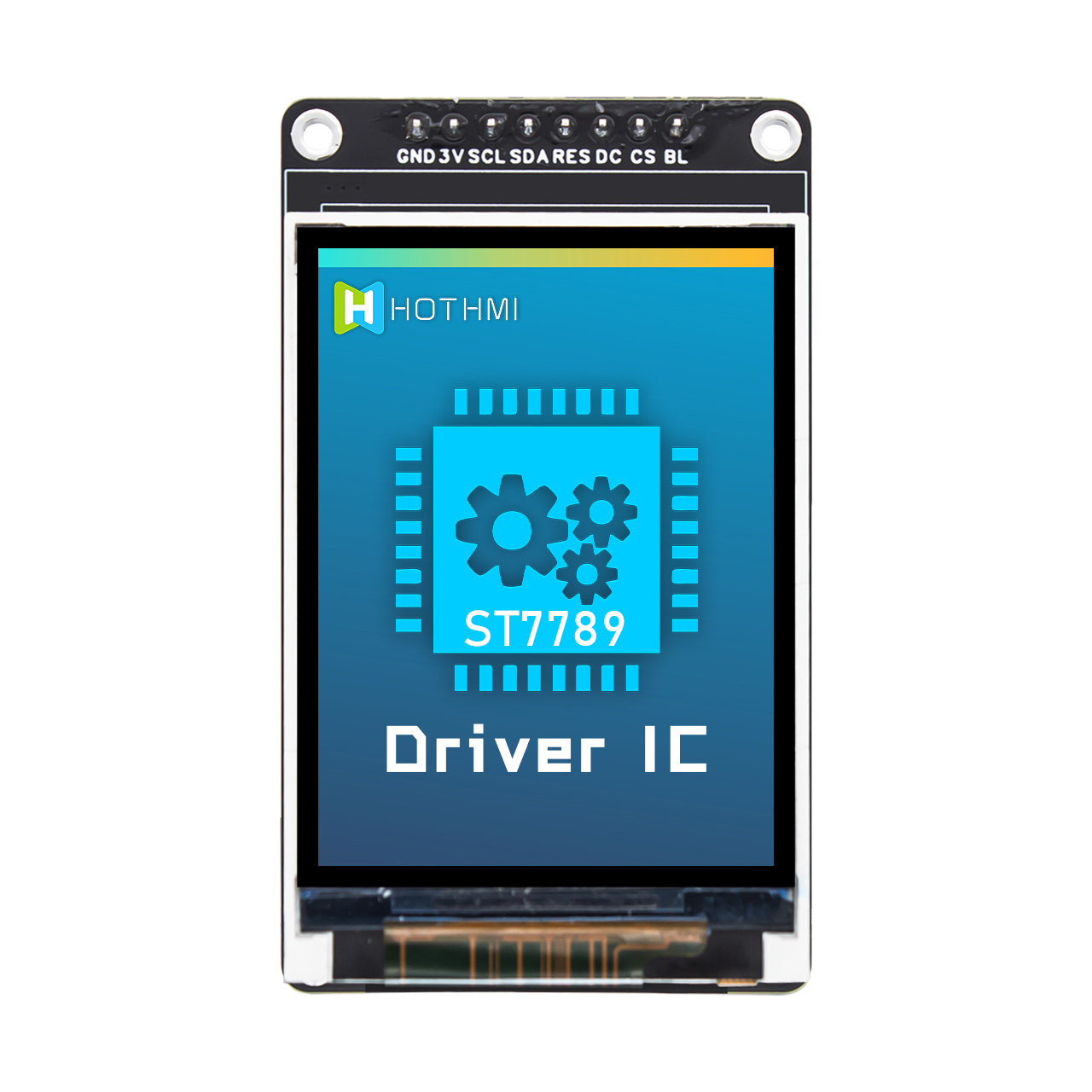

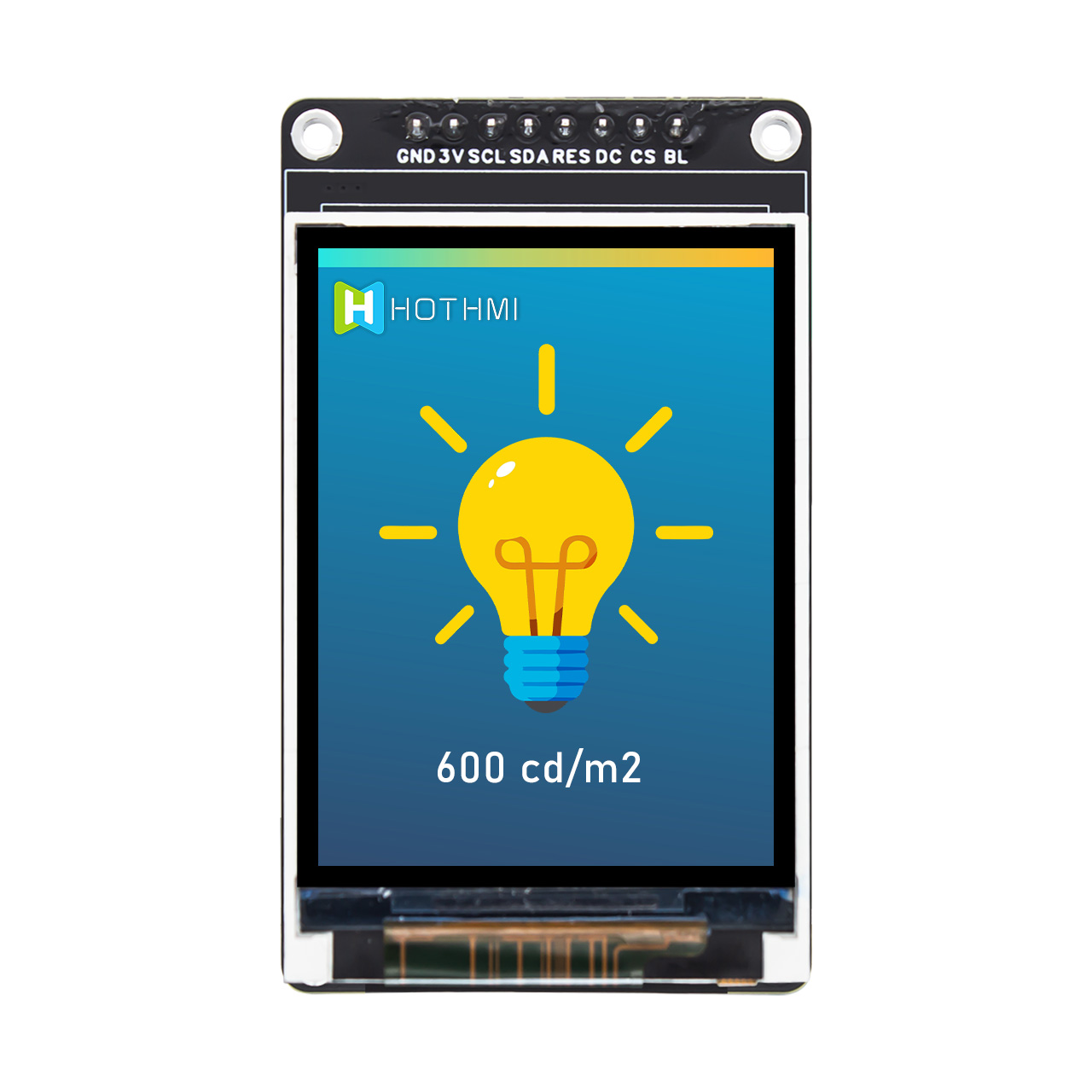

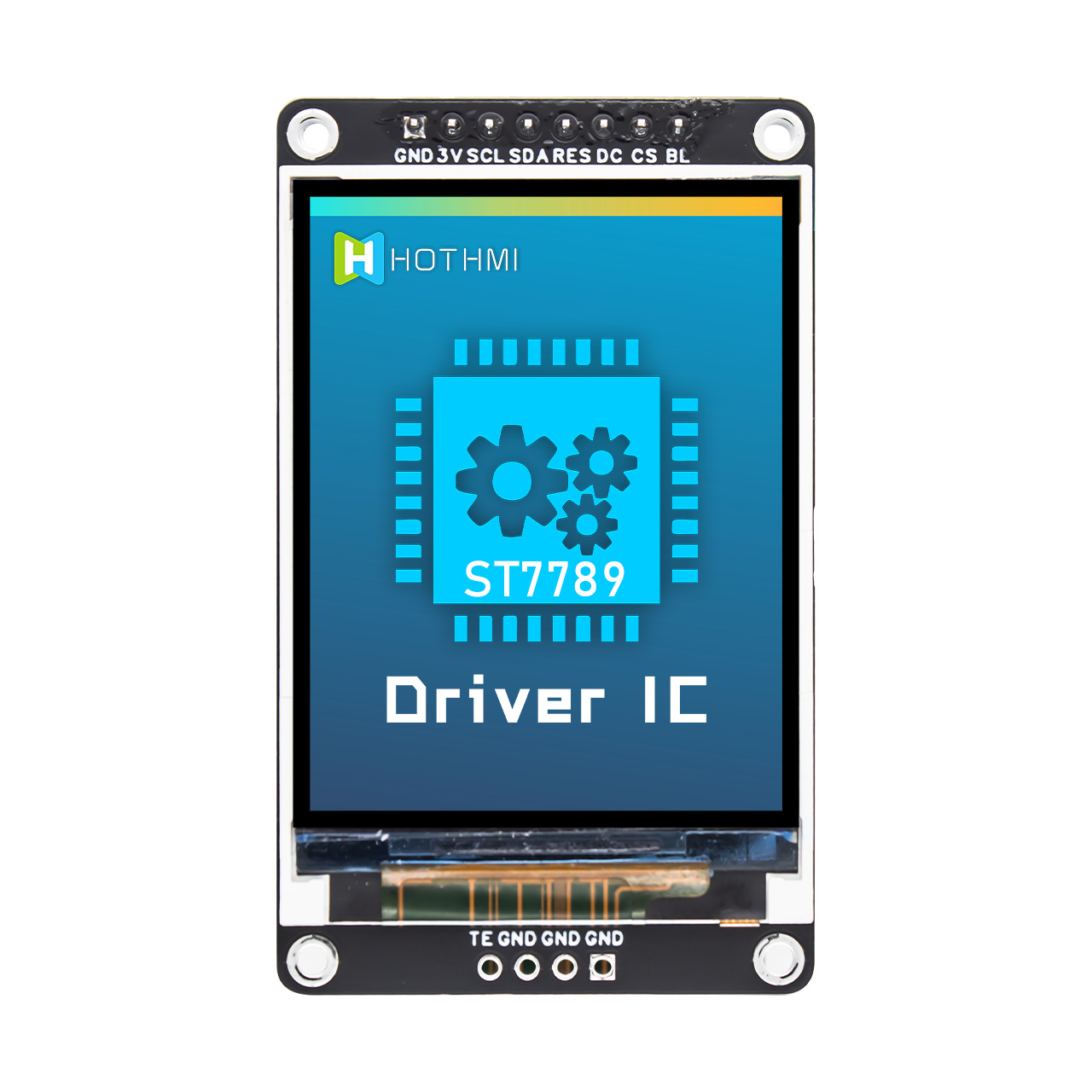

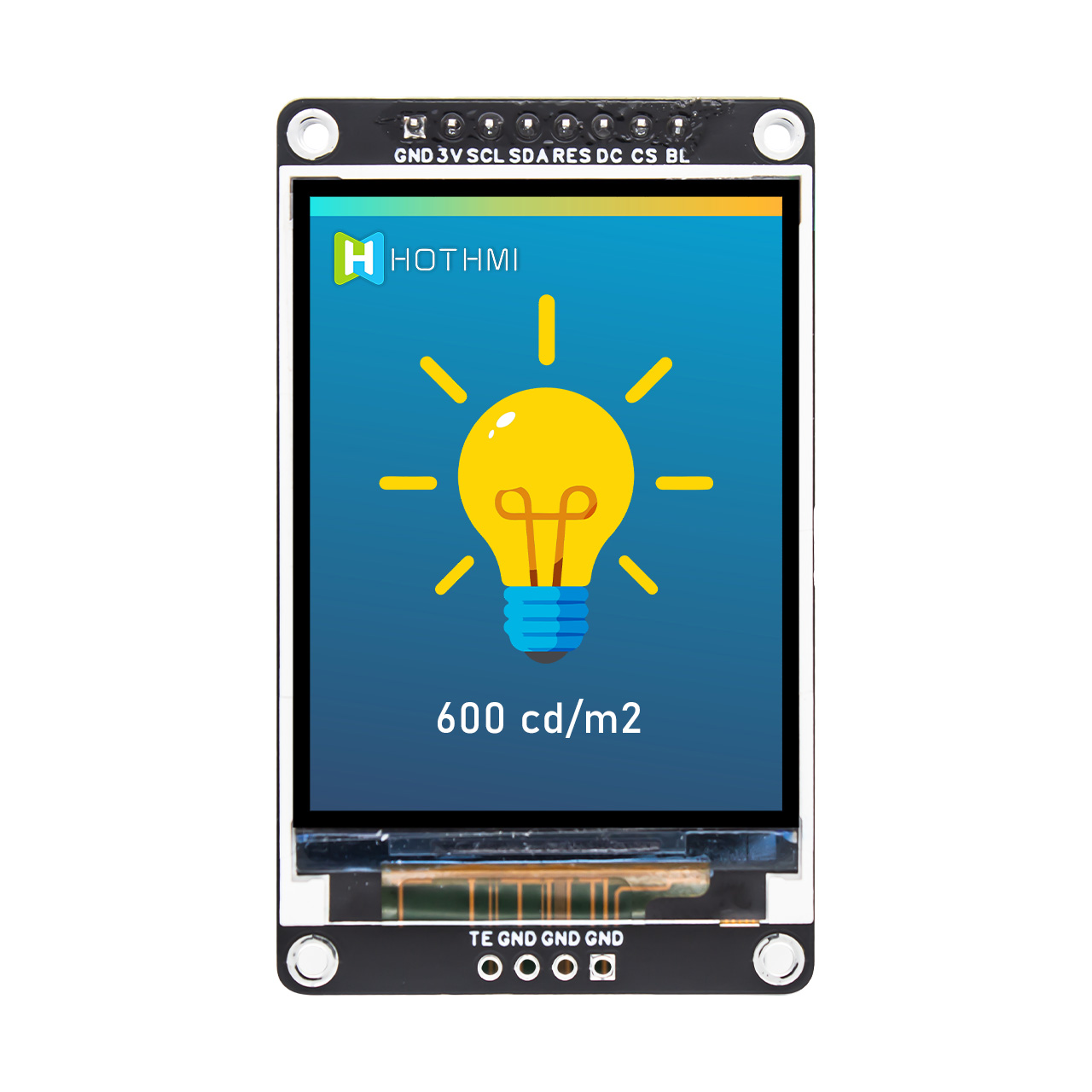

Its core uses the widely recognized ST7789 driver chip, which can be easily driven through a simple and efficient 4-wire 8-bit serial interface (SPI), greatly simplifying your integration work. The screen operates stably in a wide operating voltage range of 2.8V to 3.3V, providing reliable performance guarantee whether it is used as a display window for portable devices or an information terminal for embedded systems. It is particularly worth mentioning that the typical brightness of up to 600 cd/m² (measured under constant current backlight conditions) makes the screen clear and bright even in bright sunlight or in a well-lit indoor environment, effectively improving the user experience in various scenarios.

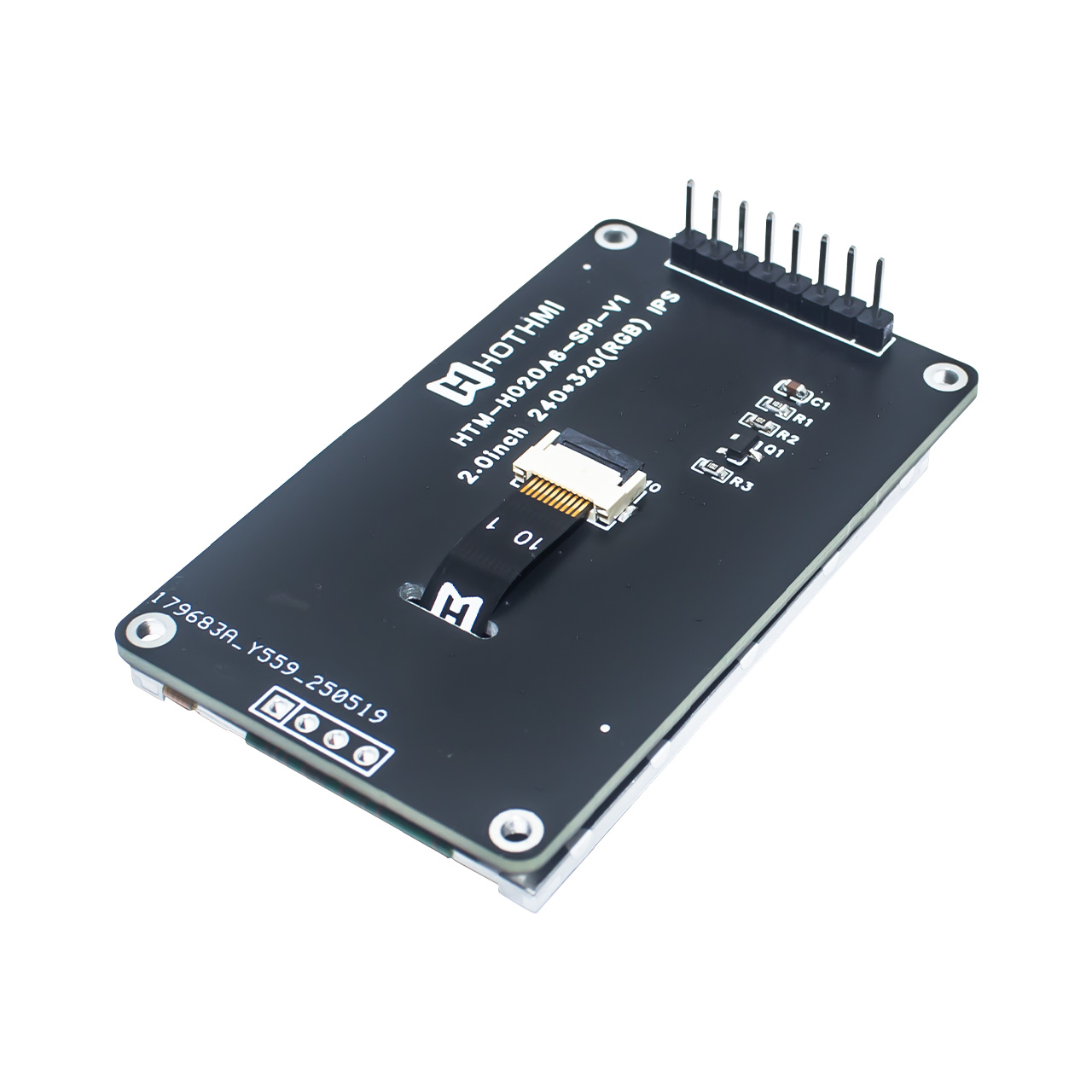

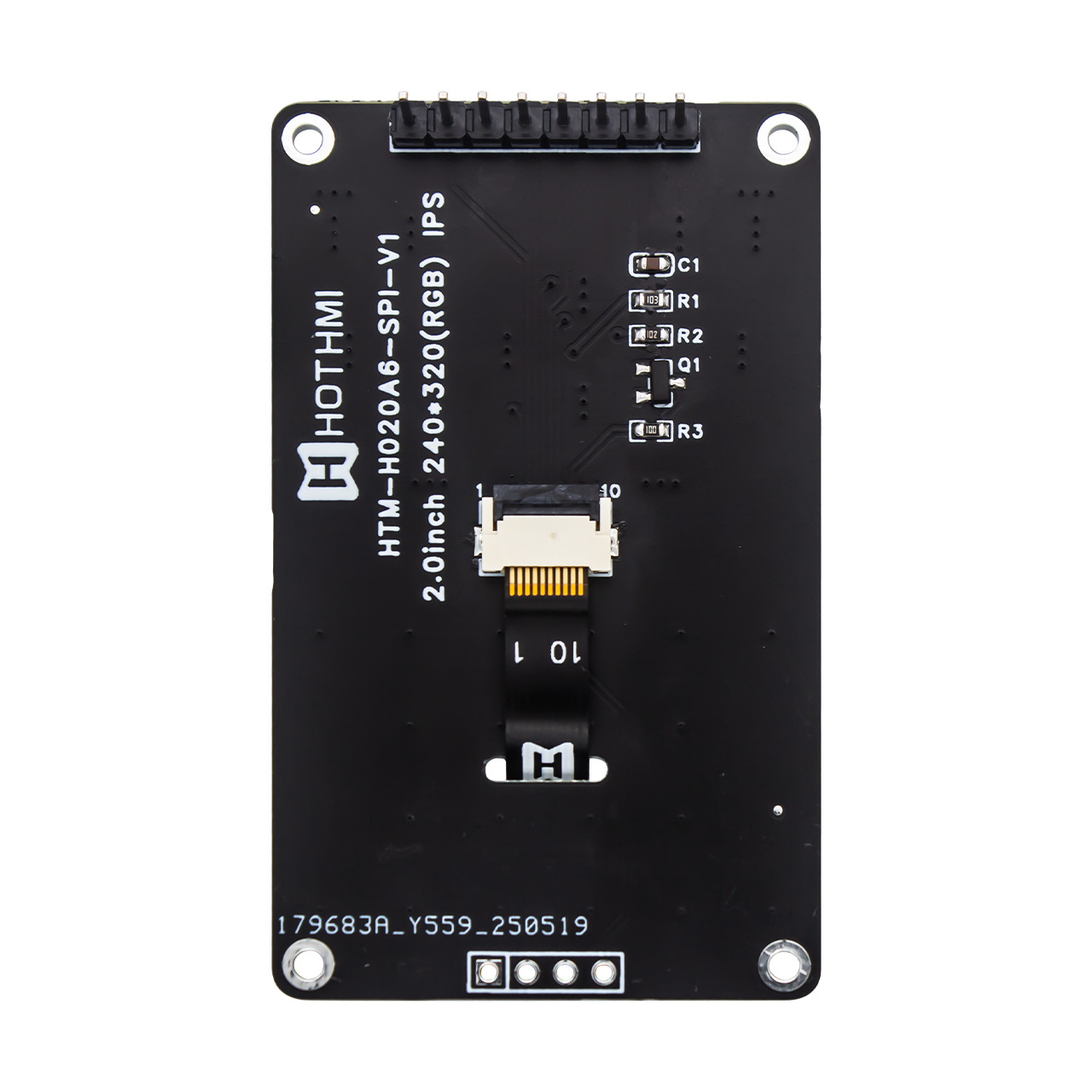

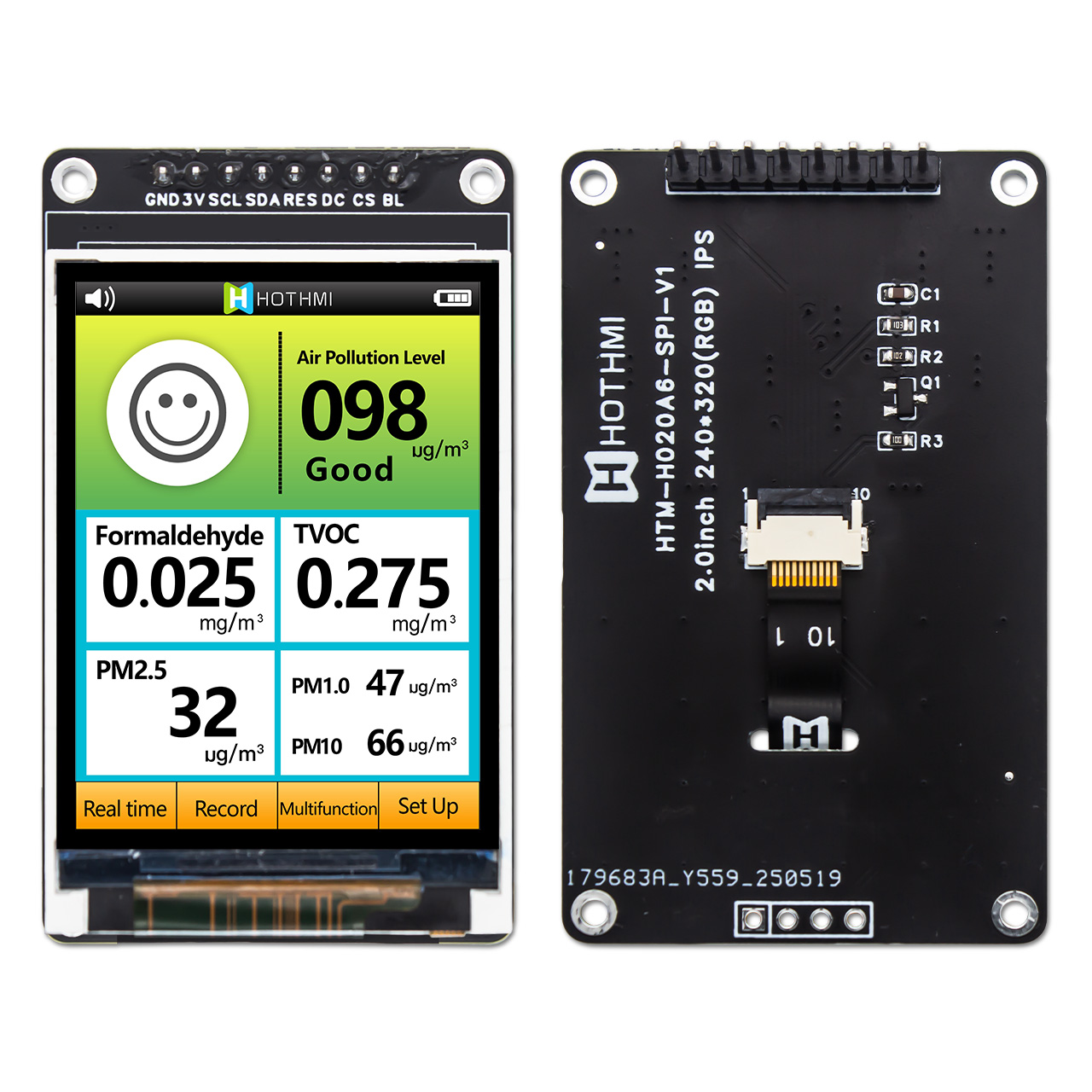

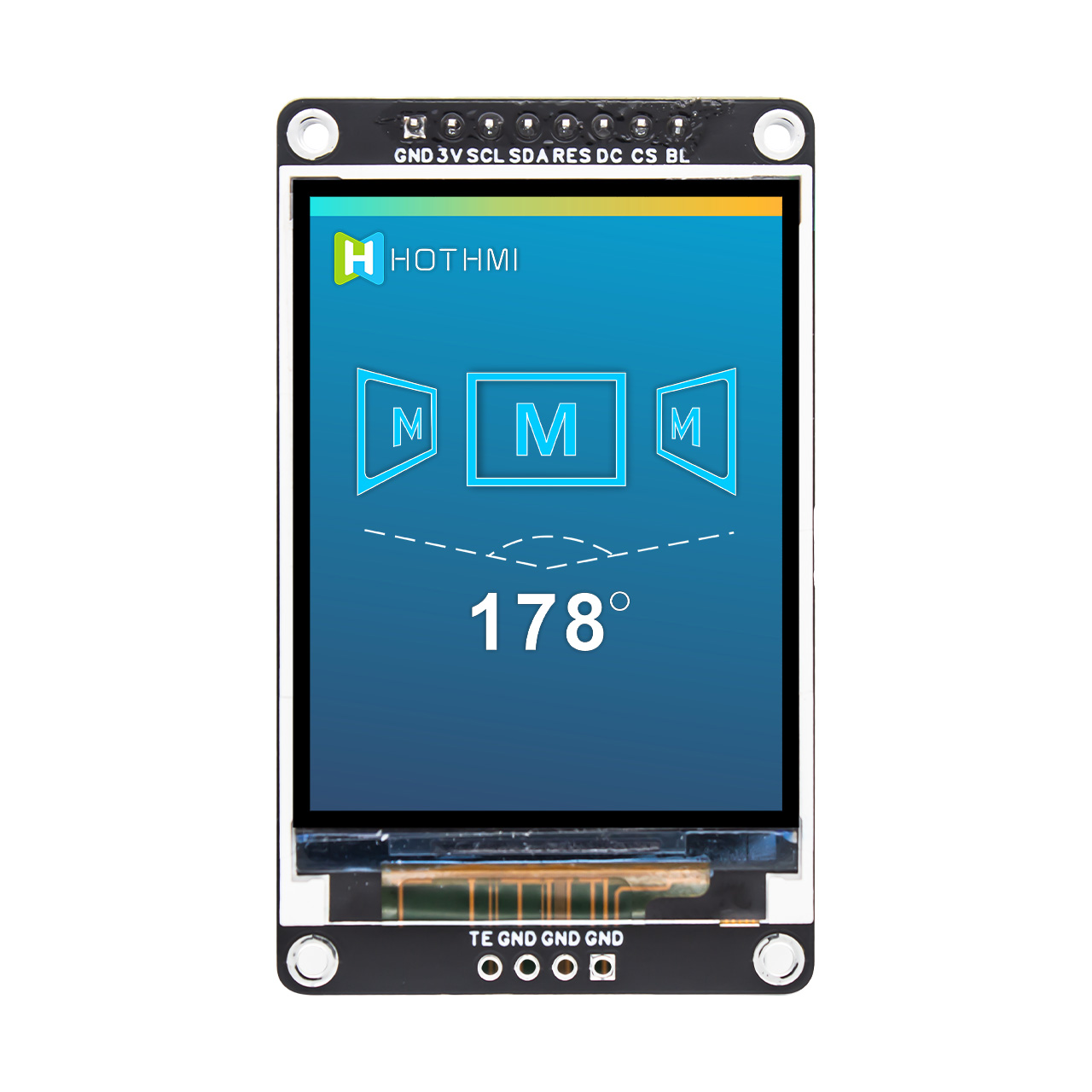

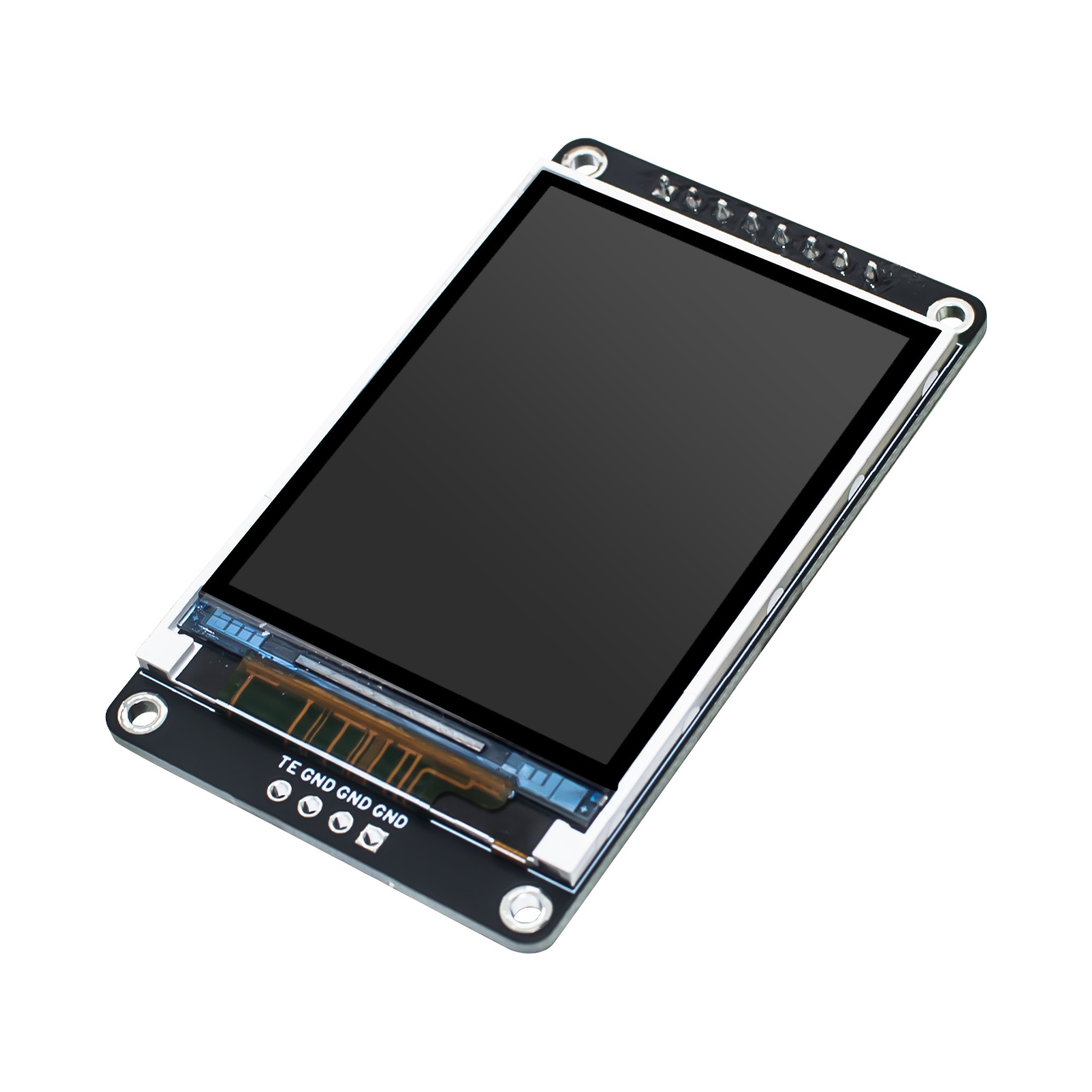

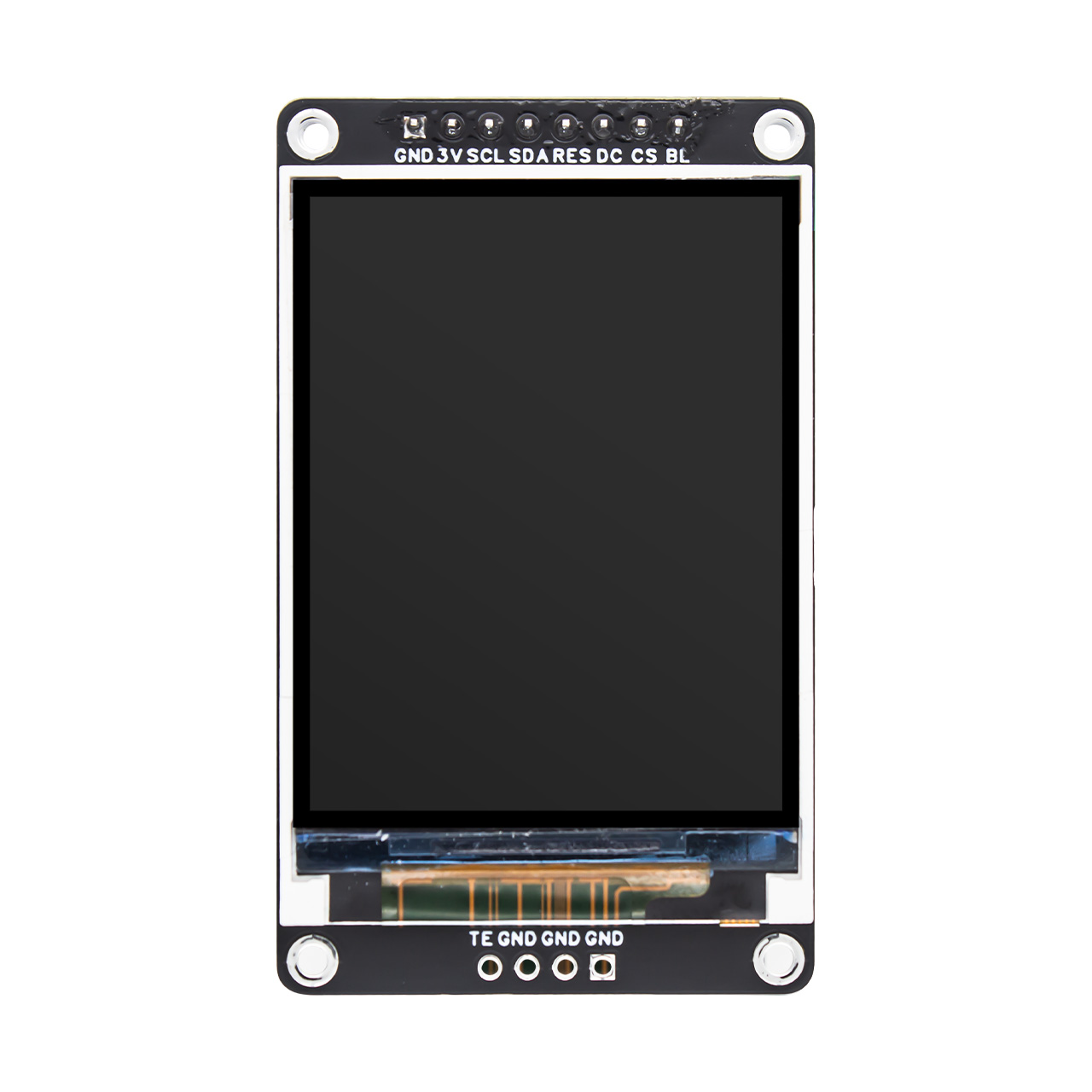

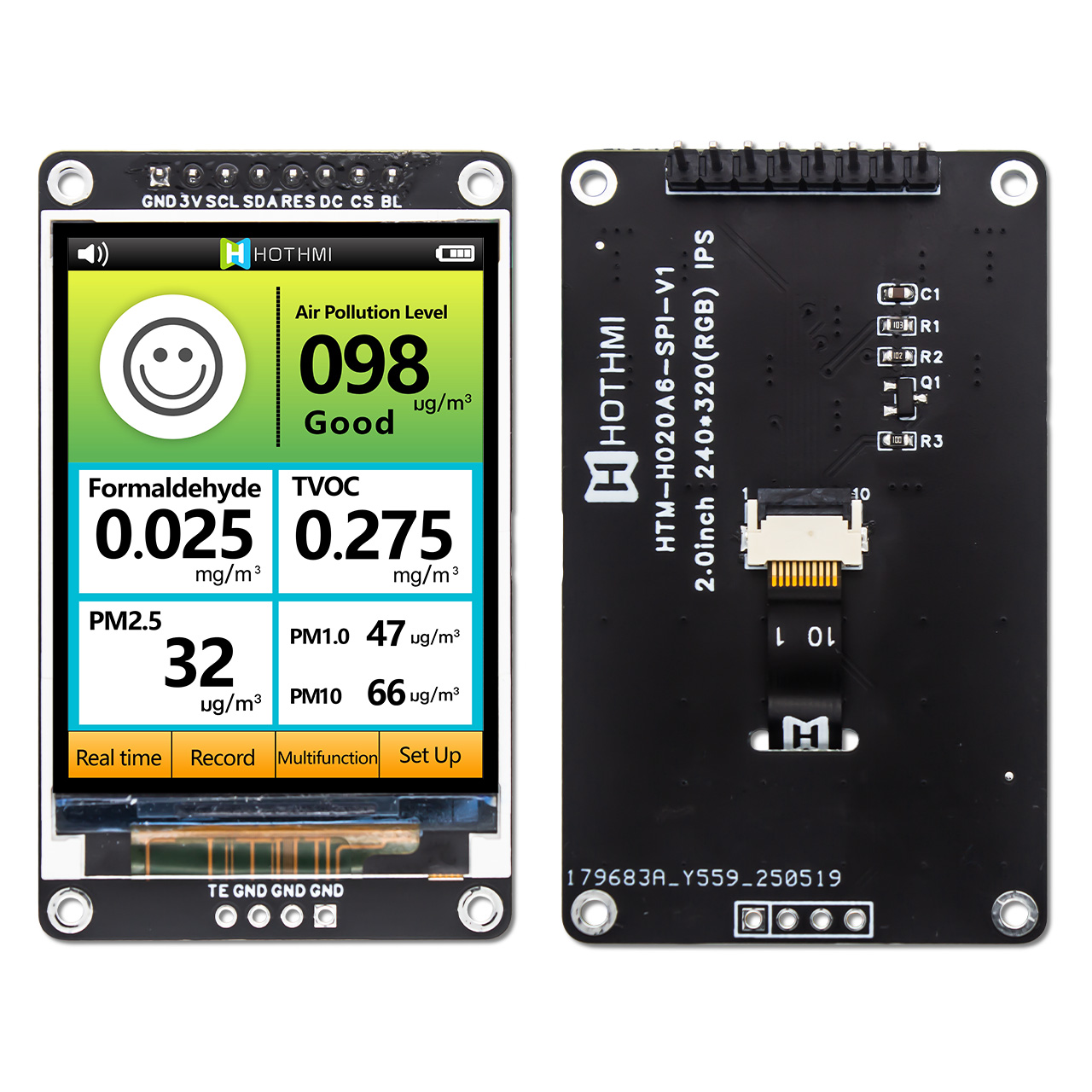

The driver board of this 2.0-inch sunlight-readable SPI TFT LCD module is equipped with an easy-to-disassemble and assemble connector. Users only need to perform simple operations to separate the display from the driver board; at the same time, the driver board transmits the display signal through metal pins to achieve smooth transmission between the device and the display module. In addition to realizing conventional signal transmission on the metal pins on the driver board of this module, we also merge the backlight into the same pin control. Under this function, this display module realizes the function of PWM dimming, and users can selectively use TE signals. This model of module can still operate stably in extreme temperature environments of -30℃ to +80℃, meeting the requirements of stringent industrial applications.

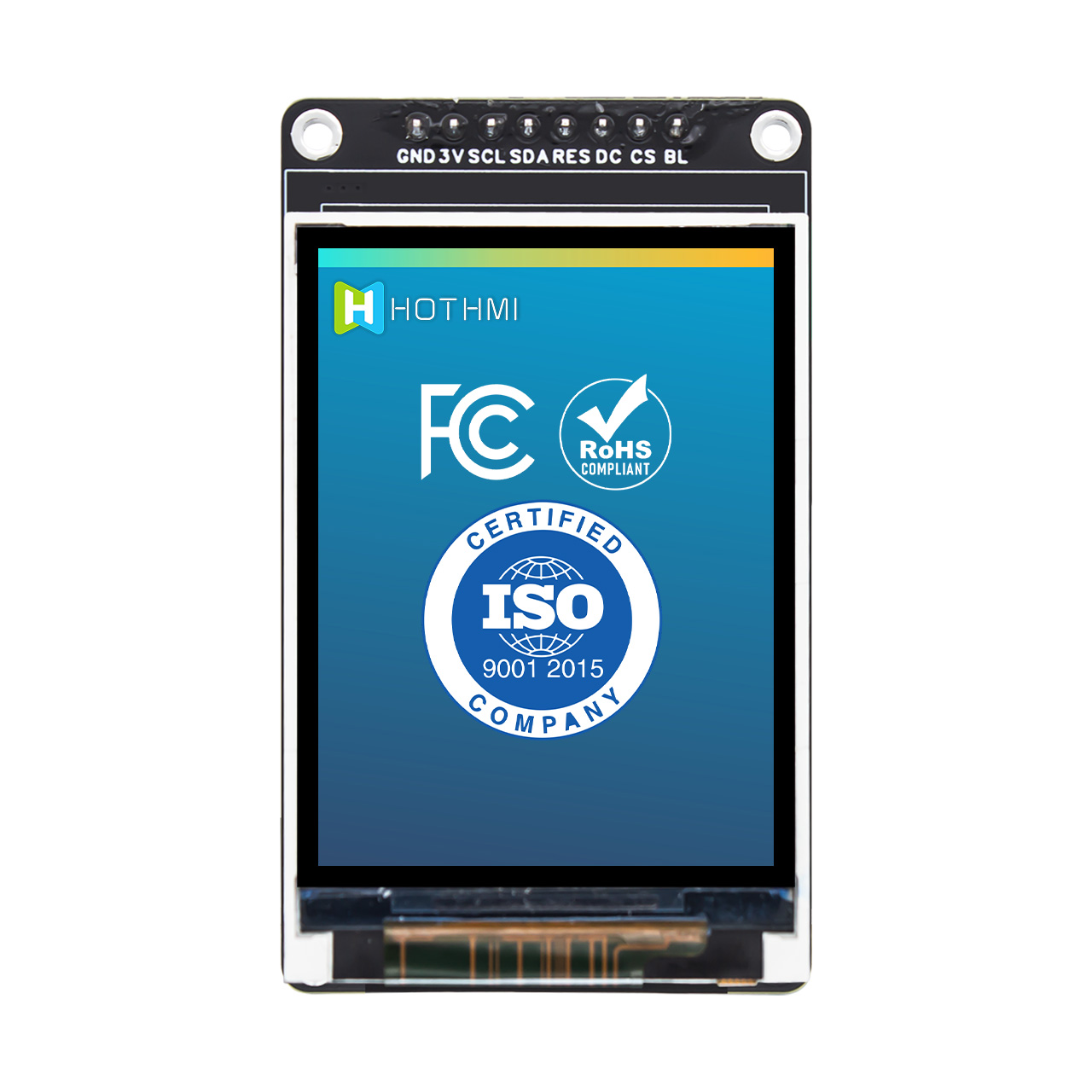

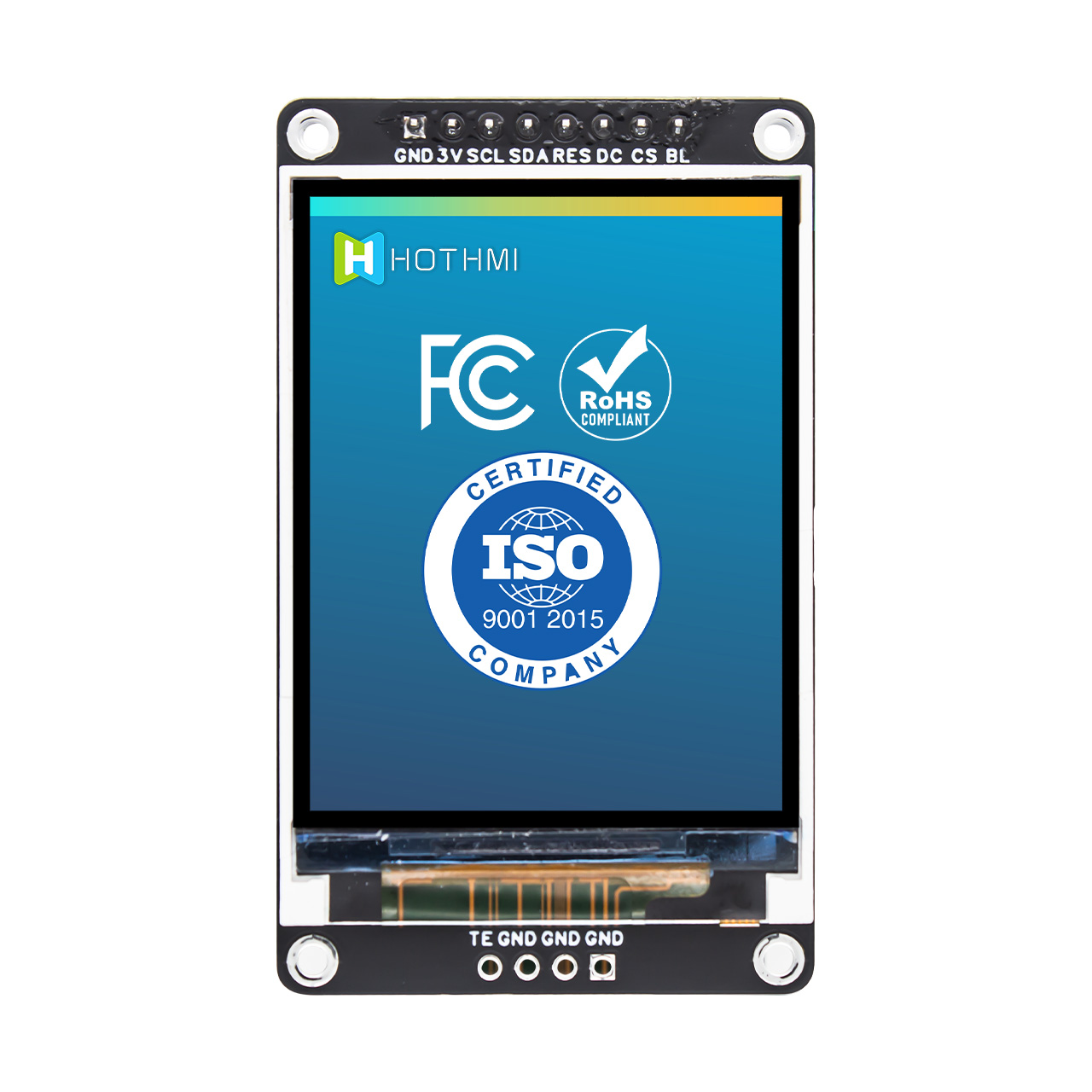

The TFT LCD display associated with this module is model TFT-H020A6QVIST6N10. For modules of the same size but different display ratios, we also provide HTM-H020A05-SPI-V0 for user reference. All products from Hot Display are ROHS compliant.
