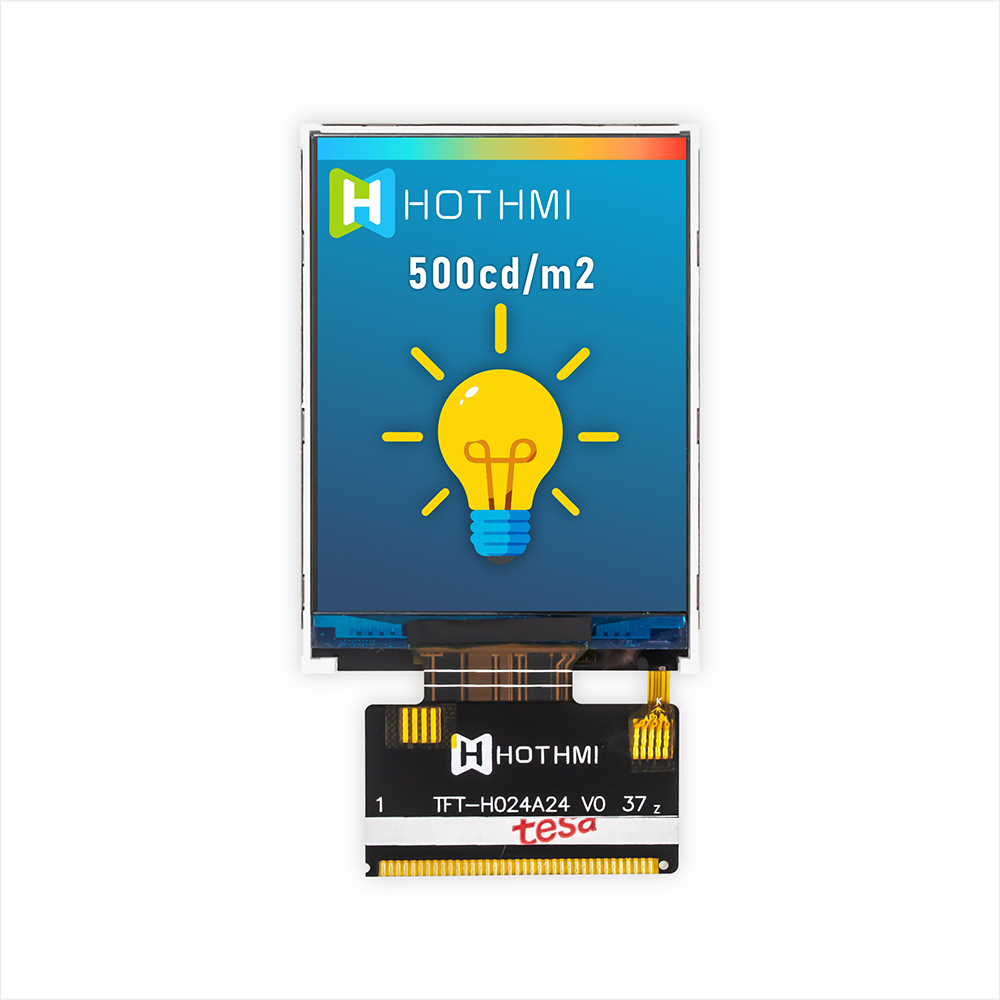

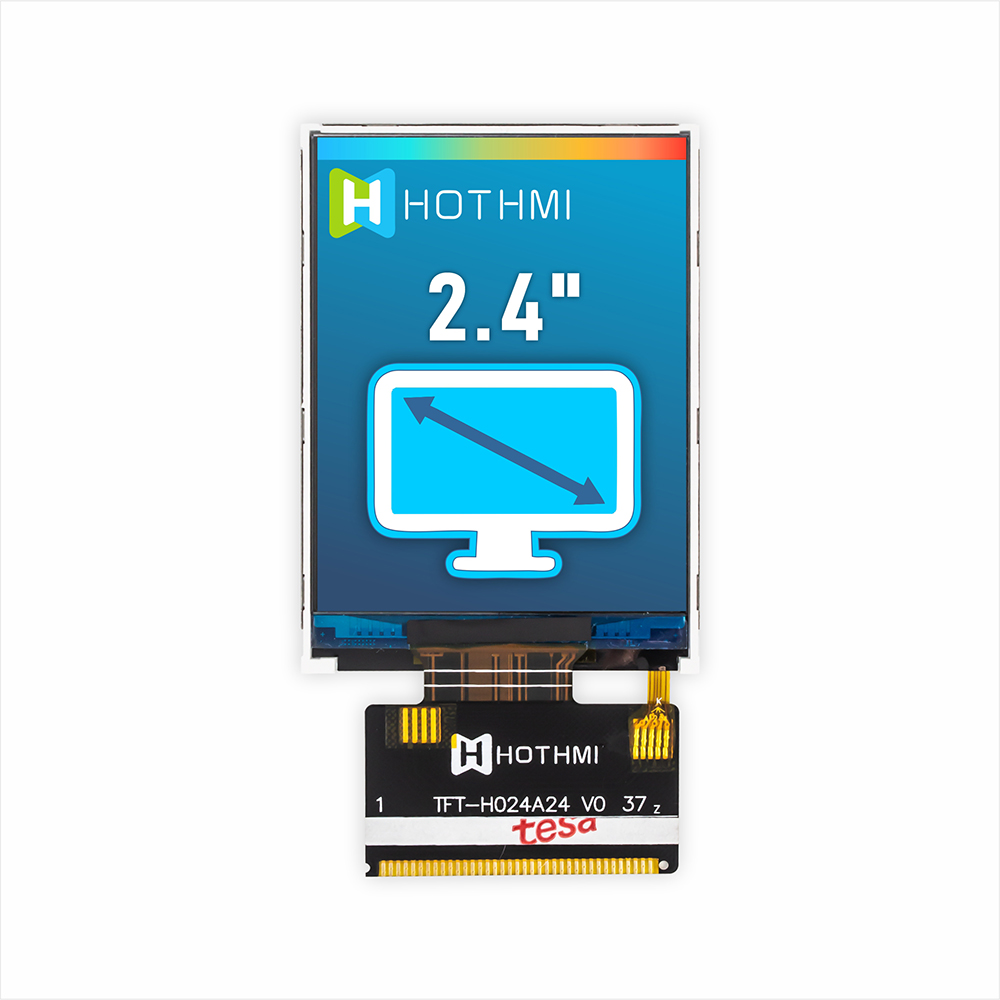

2.4 Inch 240x320 Resolution TFT LCD Display Module

2.4 Inch 240x320 Resolution TFT LCD Display Module - ST7789 Controller

▶ Model: TFT-H024A24QVTST3N37

▶ Type: 2.4 inch color TFT display
▶ Display pixels: 240x320
▶ Dimensions (mm): 42.72x60.26x2.5
▶ Display inches: 2.4"
▶ AA size (mm): 36.72x48.96
▶ Application: industrial control systems, handheld electronic devices,
▶ Viewing angle: U40/D20/L45/R45
▶ Backlight/brightness: 350cd/m2
▶ Pin: FPC-37 pin
▶ Interface mode: MCU

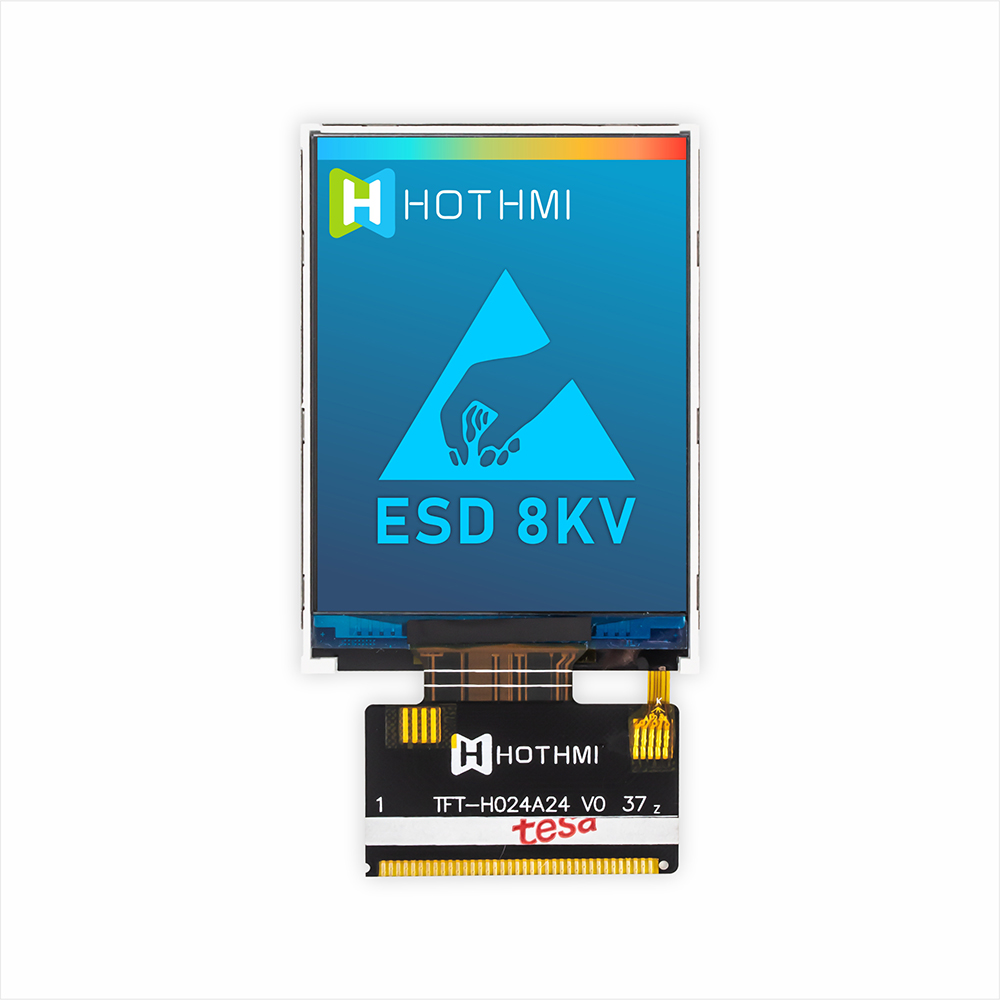

▶ Special instructions: Anti-static ESD 8KV
▶ Operating temperature: -20~70℃
▶ Supply voltage: 3.3V

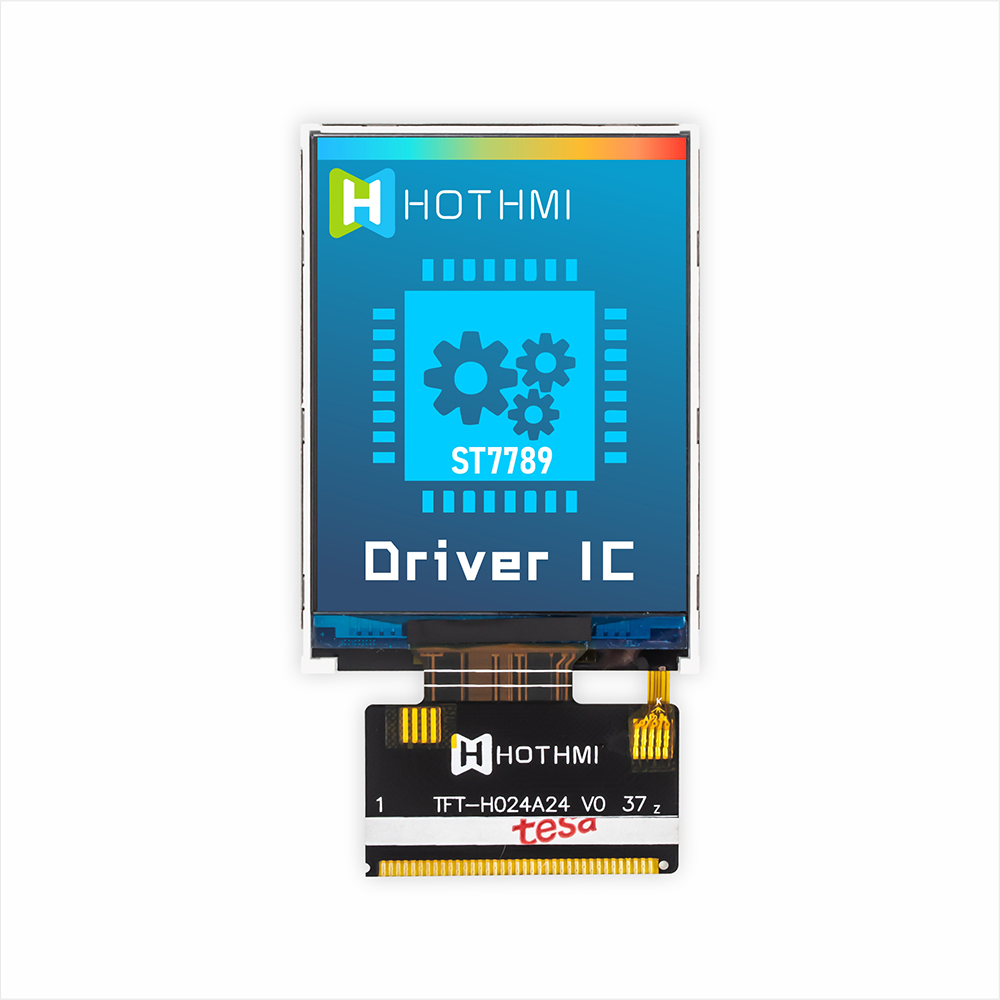

▶ Driver chip: ST7789

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Prev Back Next

Related Accessories

EZUI-Let driver board/MCU/SPI (general purpose below 480*320)
typ-c data cable T-port charging data cable/COB adapter board/COG adapter board
USB data cable T-port charging data cable/serial screen/adapter board
EZUI-H Main Control Board-RGB/MCU (Universal for 800*480 and below)
Full-function test development PCB-Bluetooth-WIFI-UART-CAN-LVGL-RS485

Product Description
Customized Services
Attributes

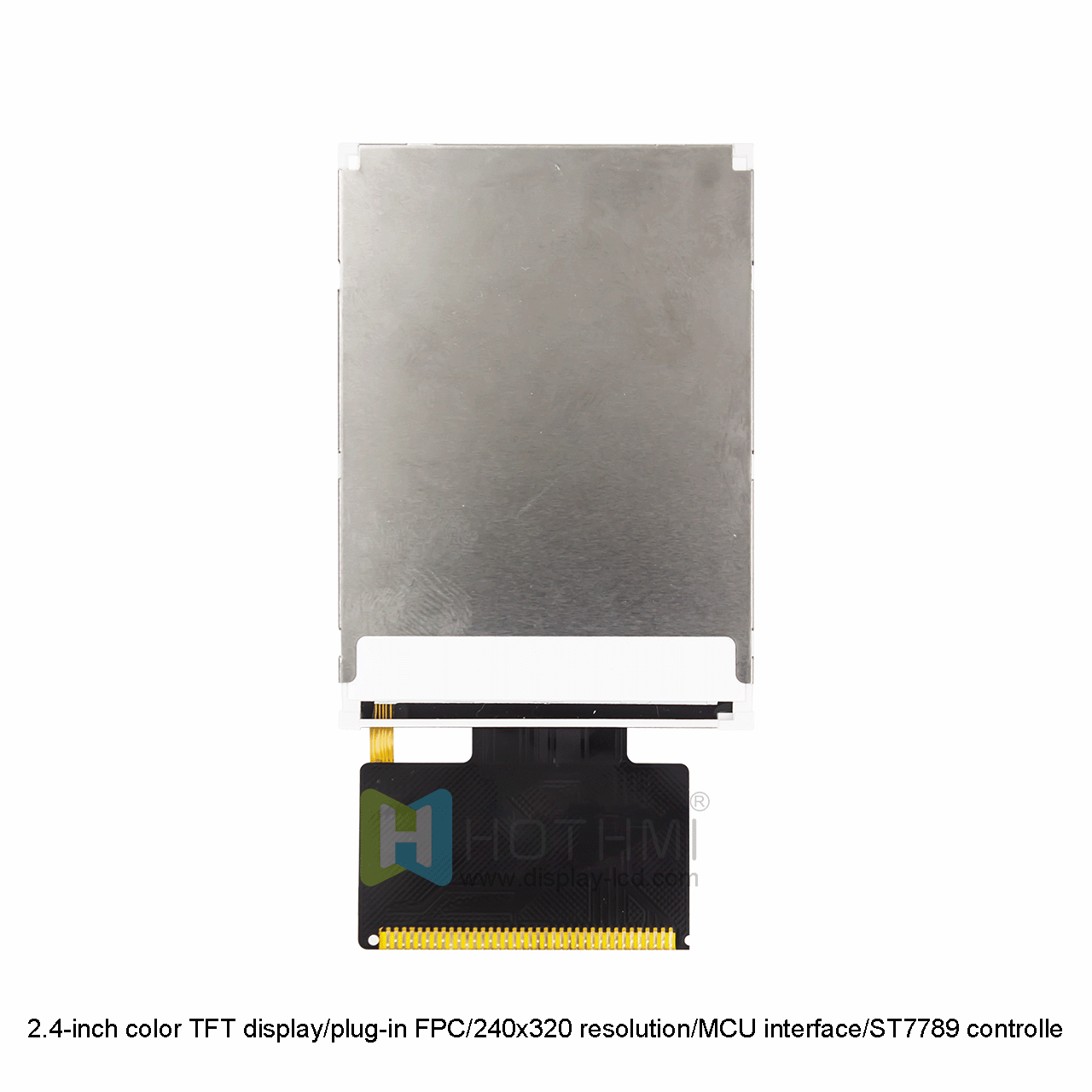

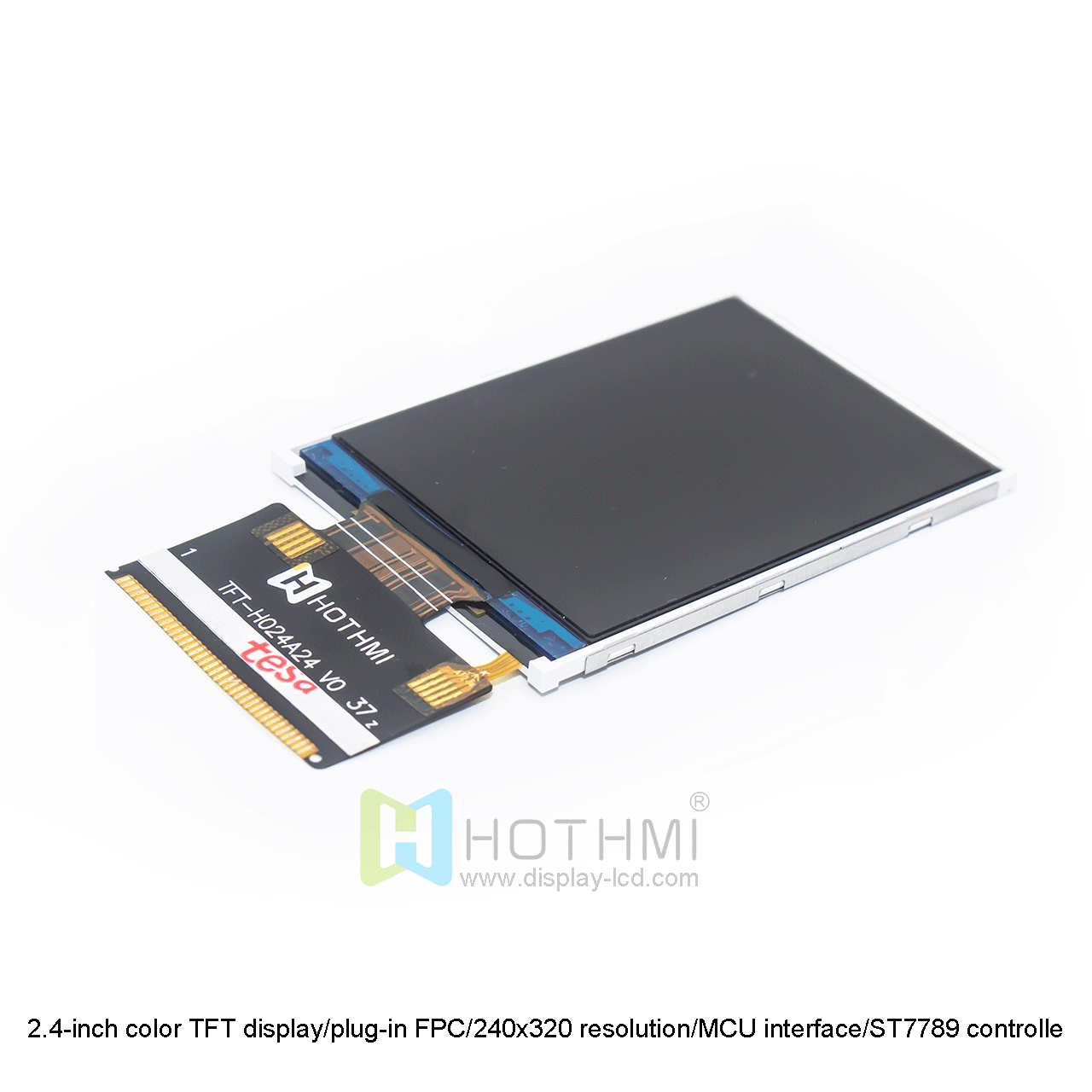

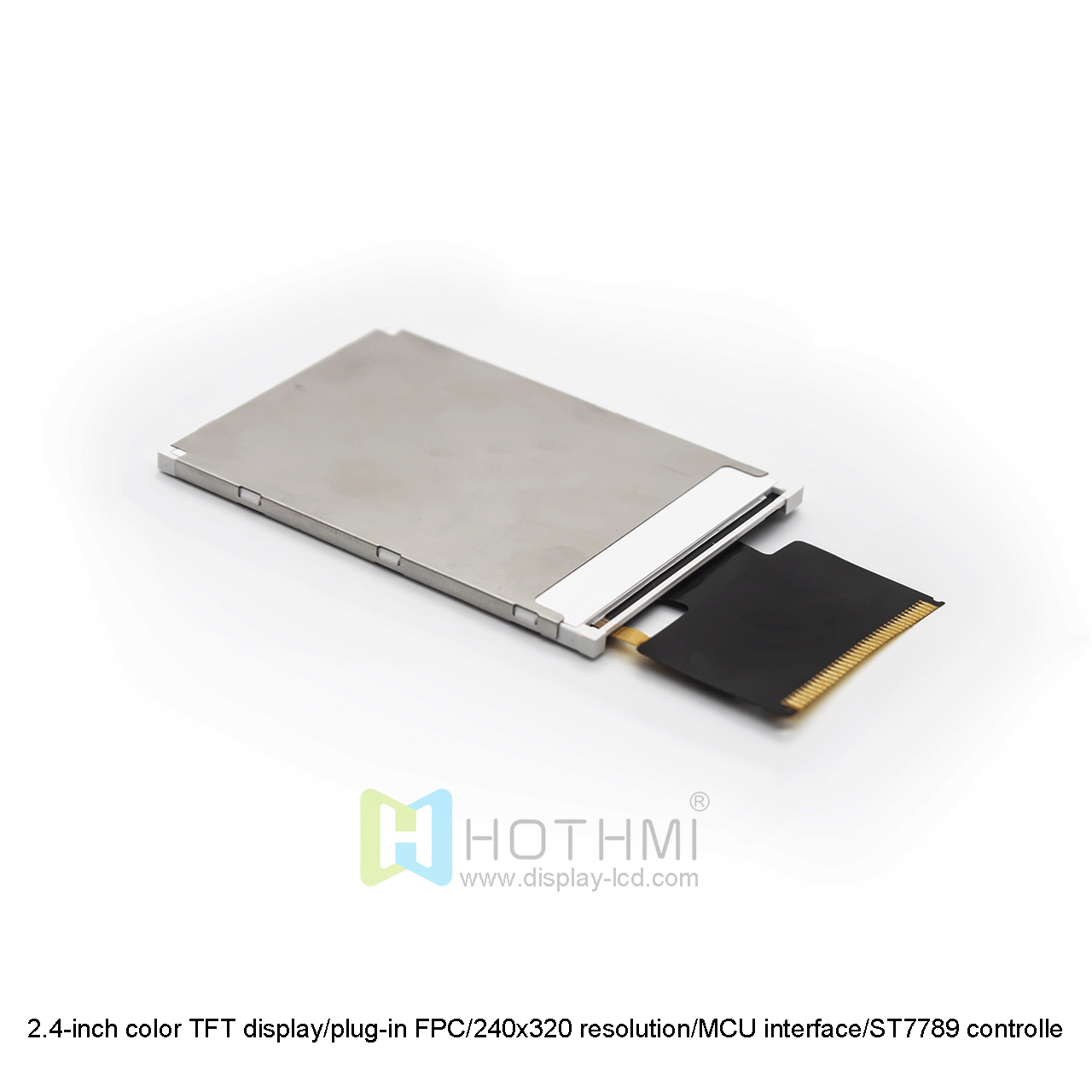

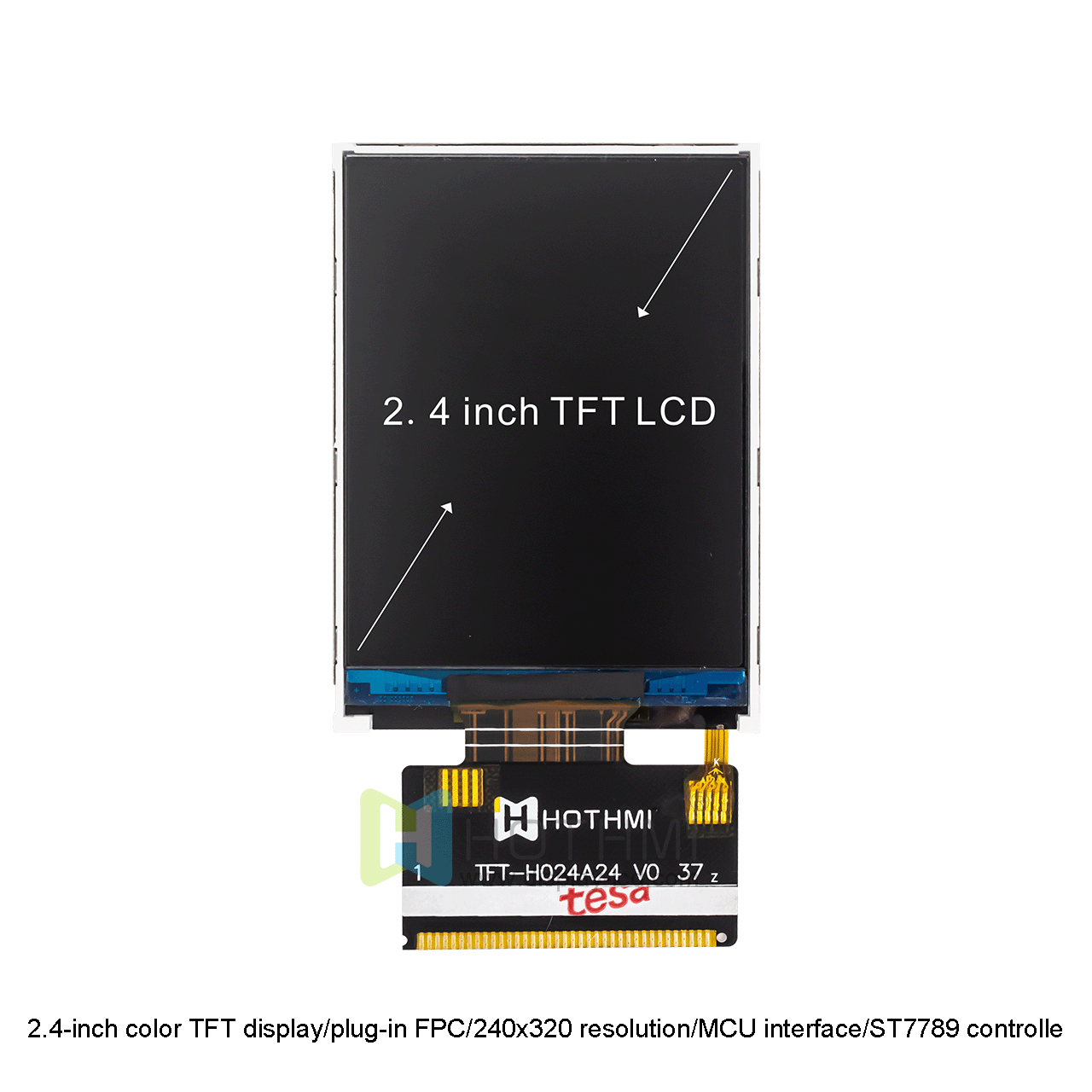

TFT-H024A24QVTST3N37 | 2.4-inch 240x320 resolution TFT LCD Display Module | ST7789 controller | IPS full viewing Angle

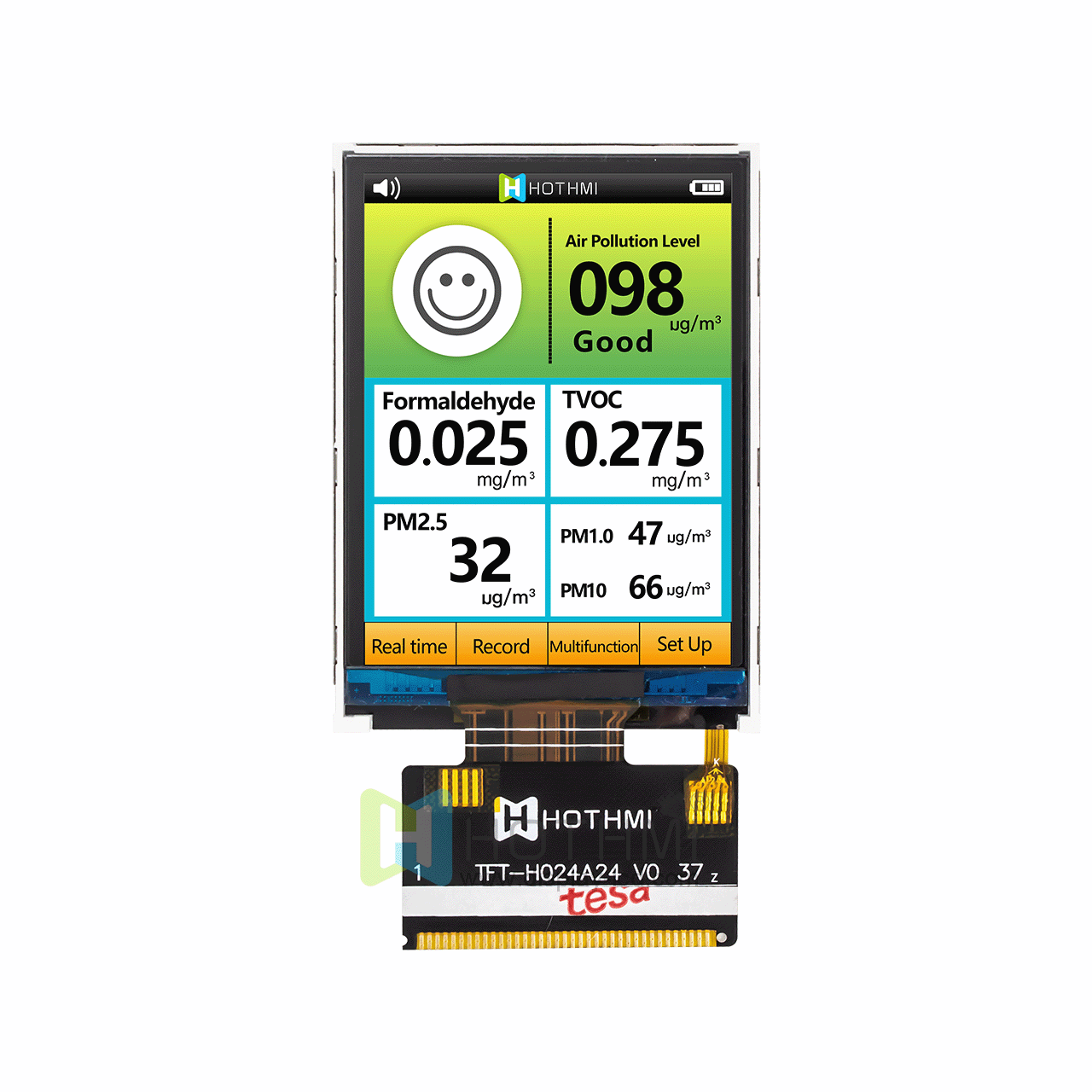

This 2.4-inch 240x320 resolution TFT LCD display features a standard LED backlight with a brightness of 350 nits, offering moderate brightness. Its IPS full-viewing angle ensures excellent viewing from any angle. This transmissive LCD requires a 2.8-3.3V power supply and includes an MCU interface. It features an ST7789 controller and is compatible with Arduino/C8051 platforms.

This model utilizes a flexible FPC cable for easy connection and removal. The integrated protective rubber frame ensures enhanced module stability. This display offers excellent value for money and is suitable for end-product applications in industries including industrial control panels, acreage meters, consumer products, and home appliances. Our displays are RoHS-compliant and adhere to strict environmental and safety standards.

Datasheet for Touch Panel,Controller↓

Name	Date	Size
TFT-H024A24QVTST3N37	November 11, 2024	122.03KB

Customized Cables/FPCs: Adjust cable length, position, and pinout, or add additional connectors to suit your needs. Get precisely engineered cable solutions to make your connections more streamlined and secure.

Touchscreen: Enhance your user experience with capacitive or resistive touchscreen technology. We can adjust the glass thickness or shape of the touchscreen to ensure a perfect fit for your design.

Interface Customization: Choose from a variety of interface options or speak with our experts to select the interface option that best suits your project. We can integrate interfaces such as HI, USB, SPI, VGA, etc. into your display to achieve your design goals.

Cover Glass: Custom-cut cover glass for your display for increased durability. Cover glass is available in a variety of thicknesses and optically bonded to protect against moisture and debris.Optional surface treatment: AF (anti-fingerprint oil) / AG (anti-glare) / AR (anti-reflection).

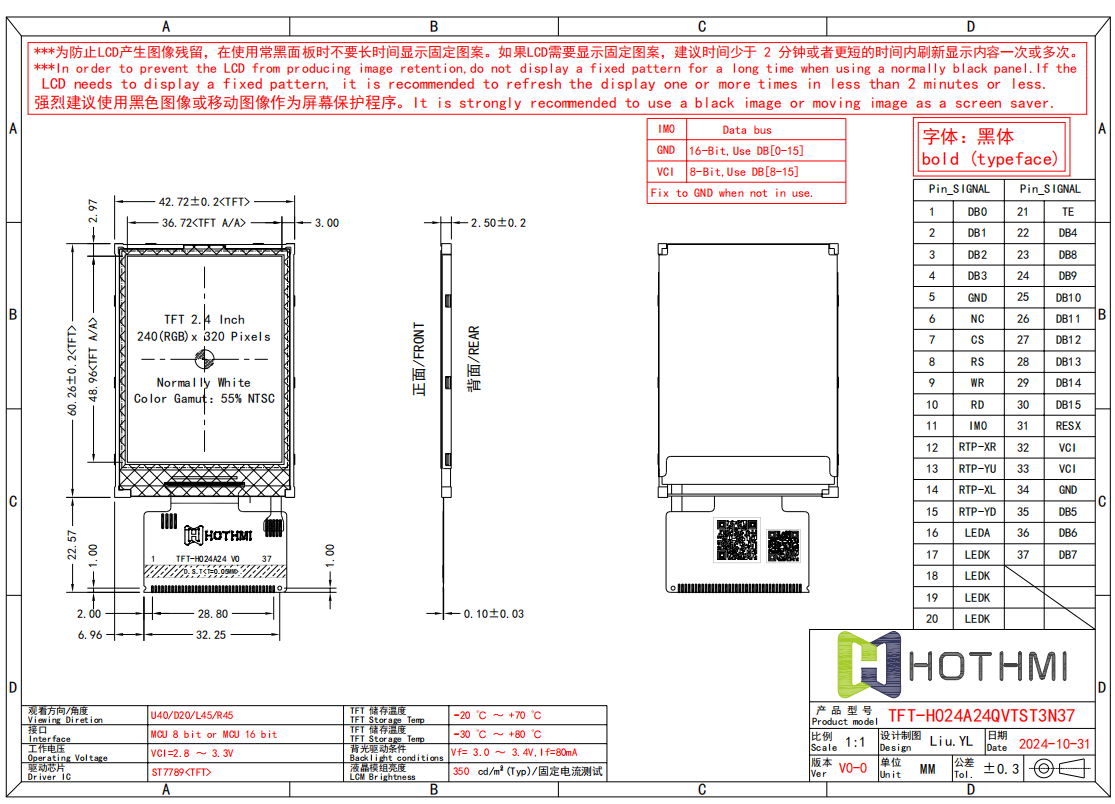

ITEM	PARAMETER DESCRIPTION	UNIT
TFT series	TFT-H024A24QVTST3N37
Diagonal size	2.4”	Inch
Resolution	240X320	Dot
Dimensions	42.72x60.26x2.5	mm
Active area (AA)	36.72X48.96	mm
LCD type	TFT LCD Display	mm
Display viewing angle	Full View
Aspect ratio	1:1.1
Backlight type	LED white
TFT driver IC	ST7789
Brightness	350	cd/m2
Operating temperature	-20~70℃	℃
Storage temperature	-30~80℃	℃
